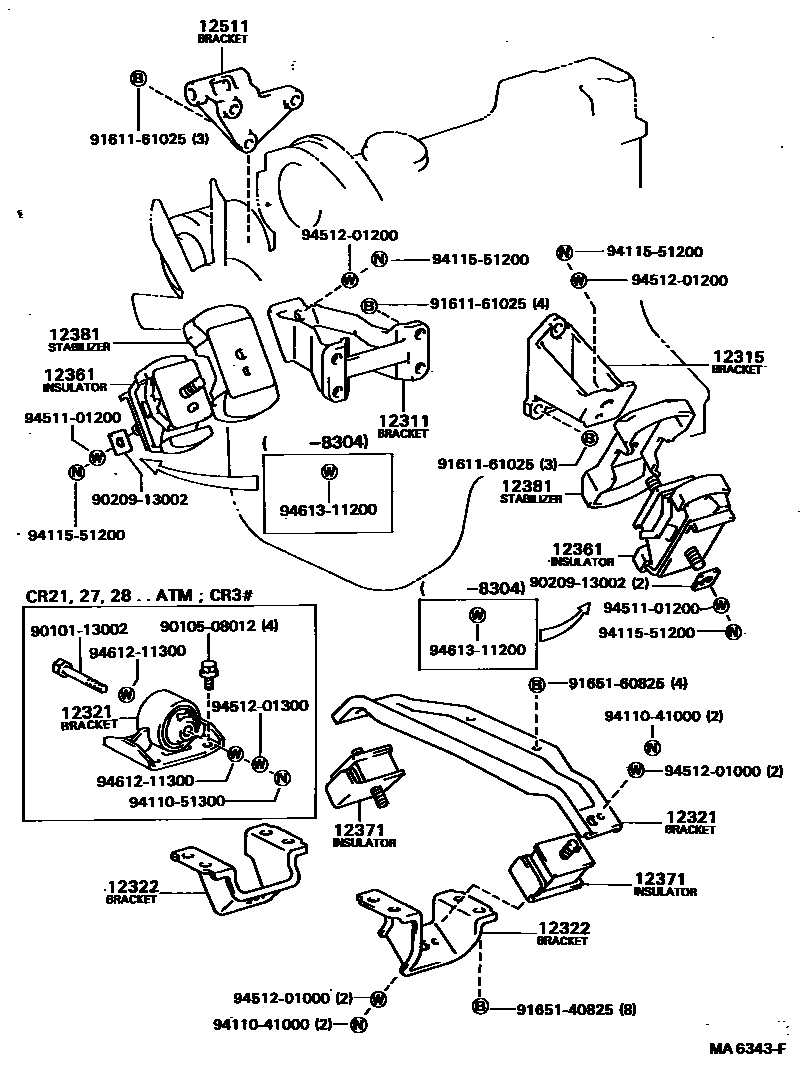

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-13090i4KJ..KR26198211-198808

main12311-64020i1C,2C..CR2#198211-198508

main12311-64060i1C,2C#..CR2#,3#198508-198808

main12311-71010i1YJ,2YU,3YEU..YR2#,3#198211-198808

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-13090i4KJ..KR26198211-198308

main12302-13091i4KJ..KR26198308-198808

main12315-64020i1C,2C#..CR2#,3#198211-198808

main12315-71010i1YJ,2YU,3YEU..YR2#,3#198211-198808

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12303-54010i2C#..CR3#; 3YEU..YR3#198604-198808

main12303-64020i2C#..CR3#; 3YEU..YR30198510-198604

main12303-71010i1YJ,2YU,3YEU..YR2#..4FC; 2C#..CR21,27,28..4FC198211-198808

main12321-13030i4KJ..KR26198211-198808

main12321-64010i1C,2C#..CR21,26,28..5F198211-198808

main12321-71020i1YJ,2YU,3YEU..YR2#..MTM198211-198808

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-13030i1C,2C#..CR21,26,28..5F; 1YJ,2YU,3YEU..YR2#..MTM; 4KJ..KR26198211-198808

RH

main12326-13010i1C,2C#..CR21,26,28..5F; 1YJ,2YU,3YEU..YR2#..MTM; 4KJ..KR26198211-198808

LH

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-38120×2i1YJ,2YU,3YEU..YR2#198211-198508

MARUYASU

main12361-38130×2i1YJ,2YU,3YEU..YR2#198211-198508

TOYO GOMU

main12361-64022×2i1C,2C#..CR2#,3#198211-198808

main12361-71020×2i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198508-198808

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-13051×2i1C,2C#..CR21,26,28..5F; 1YJ,2YU,3YEU..YR2#..MTM; 4KJ..KR26198211-198808

12381STABILIZER, ENGINE MOUNTING

main12381-64010×2i1C,2C#..CR2#,3#198211-198808

main12381-71020×2i1YJ,2YU,3YEU..YR2#198211-198308

main12381-71030×2i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198508-198808

main12381-73010×2i1YJ,2YU,3YEU..YR2#198308-198508

12511BRACKET, ALTERNATOR, NO.1

main12501-73010i3YEU..YR21198305-198505

main12501-73011i3YEU..YR21198505-198508

main12511-24011i4KJ..KR26198211-198808

main12511-64011i1C,2C..CR2#198211-198508

main12511-64030i1C,2C#..CR2#,3#198508-198808

main12511-71010i1YJ,2YU..YR20,26198211-198508

9010113002

main90101-13002

9010508012

main90105-08012

9020913002

main90209-13002

9161161025

main91611-61025

9165140825

main91651-40825

9165160825

main91651-60825

9411041000

main94110-41000

9411051300

main94110-51300

9411551200

main94115-51200

9451101200

main94511-01200

9451201000

main94512-01000

9451201200

main94512-01200

9451201300

main94512-01300

9461211300

main94612-11300

9461311200

main94613-11200

23 parts on this diagram · 3 diagrams in section
