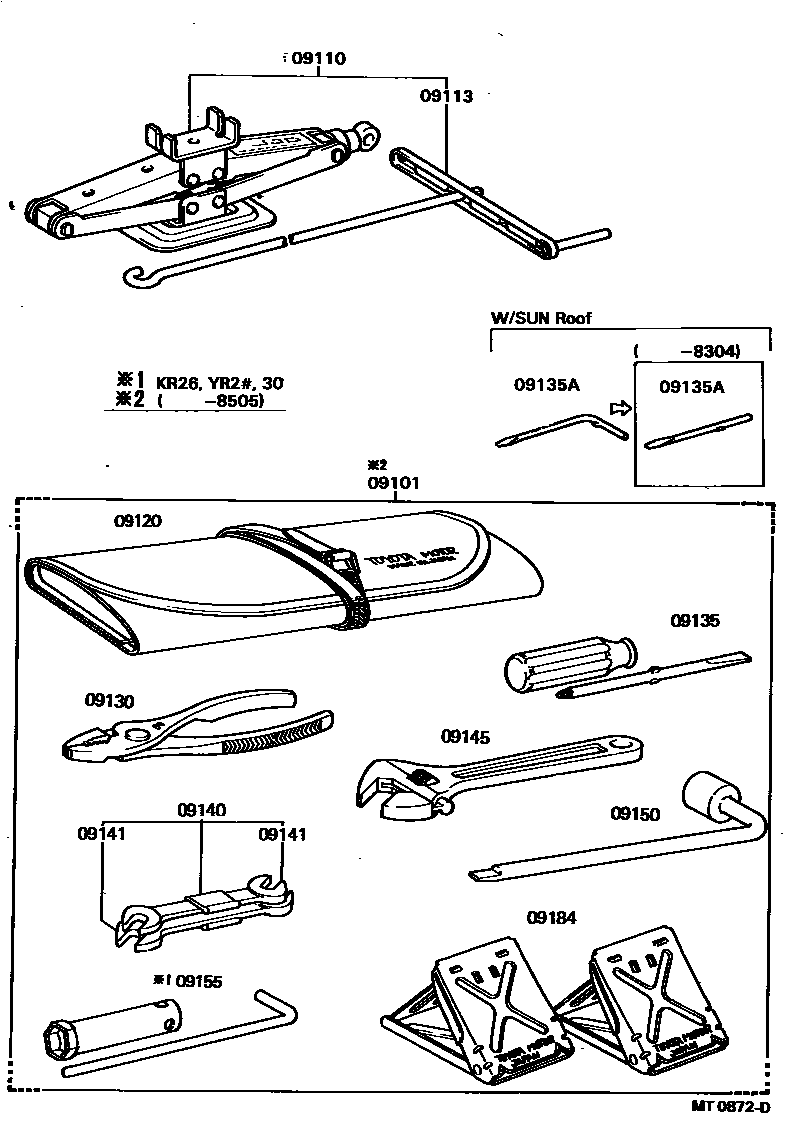

STANDARD TOOL

0001 1 0002 1

09101TOOL SET, STANDARD W/O JACK

main09101-26160iCR21,26198211-198505

main09101-26162iKR26198211-198505

main09101-26163iYR2#198211-198505

09110JACK ASSY

main09110-27040iCR2#,KR26,YR2#198211-198509

main09111-27040iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198509-198601

main09111-28020iCR3#,YR30198510-198601

main09111-28030iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,30,36,KR26,YR21,26,28,3#198606-198808

09113HANDLE, JACK

main09113-13021iCR2#,KR26,YR2#198211-198509

09120BAG, TOOL

main09120-26021iCR2#,KR26,YR2#198211-198509

main09120-28010iCR30,36,YR3#198510-198808

09130PLIERS

main99913-11500iCR2#,30,36,KR26,YR2#,3#198211-198808

09135DRIVER, SCREW

main99915-10700iCR2#,30,36,KR26,YR2#,3#198211-198808

09135ABIT, SCREW DRIVER

main09135-00011iYR20..E,Q,X198211-198304

W/SUN ROOF

main09135-00012iCR21,YR20,21..HRF..(E,Q)198508-198808

W/SUN ROOF

09140SPANNER SET

main09140-27010iCR2#,3#,KR26,YR2#,30198211-198608

09141SPANNER

main99914-10810iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,30,36,KR26,YR21,26,28,3#198608-198808

main99914-11012iCR2#,3#,KR26,YR2#,30198211-198608

main99914-11214iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,30,36,KR26,YR21,26,28,3#198608-198808

main99914-11417iCR2#,3#,KR26,YR2#,30198211-198608

09145WRENCH, MONKEY

main99911-10200iCR2#,3#,KR26,YR2#,30198211-198605

main99911-11200iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198605-198708

09150WRENCH, HUB NUT BOX

main09150-35020iCR2#,30,36,KR26,YR2#,3#198211-198808

09155WRENCH, SPARK PLUG

main09155-41010iYR26198608-198808

main09155-44010iKR26198211-198808

09184STOPPER, WHEEL

main09184-00010×2iCR2#,30,36,KR26,YR2#,3#198211-198808

13 parts on this diagram · 2 diagrams in section
