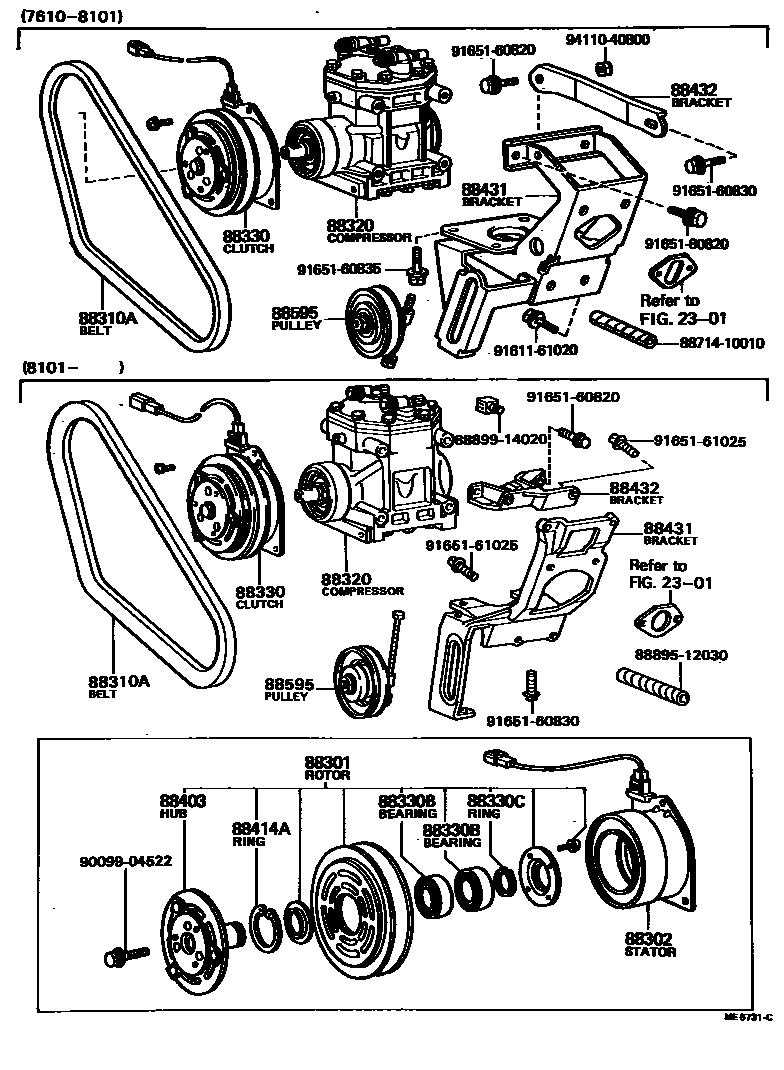

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

2301FUEL PUMP & PIPE

→ Go to FIG 23-01

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88401-14040iTR1#197610-197708

main88401-14060iKR12,TR11197910-198210

main88401-20050iKR1#197610-197910

main88401-20060iRR1#,2#197808-198210

main88401-36070iTR10,11197708-197906

main88412-12040iTR15197808-198210

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12050iKR12197910-198210

main88411-20060iKR1#197610-197910

main88411-20070iRR1#,2#197808-198210

main88411-22040iTR15197808-198210

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00950iKR12197910-198210

main99322-00980iTR15198101-198210

main99322-00990iRR1#,2#197808-198210

main99322-01000iTR10,11197708-198210

main99322-01010iTR15197808-198210

W/TWIN COOLER,W/*ODAC

main99522-10976iKR10197610-197802

main99522-11002iTR1#197610-197708

88320COMPRESSOR ASSY, COOLER

main88320-22110iTR10,11197610-198101

main88320-22180iTR15197808-197812

main88320-26030iRR1#,2#197808-198101

main88320-27020iTR11198101-198210

main88320-28010iKR12198101-198210

main88320-28020iTR15198101-198210

main88320-87001iKR1#197610-197910

main88320-87002iTR15197812-198101

88330CLUTCH ASSY, MAGNET

main88410-14050iTR10,11197610-198210

main88410-20071iKR1#197610-197910

main88410-20090iRR1#,2#197808-198210

main88410-22060iTR15197808-198210

88330BBEARING, MAGNET CLUTCH

main90099-10083×2iKR1#,RR1#,2#,TR10,11197610-198210

main90099-10117×2iTR15197808-198210

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90096-90007iKR10,TR10197610-197708

main90096-90015iKR1#,TR10,11197708-198210

main90099-07094iTR15197808-198210

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12020iKR1#197610-197910

main88403-20031iTR10,11197610-198210

main88403-26030iTR15197808-198210

88414ARING, SHIELD SNAP

main90096-90005iKR1#,RR1#,2#,TR10,11197610-198210

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12042iKR1#197610-197910

main88431-27010iKR12197910-198210

main88431-27020iTR15197910-198210

main88431-28020iRR1#,2#197808-198210

main88431-28040iTR11198101-198210

main88431-87001iTR10,11197610-198101

main88431-87002iTR15197808-197910

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88431-28010iRR1#,2#197808-198210

main88437-12042iKR10197610-197802

main88437-27010iKR12197910-198210

main88437-27020iTR15197910-198210

main88437-28010iTR11197910-198101

main88437-87001iKR11197802-197910

main88437-87002iTR15197812-197910

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12030iKR1#,TR15197610-197910

main88440-25010iTR11197910-198210

main88440-27010iKR12197910-198210

main88440-27020iTR15197910-198210

main88440-28010iRR10,20197808-197911

main88440-28020iRR11,21197911-198210

main88440-30250iTR10,11197610-197910

8871410010HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-10010

8889512030HOLDER, FUSE

main88895-12030

8889914020COVER, EVAPORATOR

main88899-14020

9009904522

main90099-04522

9161161020

main91611-61020

9165160820

main91651-60820

9165160830

main91651-60830

9165160835

main91651-60835

9165161025

main91651-61025

9411040800

main94110-40800

23 parts on this diagram · 5 diagrams in section
