MIRROR

0001 1 0002 1 0003 1

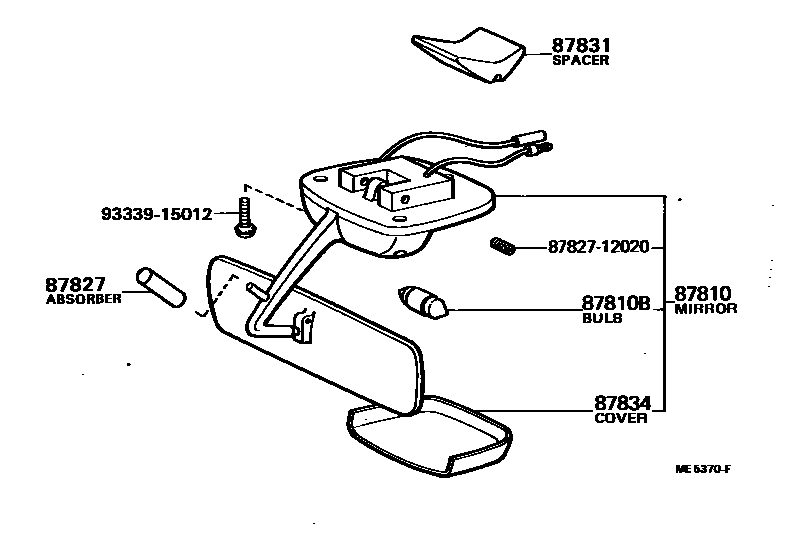

87810MIRROR ASSY, INNER REAR VIEW

main87810-87001-03iKR1#,TR1#..CTM,DLX,STD197610-197910

GRAY,GRAY

main87810-87001-06iKR1#,TR1#..CTM,DLX,STD197610-197910

LIGHT BROWN,BROWN

main87810-87002iTR15..CTM,SUE197910-198101

main87810-87003iKR12,TR1#..DLX,HDX,STD198101-198210

main87810-87004iTR15..CNP,CTM,GEX,SUE198101-198210

main87810-87102iTR15..CEX197808-197910

main87810-95D00iRR1#,2#197808-198101

main87810-95D01iRR11,21198101-198210

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-12100iTR15..CEX197808-197910

main99132-13050iKR1#,RR10,20,TR1#..CTM,DLX,STD197610-197910

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-23010iRR11,21198101-198210

L=405

main87828-30010iRR11,21198101-198210

L=45

main87828-87001iKR12,TR1#..DLX,HDX,STD198101-198210

L=41

main87828-87002iTR15..CNP,CTM,GEX,SUE198101-198210

L=32

main87828-87003iKR12,TR1#..DLX,HDX,STD198101-198210

L=44

main87828-87004iTR15..CNP,CTM,GEX,SUE198101-198210

L=35

main87828-87005iKR12,TR1#..DLX,HDX,STD198101-198210

L=49

main87828-87006iTR15..CNP,CTM,GEX,SUE198101-198210

L=39

87831SPACER (FOR INSIDE MIRROR)

main87831-95010iRR1#,2#197808-198105

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87814-12020iKR1#,RR10,20,TR1#..CTM,DLX,STD197610-197910

8782712020ABSORBER, INNER REAR VIEW MIRROR

main87827-12020

9333915012

main93339-15012

7 parts on this diagram · 3 diagrams in section
