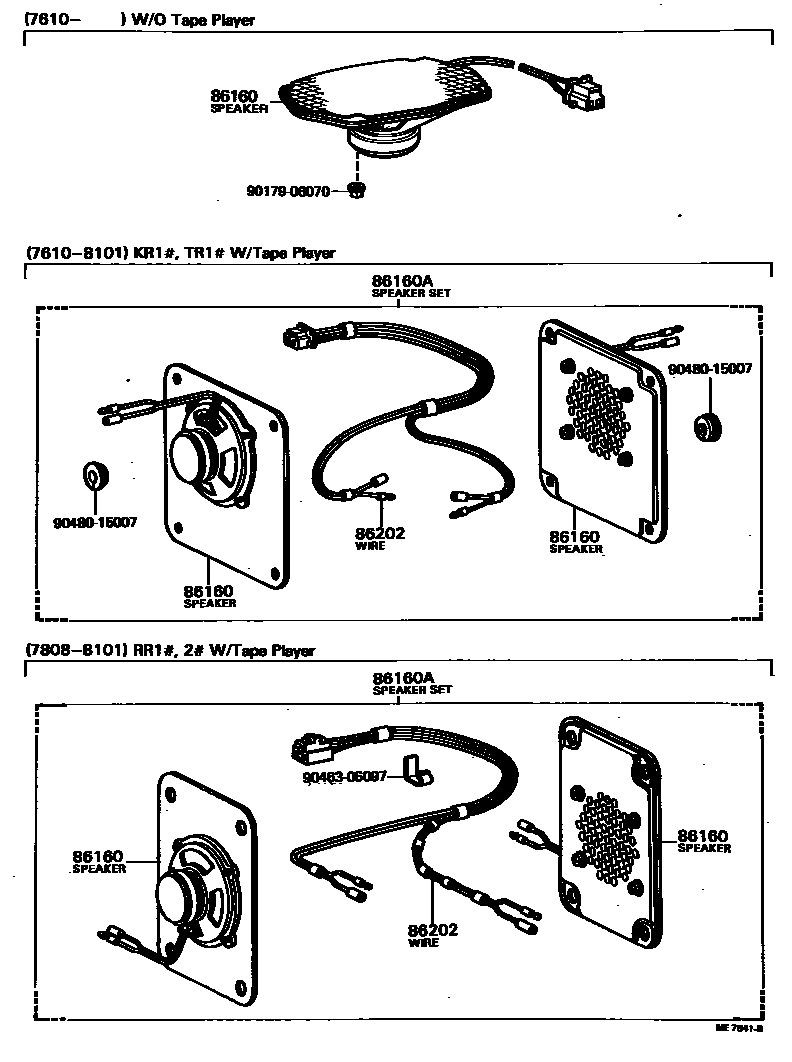

SPEAKER

0001 1 0002 1 0003 1 0004 1

86160SPEAKER ASSY, FRONT NO.1

main86150-87002×2iKR1#,TR1#197610-198101

W/TAPE PLAYER

main86150-95D01×2iRR1#,2#197808-198101

W/TAPE PLAYER

main86160-10023iKR1#,TR1#197610-197808

main86160-87001iKR1#,RR1#,2#,TR1#197808-198210

main86160-87006×2iKR12,RR11,21,TR1#198101-198210

W/FM STEREO OR TAPE PLAYER

86160ASPEAKER SET, FRONT

main86150-29145iRR1#,2#197808-198101

main86150-29155iKR11,TR1#197808-198101

main86160-29345iKR12,RR11,21,TR1#198101-198210

86202WIRE, SPEAKER, NO.1

main86202-87001iKR1#,TR1#197610-198101

main86202-87010×2iKR12,RR11,21,TR1#198101-198210

main86202-95D00iRR1#,2#197808-198101

9017906070

main90179-06070

9046306097

main90463-06097

9048015007

main90480-15007

6 parts on this diagram · 4 diagrams in section
