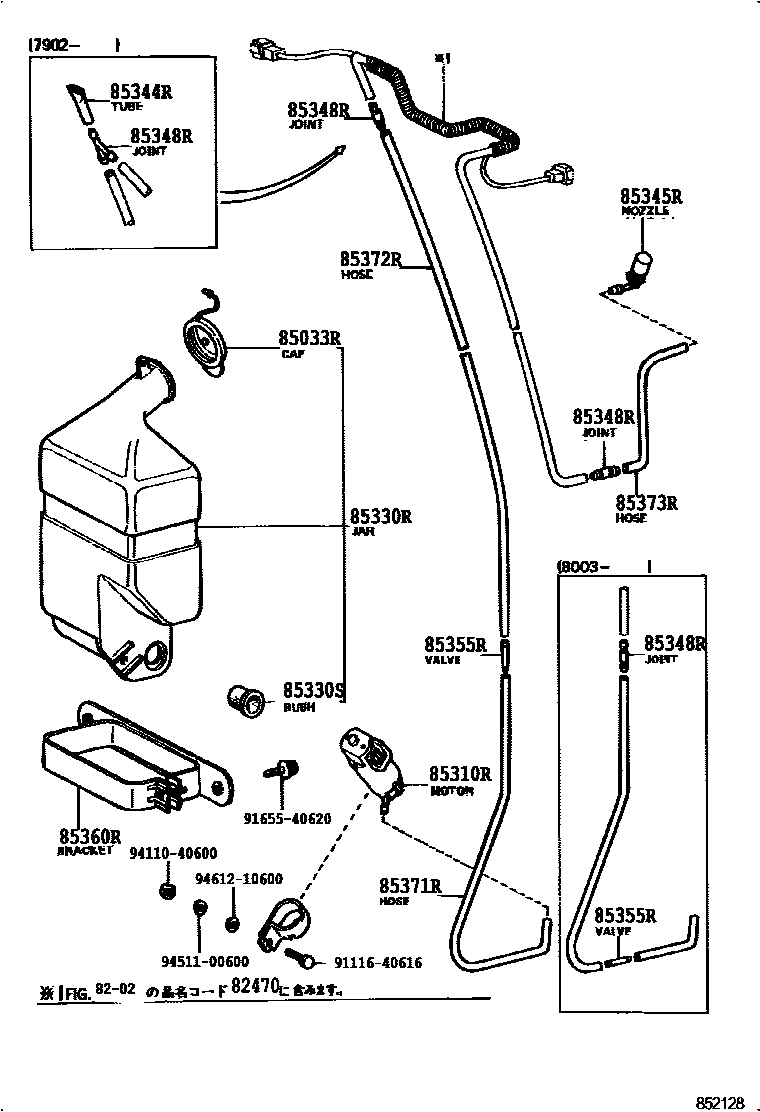

REAR WASHER

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85033-36120iTR15;KR12,TR11..DLX,HDX198101-198210

85310RMOTOR ASSY, REAR WASHER

main85310-20100iTR15;TR11..HDX197808-198101

85330RJAR ASSY, REAR WASHER

main85330-23011iTR15;TR11..HDX197808-198101

85330SBUSH, REAR WASHER JAR

main90099-32089iTR15;KR12,TR11..DLX,HDX198101-198210

85344RTUBE, REAR WASHER STOP

main85344-30010iTR15;TR11..HDX197902-198101

85345RNOZZLE, REAR WASHER

main85035-87004iTR15;TR11..HDX197808-198101

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-14010iTR15;KR12,TR11..DLX,HDX198101-198210

3-WAY

main85355-87201×2iTR15;TR11..HDX197902-198101

2-WAY

85355RVALVE, REAR WASHER HOSE

main85031-14010iTR15;TR11..HDX197808-198101

main85031-30010iTR11..5F;KR12..DLX,HDX;TR1#..CNP,CTM,DLX,GEX,STD,SUE198202-198210

85360RBRACKET ASSY, REAR WASHER

main85360-87001iTR15;TR11..HDX197808-198101

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33319iTR15;TR11..HDX197808-198101

L=350

main90446-06013iTR15;KR12,TR11..DLX,HDX198101-198210

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90446-06205iTR15;TR11..HDX197808-198101

L=1200

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33323iTR15;TR11..HDX197808-198101

9111640616

main91116-40616

9165540620

main91655-40620

9411040600

main94110-40600

9451100600

main94511-00600

9461210600

main94612-10600

18 parts on this diagram · 1 diagram in section
