METER

0001 1 0002 1 0003 1

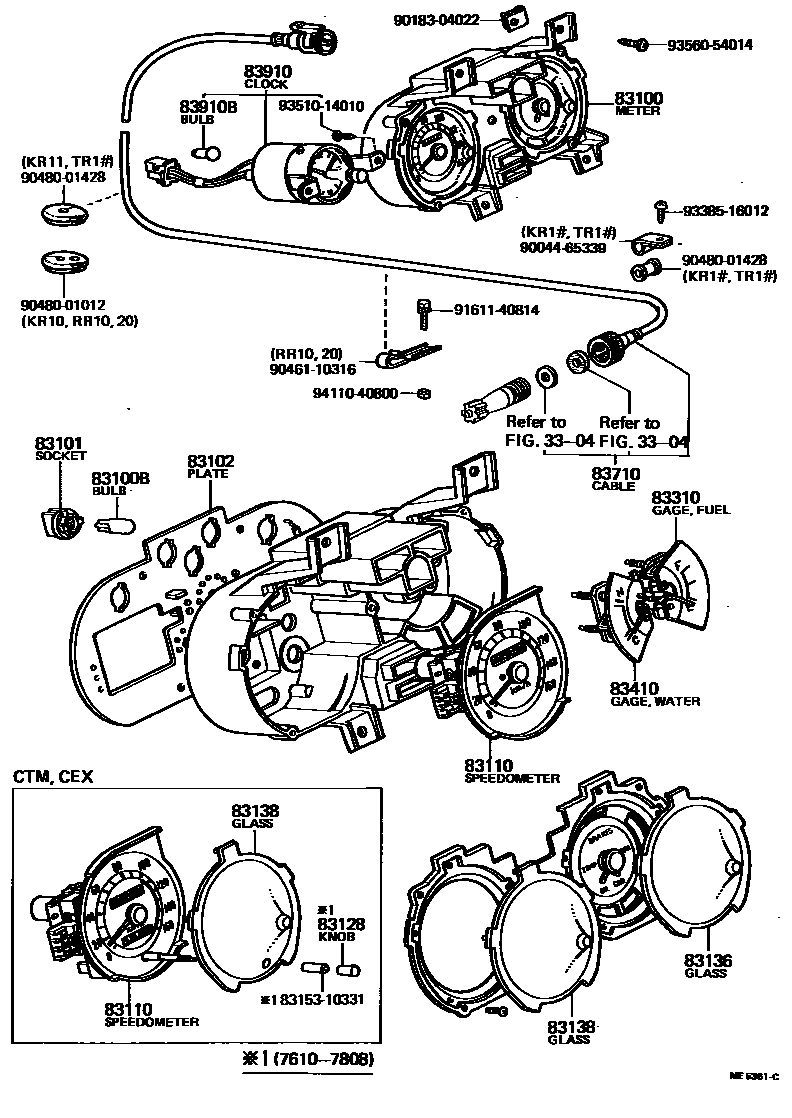

3304SPEEDOMETER DRIVEN GEAR (MTM)

→ Go to FIG 33-04

83100METER ASSY, COMBINATION

main83100-87002iKR1#,RR10,20,TR10197610-197910

main83100-87003iTR11..DLX,STD197610-197808

main83100-87004iTR11..CTM197610-197808

main83100-87005iTR15..DLX,STD197808-197910

main83100-87006iTR15..CTM,SUE197808-197910

83100BBULB, COMBINATION METER, NO.1

main99132-12034×13iKR1#,RR1#,2#,TR1#197610-198210

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-10010×8iKR1#,RR10,20,TR1#197610-197910

main83101-12020iTR15197808-197910

(HAIKION)

main83101-14030×13iKR12,RR11,21,TR1#197910-198210

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-87001iRR10,20,TR11197610-197910

main83102-87002iKR1#,TR10197610-197910

main83102-87003iTR15197808-197910

main83102-87004iKR12,RR11,21,TR11197910-198101

main83102-87005iTR15..CTM,DLX,STD197910-198101

main83102-87006iTR15..CEX197910-198101

main83102-87007iTR15..CNP,CTM,DLX,STD198101-198210

main83102-87009iTR15..GEX,SUE198101-198210

main83102-87010iKR12,RR11,21,TR11198101-198210

83110SPEEDOMETER ASSY

main83110-87002iKR1#,RR10,20,TR10,15..DLX,STD197610-197910

main83110-87003iTR11..DLX,STD197610-197808

main83110-87004iTR11..CTM197610-197808

main83110-87005iTR15..CTM,SUE197808-197910

main83110-87006iKR12,RR11,21,TR1#197910-198210

83128KNOB, TRIP COUNTER

main83128-10260iTR11..CTM197610-197808

main83128-87001iKR12,RR11,21,TR1#197910-198210

83136GLASS, GAGE METER

main83138-10290iKR1#,RR10,20,TR1#197610-197910

83138GLASS, SPEEDOMETER

main83138-10261iTR11..CTM197610-197808

main83138-10290iKR1#,RR10,20,TR1#..DLX,STD197610-197910

main83138-87001iTR15..CTM,SUE197808-197910

83310GAGE ASSY, FUEL RECEIVER

main83310-87001iKR1#,RR10,20,TR1#197610-197910

main83310-87002iKR12,RR11,21,TR1#197910-198101

main83310-87003iTR15..CNP,CTM198101-198210

main83310-87004iTR15..GEX,SUE198101-198210

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83410-87001iKR1#,RR10,20,TR1#197610-197910

main83410-87002iKR12,RR11,21,TR1#197910-198210

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-29455iKR1#,TR1#..MTM197610-198210

L=2950

main83710-29585iRR1#,2#197808-198210

L=2850

main83710-87002iTR15..3FC198101-198210

83910CLOCK ASSY

main83910-29055iKR1#,RR10,20,TR1#197610-197910

main83910-87002iKR12,RR11,21,TR1#197910-198006

main83910-87003iKR12,TR1#198006-198101

83910BBULB, CLOCK INDICATOR

main99132-11034iKR1#,RR10,20,TR1#197610-197910

8315310331GROMMET, METER GLASS

main83153-10331

9004465339

main90044-65339

9018304022

main90183-04022

9046110316

main90461-10316

9048001012

main90480-01012

9048001428

main90480-01428

9161140814

main91611-40814

9338516012

main93385-16012

9351014010

main93510-14010

9356054014

main93560-54014

9411040800

main94110-40800
