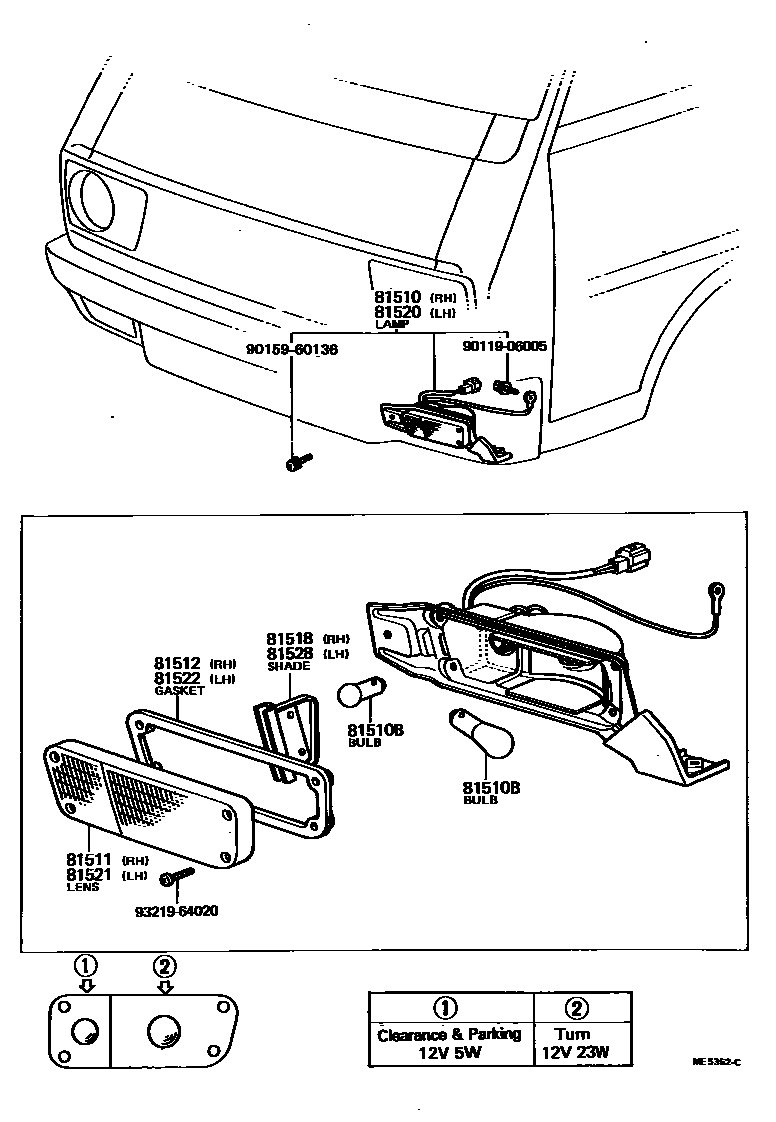

FRONT TURN SIGNAL LAMP

0001 1 0003 1 0005 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-29385iKR1#,RR10,20,TR1#197610-197910

main81510-29605iKR12,TR1#197910-198101

main81510-29695iTR15198101-198210

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11050×2iKR1#,RR1#,2#,TR1#197610-198101

main99132-11230×2iKR1#,RR1#,2#,TR1#197610-198210

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-87001iRR11,21197910-198210

main81511-87003iTR15198101-198210

main81511-87207iKR12,TR1#197910-198101

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14011iKR1#,RR10,20,TR1#197610-197910

main81512-87205iTR15198101-198210

main81552-87202iKR12,TR1#197910-198101

81518SHADE, FRONT TURN SIGNAL LAMP, RH

main81517-14010iKR1#,RR10,20,TR1#197610-197910

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81510-29695iTR15198101-198210

main81520-29385iKR1#,RR10,20,TR1#197610-197910

main81520-29605iKR12,TR1#197910-198101

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81511-87003iTR15198101-198210

main81521-87001iKR1#,RR10,20,TR1#197610-197910

main81521-87207iKR12,TR11198101-198210

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-87205iTR15198101-198210

main81522-14011iKR1#,RR10,20,TR1#197610-197910

main81552-87202iKR12,TR1#197910-198101

81528SHADE, FRONT TURN SIGNAL LAMP, LH

main81527-14010iKR1#,RR10,20,TR1#197610-197910

9011906005

main90119-06005

9015960136

main90159-60136

9321964020

main93219-64020

12 parts on this diagram · 3 diagrams in section
