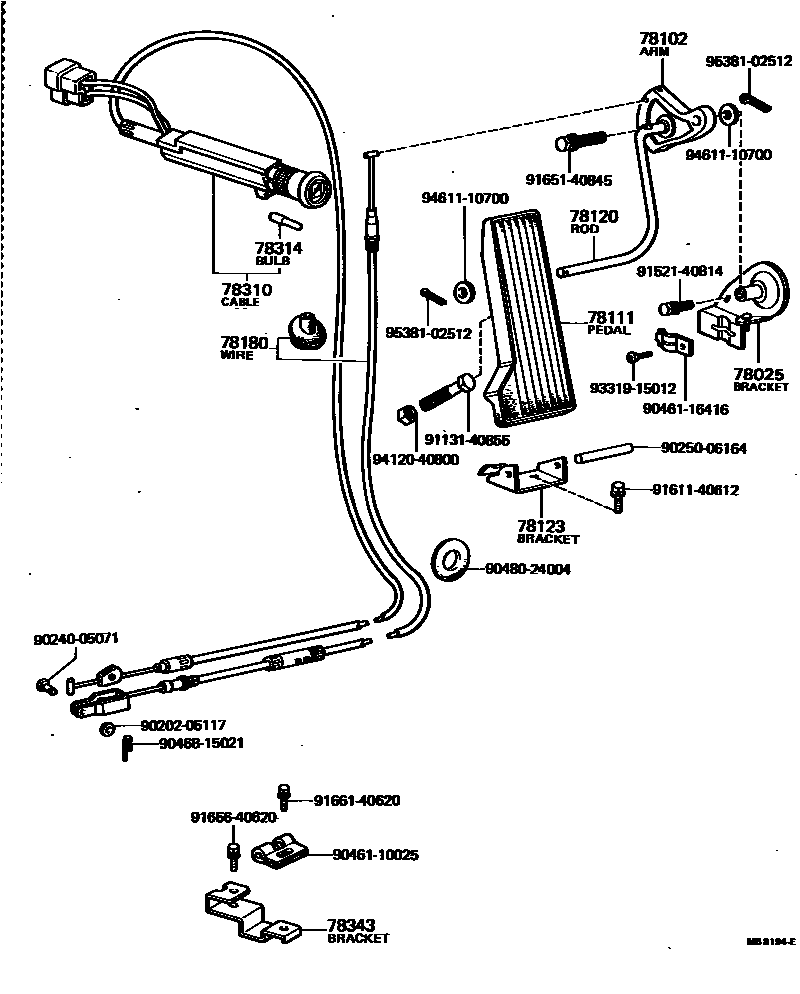

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78025BRACKET SUB-ASSY, ACCELERATOR CONNECTING ROD ARM

main78104-95702iKR1#,TR1#197610-197910

78102ARM SUB-ASSY, ACCELERATOR

main78117-96200iKR1#,TR1#197610-197910

78111PEDAL, ACCELERATOR

main78111-95700iKR1#,TR1#197610-197910

78120ROD, ACCELERATOR LINK

main78131-95701iKR1#,TR1#197610-197910

78123BRACKET, ACCELERATOR PEDAL SUPPORT

main78123-95400iKR1#,TR1#197610-197910

78180WIRE ASSY, ACCELERATOR

main78150-95D00iRR10,20197808-197911

main78150-95D01iRR11,21197911-198210

main78180-87001iKR1#197610-197910

main78180-87003iTR1#197610-197807

main78180-87004iTR1#197808-197910

main78180-87005iTR1#197807-197808

main78180-87006iKR12197910-198210

main78180-87007iTR1#197910-198210

78310CABLE ASSY, CHOKE

main78310-87001iKR10197610-197802

main78310-95D00iRR1#,2#197808-198210

78314BULB, CHOKE WARNING

main78314-95600iRR1#,2#197808-198210

78343BRACKET, CHOKE ROD

main78302-95602iRR1#,2#197808-198210

9020205117

main90202-05117

9024005071

main90240-05071

9025006164

main90250-06164

9046110025

main90461-10025

9046116416

main90461-16416

9046815021

main90468-15021

9048024004

main90480-24004

9113140855

main91131-40855

9152140814

main91521-40814

9161140612

main91611-40612

9165140845

main91651-40845

9165640620

main91656-40620

9166140620

main91661-40620

9331915012

main93319-15012

9412040800

main94120-40800

9461110700

main94611-10700

9538102512

main95381-02512

26 parts on this diagram · 4 diagrams in section
