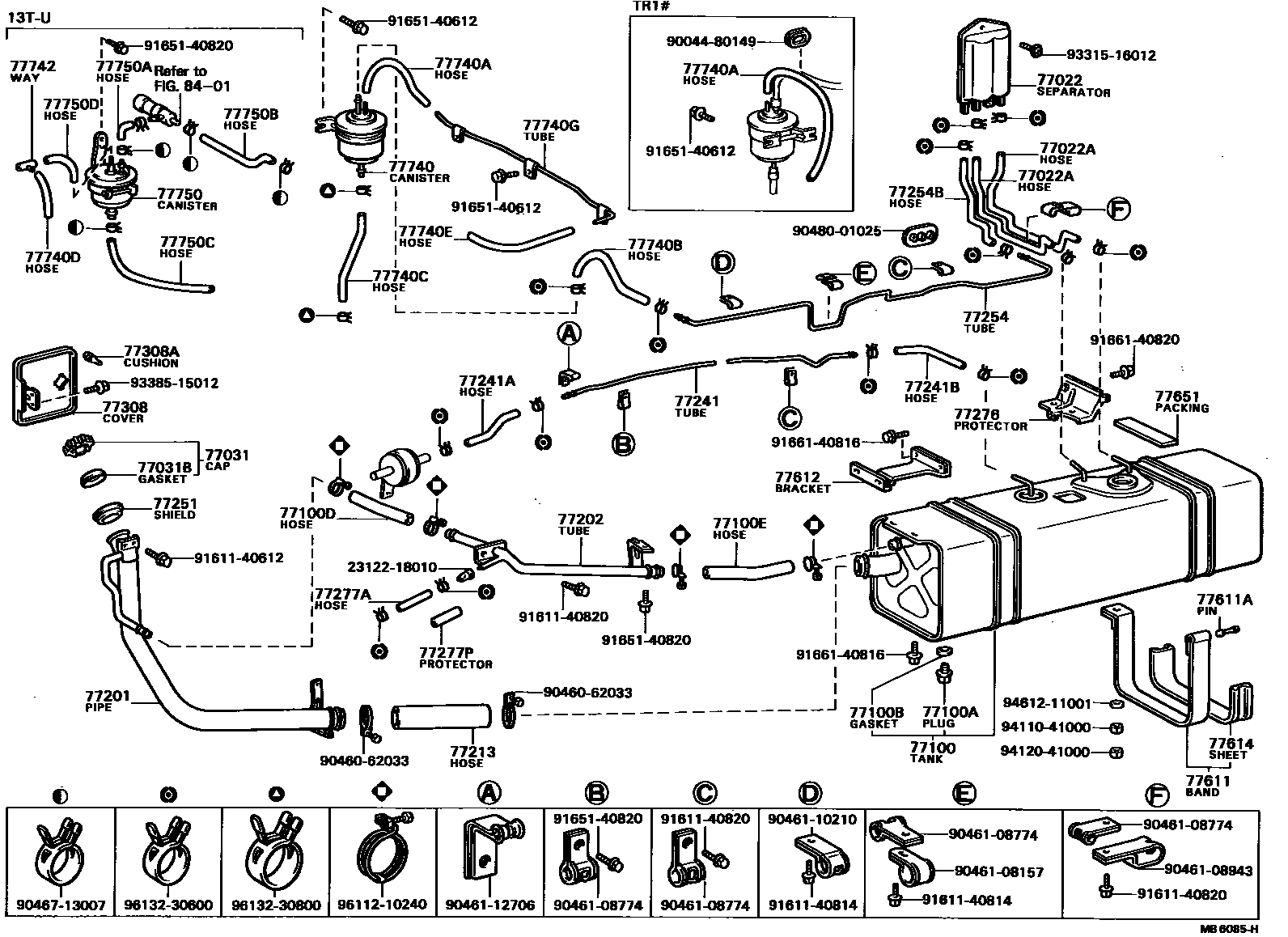

FUEL TANK & TUBE

0001 1 0002 1

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77271-28011iKR1#,TR1#197610-198210

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06020iRR1#197808-198210

main95332-06030iRR2#197808-198210

main95332-06060×2iKR1#,TR1#197610-198210

main95332-08020×2iRR1#; RR2#197808-198210

77031CAP ASSY, FUEL TANK

main69058-23020iRR10,20197808-197809

main69058-95D00iRR10,20197809-197901

main69058-95D01iRR1#,2#197901-198210

main77310-12041iKR1#,TR1#197610-197910

main77310-14070iKR12,TR1#197910-198210

77031BGASKET (FOR FUEL TANK CAP)

main77316-12031iRR1#,2#197808-198210

main77316-12040iKR1#,TR1#197610-197910

main77316-12050iKR12,TR1#197910-198210

77100TANK ASSY, FUEL

main77001-28020iRR21..T1,T3197911-198210

main77001-28030iRR10197808-197911

main77001-28040iRR21..T2197911-198210

main77001-28050iRR11..T2197911-198210

main77001-28901iKR1#,TR1#197610-198210

77100APLUG(FOR FUEL TANK)

main90105-12018iKR1#,RR1#,2#,TR1#197610-198210

77100BGASKET(FOR FUEL TANK)

main90430-12038iKR1#,TR1#197610-197808

main90430-12245iKR1#,RR1#,2#,TR1#197808-198210

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-24010iTR15197808-197910

main90445-24011iKR12197910-198101

L=225

77100EHOSE, FUEL, NO.2(FOR FUEL TANK)

main90445-24011iKR1#,TR1#197610-198210

L=225

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28010iKR1#,TR1#197610-197904

main77201-28030iTR11198101-198210

77202TUBE SUB-ASSY, BREATHER

main77203-28010iKR1#,TR10,11197610-197910

main77203-28011iKR12198101-198210

main77203-28020iTR1#197910-198101

main77203-28021iTR1#198101-198210

77213HOSE, FUEL TANK SUB INLET

main77259-28010iKR1#,TR1#197610-198210

77241TUBE, FUEL MAIN, NO.1

main77251-28010iKR1#,TR1#197610-198210

main77251-28020iRR1#,2#197808-198210

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95331-06012iKR10,TR1#197610-197706

main95332-06020iKR1#,TR1#197706-198210

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06020iKR1#,TR1#197610-198210

main95332-06030iRR2#197808-198210

77251SHIELD, FUEL TANK, INLET, NO.1

main77251-10010iKR1#,TR1#197610-198210

77254TUBE, FUEL EMISSION, NO.1

main77263-28010iKR1#,TR1#197610-198210

main77263-28020iRR10,20..T1197808-197911

main77263-28030iRR10,20..T2,T3197808-197911

main77263-28040iRR11,21197911-198210

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95332-06040iKR1#,TR1#197610-198210

77276PROTECTOR, FUEL HOSE

main77267-28010iKR1#,TR1#197702-198210

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main95332-06040iTR15197808-198210

77277PPROTECTOR(FOR FUEL RETURN HOSE)

main23292-18010iTR15197808-198210

77308COVER SUB-ASSY, FUEL INLET BOX

main65640-95600iRR1#,2#..T1197808-198210

main77305-87001iKR1#,TR1#197610-198210

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90045-40050×2iKR1#,TR1#197610-198210

77611BAND, FUEL TANK

main77601-28010×2iKR1#,TR1#197610-198210

main77601-28021×2iRR1#,2#197808-198210

77611APIN (FOR FUEL TANK BAND)

main77629-25010×2iKR1#,RR1#,2#,TR1#197610-198210

77612BRACKET SUB-ASSY, FUEL TANK

main77501-28011×2iRR10,20..T1197808-197911

main77501-28021×2iRR10,20..T2,T3197808-197911

main77511-28010iTR11,15..WG197610-198210

77614SEAT, FUEL TANK BAND

main77614-36040iKR1#,TR1#197610-198210

77651PACKING, FUEL TANK BRACKET

main77651-25040×2iRR1#,2#197808-198210

main77651-36041×2iKR1#,TR1#197610-198210

77740CANISTER ASSY, CHARCOAL

main77740-14210iKR1#,TR1#197802-198210

main77740-28010iKR10,TR1#197610-197802

main77740-28020iRR10,20197808-197911

main77740-28070iRR11,21197911-198210

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-19930iKR1#197610-198210

main95411-19960iTR11; TR15198007-198210

main95411-19995iRR10,20197808-197905

main95411-39960iTR11; TR15197910-198007

*H,L=330; *H,L=360

77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main95332-06030iKR1#197610-198210

main95332-06040iTR1#197610-198210

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main95332-08020iKR1#; TR1#197610-198210

77740DHOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)

main95411-19930iTR15197808-197910

77740EHOSE, FUEL, NO.5(FOR CHARCOAL CANISTER)

main95411-19930iKR11197802-197910

77740GTUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main23818-13010iKR12197910-198210

main23818-24010iKR11197610-197910

77742WAY, 3(FOR CANISTER)

main90413-04005iTR15197808-198210

77750CANISTER ASSY, CHARCOAL

main77740-28030iTR15197808-198210

77750AHOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)

main77759-14011iTR15197808-198210

77750BHOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)

main77249-28010iTR15197808-198210

L=450

main90445-25008iTR15197808-198210

L=340

77750CHOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER)

main77754-28010iTR15197808-198210

77750DHOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER)

main95411-19930iTR15197808-197910

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2312218010GASKET, FUEL PUMP COVER

main23122-18010

9004480149

main90044-80149

9046062033

main90460-62033

9046108157

main90461-08157

9046108774

main90461-08774

9046108943

main90461-08943

9046110210

main90461-10210

9046112706

main90461-12706

9046713007

main90467-13007

9048001025

main90480-01025

9161140612

main91611-40612

9161140814

main91611-40814

9161140820

main91611-40820

9165140612

main91651-40612

9165140820

main91651-40820

9166140816

main91661-40816

9166140820

main91661-40820

9331516012

main93315-16012

9338515012

main93385-15012

9411041000

main94110-41000

9412041000

main94120-41000

9461211001

main94612-11001

9611210240

main96112-10240

9613230600

main96132-30600

9613230800

main96132-30800

67 parts on this diagram · 2 diagrams in section
