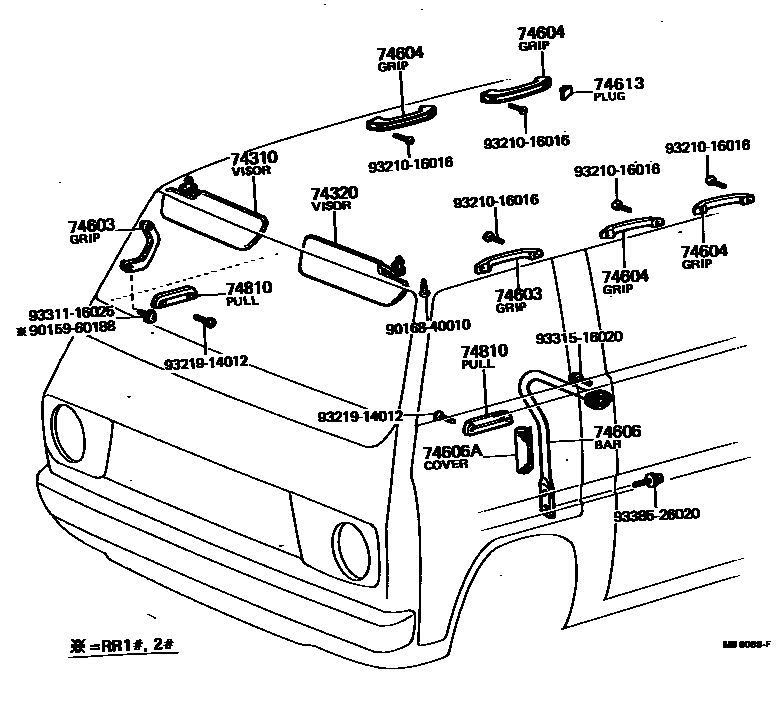

ARMREST & VISOR

0001 1 0002 1

74310VISOR ASSY, RH

main74310-87001-03iKR1#,RR10,20,TR10197610-197910

GRAY,GRAY

main74310-87001-05iTR11197610-197808

BEIGE,BEIGE

main74310-87001-06iTR15..SRF..CEX;TR15..CTM,DLX,STD197808-197910

LIGHT BROWN,BROWN

main74310-87001-08iRR11,21197911-198101

CREAM,IVORY

main74310-87001-16iKR12,TR1#..CTM,DLX,HDX,STD198008-198101

LIGHT BROWN,BROWN

main74310-87002iTR11..CTM197706-197706

SPECIAL WAGON

main74310-87003-06iTR15..HRF..CEX197808-197910

LIGHT BROWN,BROWN

main74310-87003-16iTR15..CEX198008-198101

LIGHT BROWN,BROWN

main74310-87004-06iKR12,TR11198101-198210

LIGHT BROWN,BROWN

main74310-87004-08iRR11,21198101-198210

CREAM,IVORY

main74310-87006iTR15..CNP,CTM,DLX,STD198101-198210

main74310-87008iTR15..GEX,SUE198101-198210

74320VISOR ASSY, LH

main74320-87001-03iKR1#,TR10;RR10,20..DLX197610-197910

GRAY,GRAY

main74320-87001-05iTR11197610-197808

BEIGE,BEIGE

main74320-87001-06iKR12,TR1#..CTM,DLX,HDX,STD197910-198008

LIGHT BROWN,BROWN

main74320-87001-08iRR11,21..DLX197911-198210

CREAM,IVORY

main74320-87001-16iKR12,TR1#..CTM,DLX,HDX,STD198008-198101

LIGHT BROWN,BROWN

main74320-87002iTR11..CTM197706-197706

SPECIAL WAGON

main74320-87003-06iTR15..HRF..CEX197808-197910

LIGHT BROWN,BROWN

main74320-87003-16iTR15..CEX198008-198101

LIGHT BROWN,BROWN

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-87003iTR15..GEX,SUE198101-198210

LH

main74610-87004iTR15..GEX,SUE198101-198210

RH

main74611-87002-06iTR15197808-197910

LH,LIGHT BROWN,BROWN

main74611-87002-16iTR15..CTM,DLX,STD197910-198101

LH,LIGHT BROWN,BROWN

main74611-87002-26iKR12,TR11197910-198210

LH,BROWN,BROWN

main74611-95702-01iKR1#,TR10,11197610-197910

LH,BLACK,BLACK

main74620-87001iKR11,TR1#197802-197808

RH

main74620-87001-01iKR11,TR10197808-197910

RH,BLACK,BLACK

main74620-87001-06iTR15197808-197910

RH,LIGHT BROWN,BROWN

main74620-87001-16iTR15197910-198101

RH,LIGHT BROWN,BROWN

main74620-87001-26×2iRR11,21197911-198210

BROWN,BROWN

74604GRIP SUB-ASSY, ASSIST, REAR

main74610-87003×4iTR15..GEX,SUE198101-198210

main74611-87002×4iTR15197808-197910

main74611-87002-16×4iTR15..CTM,DLX,STD197910-198101

LIGHT BROWN,BROWN

main74611-95702iTR11197610-197808

74606BAR ASSY, ASSIST GRIP

main74610-87001iTR11,15..08S197610-198101

74606ACOVER, ASSIST GRIP

main74615-87001iTR11197708-197805

main74615-87002iTR11,15..08S197805-198101

74613PLUG, ASSIST GRIP

main74617-87001×10iTR15..GEX,SUE197910-198210

FR LH,RR

main74617-87002×2iTR15..GEX,SUE198101-198210

FR RH

74810PULL ASSY, DOOR, INSIDE

main69151-87001×2iTR15197808-198210

main69151-95111×2iKR1#,RR10,20,TR10,11197610-197910

main69151-95D00×2iKR12,RR11,TR11197910-198101

9015960188

main90159-60188

9016840010

main90168-40010

9321016016

main93210-16016

9321914012

main93219-14012

9331116025

main93311-16025

9331516020

main93315-16020

9338526020

main93385-26020

15 parts on this diagram · 2 diagrams in section
