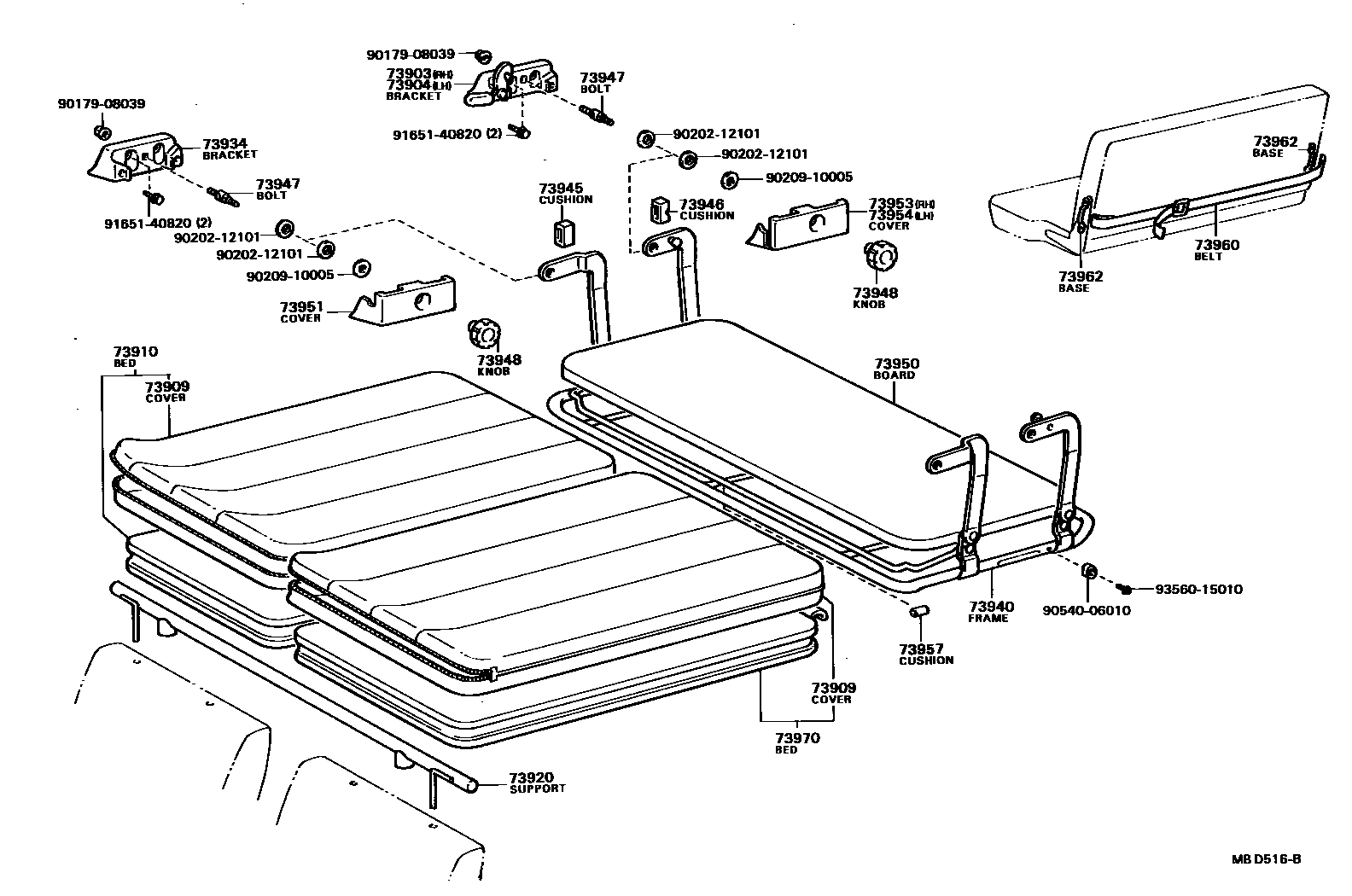

BED & SHELF

73903BRACKET SUB-ASSY, REAR SHELF, RH

main73903-87001iTR15..CNP198201-198210

73904BRACKET SUB-ASSY, REAR SHELF, LH

main73904-87001iTR15..CNP198201-198210

73909COVER SUB-ASSY, REAR BED

main73909-87001iTR15..CNP198201-198210

LH

main73909-87002iTR15..CNP198201-198210

RH

73910BED ASSY, REAR RH

main73910-87001iTR15..CNP198201-198210

73920SUPPORT ASSY, REAR BED

main73920-87001iTR15..CNP198201-198210

73934BRACKET, REAR SHELF

main73934-87001×2iTR15..CNP198201-198210

73940FRAME ASSY, REAR SHELF

main73940-87001iTR15..CNP198201-198210

73945CUSHION, REAR SHELF LINK NO.1

main73945-87001×2iTR15..CNP198201-198210

73946CUSHION, REAR SHELF LINK NO.2

main73946-87001×2iTR15..CNP198201-198210

73947BOLT, REAR SHELF

main73947-95700×4iTR15..CNP198201-198210

73948KNOB, REAR SHELF LINK

main73948-87001×4iTR15..CNP198201-198210

73950BOARD ASSY, REAR SHELF

main73950-87001iTR15..CNP198201-198210

73951COVER, REAR SHELF, NO.1

main73951-87001×2iTR15..CNP198201-198210

73953COVER, REAR SHELF, NO.2 RH

main73953-87001iTR15..CNP198201-198210

73954COVER, REAR SHELF, NO.2 LH

main73954-87001iTR15..CNP198201-198210

73957CUSHION, REAR SHELF BAR

main73957-87001iTR15..CNP198201-198210

73960BELT ASSY, REAR BED HOLDER

main73960-87001iTR15..CNP198201-198210

73962BASE, REAR BED HOLDER

main73962-87001×2iTR15..CNP198201-198210

73970BED ASSY, REAR LH

main73970-87001iTR15..CNP198201-198210

9017908039

main90179-08039

9020212101

main90202-12101

9020910005

main90209-10005

9054006010

main90540-06010

9165140820

main91651-40820

9356015010

main93560-15010

25 parts on this diagram · 1 diagram in section
