E
EPC Data

SEAT & SEAT TRACK

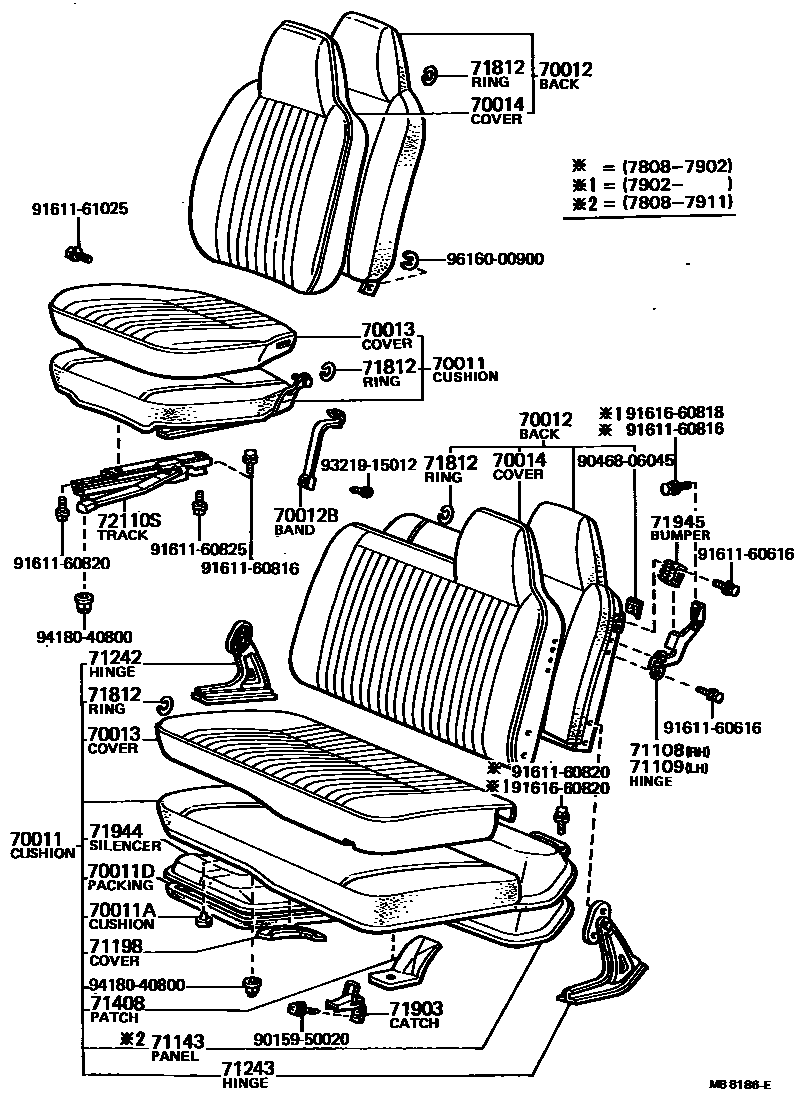

Parts diagram
70011CUSHION ASSY, NO.1 SEAT
main71110-95D02i197808-197911
RH
main71110-95D03i197808-197911
RH
main71110-95D04i197911-198210
RH
main71110-95D05i197911-198101
RH
main71110-95D06i198101-198210
RH
main71210-95D02i197808-197911
LH
main71210-95D03i197808-197911
LH
main71210-95D04i197911-198210
LH
main71210-95D05i197911-198101
LH
main71210-95D06i198101-198210
LH
main71410-87001i197610-197707
RH
main71410-87002i197610-197707
RH
main71410-87003i197610-197707
RH
main71410-87004i197610-197707
RH
main71410-87005i197610-197707
RH
main71410-87006i197707-197710
RH
main71410-87007i197707-197710
RH
main71410-87008i197707-197710
RH
main71410-87009i197707-197710
RH
main71410-87010i197707-197710
RH
main71410-87011i197710-197910
RH
main71410-87012i197710-197910
RH
main71410-87013i197710-197808
RH
main71410-87013-16i197808-197910
RH,L-BROWN,BROWN
main71410-87014i197710-197808
RH
main71410-87014-16i197808-197910
RH,L-BROWN,BROWN
main71410-87015i197710-197808
RH
main71410-87015-16i197808-197910
RH,L-BROWN,BROWN
main71410-87016i197808-197910
RH
main71410-87017i197706-197706
SPECIAL WAGON,RH
main71410-87018i197910-198101
RH
main71410-87019i197910-198101
RH
main71410-87021i197910-198101
RH
main71410-87022i197910-198101
RH
main71410-87023i197910-198101
RH
main71410-87024i197910-198101
RH
main71410-87030i198101-198210
RH,VL
main71410-87031i198101-198210
RH,VL
main71410-87032i198101-198210
RH,VL
main71410-87033i198101-198210
RH,FB
main71410-87034i198101-198210
RH,VL
main71410-87035i198101-198210
RH,PF
main71410-87036i198101-198210
RH,FB
main71410-87037i198111-198111
EVENT,RH
main71410-87038i198101-198210
RH,VL
main71410-87039i198101-198210
RH,FB
main71410-87041i198101-198210
RH,FB
main71410-87042i198008-198101
RH,MOQUETTE
main71420-87001i197610-197710
LH
main71420-87002i197610-197710
LH
main71420-87003i197610-197710
LH
main71420-87004i197610-197710
LH
main71420-87005i197610-197710
LH
main71420-87006i197802-197910
LH
main71420-87007i197710-197802
LH
main71420-87008i197710-197910
LH
main71420-87009i197710-197808
LH
main71420-87009-16i197808-197910
LH,L-BROWN,BROWN
main71420-87010i197710-197808
LH
main71420-87010-16i197808-197910
LH,L-BROWN,BROWN
main71420-87011i197710-197808
LH
main71420-87011-16i197808-197910
LH,L-BROWN,BROWN
main71420-87012i197808-197910
LH
main71420-87013i197910-198101
LH
main71420-87014i197910-198101
LH
main71420-87016i197910-198101
LH
main71420-87017i197910-198101
LH
main71420-87018i197910-198101
LH
main71420-87019i197910-198101
LH
main71420-87021i198101-198210
LH,VL
main71420-87022i198101-198210
LH,VL
main71420-87023i198101-198210
LH,FB
main71420-87024i198101-198210
LH,VL
main71420-87025i198101-198210
LH,PF
main71420-87026i198101-198210
LH,FB
main71420-87027i198111-198111
EVENT,LH
main71420-87028i198101-198210
LH,VL
main71420-87029i198101-198210
LH,FB
main71420-87031i198101-198210
LH,FB
main71420-87032i198008-198101
LH,MOQUETTE
70011ACUSHION, RUBBER (FOR SEAT CUSHION ASSY)
main90541-10009×4i198101-198210
70011DPACKING, ENGINE SERVICE HOLE COVER
main71945-87002i197610-198210
main71945-95D00i197808-198210
70012BACK ASSY, NO.1 SEAT
main71150-95D02i197808-197911
RH
main71150-95D03i197808-197911
RH
main71150-95D04i197911-198210
RH
main71150-95D05i197911-198101
RH
main71150-95D06i198101-198210
RH
main71250-95D02i197808-197911
LH
main71250-95D03i197808-197911
LH
main71250-95D04i197911-198210
LH
main71250-95D05i197911-198101
LH
main71250-95D06i198101-198210
LH
main71430-87001i197610-197710
RH
main71430-87002i197610-197710
RH
main71430-87003i197610-197710
RH
main71430-87004i197610-197710
RH
main71430-87005i197610-197710
RH
main71430-87006i197710-197808
RH
main71430-87007i197710-197808
RH
main71430-87008i197710-197808
RH
main71430-87009i197710-197808
RH
main71430-87010i197710-197808
RH
main71430-87011i197808-197910
RH
main71430-87012i197808-197910
RH
main71430-87013i197808-197910
RH
main71430-87018i197808-197910
RH
main71430-87019i197808-197910
RH
main71430-87020i197808-197910
RH
main71430-87021i197910-198101
RH
main71430-87022i197910-198101
RH
main71430-87024i197910-198101
RH
main71430-87025i197910-198101
RH
main71430-87026i197910-198101
RH
main71430-87027i197910-198101
RH
main71430-87033i198101-198210
RH,VL
main71430-87034i198101-198210
RH,VL
main71430-87035i198101-198210
RH,VL
main71430-87036i198101-198210
RH,FB
main71430-87037i198101-198210
RH,VL
main71430-87038i198101-198210
RH,PF
main71430-87039i198101-198210
RH,FB
main71430-87040i198111-198111
EVENT,RH
main71430-87041i198101-198210
RH,VL
main71430-87042i198101-198210
RH,FB
main71430-87044i198101-198210
RH,FB
main71430-87045i198008-198101
RH,MOQUETTE
main71430-87048i198201-198210
RH,FB,W/*SS
main71430-87050i198201-198210
RH,FB
main71440-87001i197610-197710
LH
main71440-87002i197610-197710
LH
main71440-87003i197610-197710
LH
main71440-87004i197610-197710
LH
main71440-87005i197610-197710
LH
main71440-87006i197802-197910
LH
main71440-87007i197710-197802
LH
main71440-87008i197710-197808
LH
main71440-87009i197710-197808
LH
main71440-87010i197710-197808
LH
main71440-87011i197710-197808
LH
main71440-87012i197808-197910
LH
main71440-87013i197808-197910
LH
main71440-87014i197808-197910
LH
main71440-87015i197808-197910
LH
main71440-87016i197808-197910
LH
main71440-87017i197910-198101
LH
main71440-87018i197910-198101
LH
main71440-87020i197910-198101
LH
main71440-87021i197910-198101
LH
main71440-87022i197910-198101
LH
main71440-87023i197910-198101
LH
main71440-87025i198101-198210
LH,VL
main71440-87026i198101-198210
LH,VL
main71440-87027i198101-198210
LH,FB
main71440-87028i198101-198210
LH,VL
main71440-87029i198101-198210
LH,PF
main71440-87030i198101-198210
LH,FB
main71440-87031i198111-198111
EVENT,LH
main71440-87032i198101-198210
LH,VL
main71440-87033i198101-198210
LH,FB
main71440-87035i198101-198210
LH,FB
main71440-87036i198008-198101
LH,MOQUETTE
main71440-87039i198201-198210
LH,FB,W/*SS
main71440-87041i198201-198210
LH,FB
70012BBAND, ENGINE SERVICE HOLE COVER SUPPORT
main58930-95700i197610-197808
main58930-95701i197911-198210
main71973-87001i197910-198101
main71973-87001-06i198101-198210
L-BROWN,BROWN
main71973-87002i197610-197910
main71973-87002-06i197910-198210
L-BROWN,BROWN
70013COVER ASSY, NO.1 SEAT CUSHION
main71071-87001i197610-197710
RH
main71071-87002i197610-197710
RH
main71071-87003i197610-197710
RH
main71071-87004i197610-197710
RH
main71071-87005i197610-197710
RH
main71071-87006i197706-197706
SPECIAL WAGON,RH
main71071-87007i197710-197910
RH
main71071-87008i197710-197910
RH
main71071-87009i197710-197808
RH
main71071-87009-16i197808-197910
RH,L-BROWN,BROWN
main71071-87010i197710-197808
RH
main71071-87010-16i197808-197910
RH,L-BROWN,BROWN
main71071-87011i197710-197808
RH
main71071-87011-16i197808-197910
RH,L-BROWN,BROWN
main71071-87012i197808-197910
RH
main71071-87014i198101-198210
RH,VL
main71071-87015i197910-198101
RH
main71071-87017i197910-198101
RH
main71071-87018i197910-198101
RH
main71071-87019i197910-198101
RH
main71071-87020i197910-198101
RH
main71071-87021i198008-198101
RH,MOQUETTE
main71071-87023i198101-198210
RH,VL
main71071-87025i198101-198210
RH,FB
main71071-87026i198101-198210
RH,VL
main71071-87027i198101-198210
RH,PF
main71071-87028i198101-198210
RH,FB
main71071-87030i198101-198210
RH,VL
main71071-87031i198101-198210
RH,FB
main71071-87033i198101-198210
RH,FB
main71071-87034i198009-198009
SILVER SPACE 2,RH
main71071-87035i198009-198009
EVENT,RH
main71071-87036i198111-198111
EVENT,RH
main71071-95D00i197808-197911
RH
main71071-95D01i197808-197911
RH
main71071-95D02i197911-198210
RH
main71071-95D03i197911-198101
RH
main71071-95D04i198101-198210
RH
main71072-87001i197610-197710
LH
main71072-87002i197610-197710
LH
main71072-87003i197610-197710
LH
main71072-87004i197610-197710
LH
main71072-87005i197610-197710
LH
main71072-87006i197802-197910
LH
main71072-87007i197706-197706
SPECIAL WAGON,LH
main71072-87008i197710-197802
LH
main71072-87009i197710-197910
LH
main71072-87010i197710-197808
LH
main71072-87010-16i197808-197910
LH,L-BROWN,BROWN
main71072-87011i197710-197808
LH
main71072-87011-16i197808-197910
LH,L-BROWN,BROWN
main71072-87012i197710-197808
LH
main71072-87012-16i197808-197910
LH,L-BROWN,BROWN
main71072-87013i197808-197910
LH
main71072-87014i198101-198210
LH,VL
main71072-87015i197910-198101
LH
main71072-87017i197910-198101
LH
main71072-87018i197910-198101
LH
main71072-87019i197910-198101
LH
main71072-87020i197910-198101
LH
main71072-87021i198008-198101
LH,MOQUETTE
main71072-87023i198101-198210
LH,VL
main71072-87024i198101-198210
LH,VL
main71072-87025i198101-198210
LH,FB
main71072-87026i198101-198210
LH,VL
main71072-87027i198101-198210
LH,PF
main71072-87028i198101-198210
LH,FB
main71072-87029i198111-198111
EVENT,LH
main71072-87030i198101-198210
LH,VL
main71072-87031i198101-198210
LH,FB
main71072-87033i198101-198210
LH,FB
main71072-87034i198009-198009
SILVER SPACE 2,LH
main71072-87035i198009-198009
EVENT,LH
main71072-95D00i197808-197911
LH
main71072-95D01i197808-197911
LH
main71072-95D02i197911-198210
LH
main71072-95D03i197911-198101
LH
main71072-95D04i198101-198210
LH
70014COVER ASSY, NO.1 SEATBACK
main71073-87001i197610-197710
RH
main71073-87002i197610-197710
RH
main71073-87003i197610-197710
RH
main71073-87004i197610-197710
RH
main71073-87005i197610-197710
RH
main71073-87006i197706-197706
SPECIAL WAGON,RH
main71073-87007i197710-197808
RH
main71073-87008i197710-197805
RH
main71073-87009i197710-197808
RH
main71073-87010i197710-197808
RH
main71073-87011i197710-197808
RH
main71073-87012×2i197808-197910
main71073-87013×2i197808-197910
main71073-87014×2i197808-197910
main71073-87015×2i197808-197910
main71073-87016×2i197808-197910
main71073-87017i197808-197910
RH
main71073-87018i198101-198210
RH,VL
main71073-87019×2i197910-198101
main71073-87021×2i197910-198101
main71073-87022×2i197910-198101
main71073-87023×2i197910-198101
main71073-87024×2i197910-198101
main71073-87025×2i198006-198006
SILVER SPACE
main71073-87027×2i198101-198210
RH,VL; VL
main71073-87029×2i198101-198210
FB
main71073-87030×2i198101-198210
VL
main71073-87031×2i198101-198210
PF
main71073-87032×2i198101-198210
FB
main71073-87033×2i198111-198111
EVENT
main71073-87034×2i198101-198210
VL
main71073-87036×2i198101-198210
FB
main71073-87038×2i198101-198210
FB
main71073-87039×2i198009-198009
SILVER SPACE 2
main71073-87040×2i198009-198009
EVENT
main71073-87041×2i198201-198210
FB,W/*SS
main71073-95D00i197808-197911
RH
main71073-95D01i197808-197911
RH
main71073-95D02i197911-198210
RH
main71073-95D03i197911-198101
RH
main71073-95D04i198101-198210
RH
main71074-87001i197610-197710
LH
main71074-87002i197610-197710
LH
main71074-87003i197610-197710
LH
main71074-87004i197610-197710
LH
main71074-87005i197610-197710
LH
main71074-87006i197802-197910
LH
main71074-87007i197706-197706
SPECIAL WAGON,LH
main71074-87008i197710-197802
LH
main71074-87009i197710-197805
LH
main71074-87010i197710-197808
LH
main71074-87011i197710-197808
LH
main71074-87012i197710-197808
LH
main71074-87017i197910-198101
LH
main71074-87019i198101-198210
LH,VL
main71074-95D00i197808-197911
LH
main71074-95D01i197808-197911
LH
main71074-95D02i197911-198210
LH
main71074-95D03i197911-198101
LH
main71074-95D04i198101-198210
LH
71108HINGE SUB-ASSY, FRONT SEATBACK, UPPER RH
main71203-87001i197610-198210
main71203-95D00i197808-197911
main71203-95D01i197911-198210
71109HINGE SUB-ASSY, FRONT SEATBACK, UPPER LH
main71202-87001i197610-198210
main71202-95D00i197808-197911
main71202-95D01i197911-198210
71143PANEL, ENGINE SERVICE HOLE COVER
main71143-95D00i197808-197911
71198COVER, ENGINE SERVICE HOLE AUXUIARY
main71198-95D00i197808-198210
71242HINGE, PASSENGER SEATBACK, RH
main71303-87001i197610-198210
main71303-87003-01×2i197808-197910
BLACK,BLACK
main71303-87003-06×2i197808-197910
L-BROWN,BROWN
main71303-87004i197709-197808
LH SEAT
main71305-95D00i197808-198210
main71307-87001i197709-197808
RH SEAT
main71402-87001i197910-198101
LH SEAT
main71402-87001-06i198101-198210
LH SEAT,L-BROWN,BROWN
main71402-87001-16i198101-198210
LH SEAT,BROWN,BROWN
main72730-87001i197910-198101
RH SEAT
main72730-87001-06i198101-198210
RH SEAT,L-BROWN,BROWN
main72730-87001-16i198101-198210
RH SEAT,BROWN,BROWN
main72730-87003-06i198201-198210
W/*SS,L-BROWN,BROWN
main72730-87003-16i198201-198210
W/*SS,BROWN,BROWN
71243HINGE, PASSENGER SEATBACK, LH
main71301-95D00i197808-198210
main71304-87001i197610-198210
main71306-87001i197610-197808
RH SEAT
main71306-87003-01i197808-197910
RH SEAT,BLACK,BLACK
main71306-87003-06i197808-197910
RH SEAT,L-BROWN,BROWN
main71401-87001i197910-198101
RH SEAT
main71401-87001-06i198101-198210
RH SEAT,L-BROWN,BROWN
main71401-87001-16i198101-198210
RH SEAT,BROWN,BROWN
main71407-87001i197610-197808
LH SEAT
main71407-87002-01i197808-197910
LH SEAT,BLACK,BLACK
main71407-87002-06i197808-197910
LH SEAT,L-BROWN,BROWN
main72740-87001i197910-198101
LH SEAT
main72740-87001-06i198101-198210
LH SEAT,L-BROWN,BROWN
main72740-87001-16i198101-198210
LH SEAT,BROWN,BROWN
main72740-87002-06i198201-198210
W/*SS,L-BROWN,BROWN
main72740-87002-16i198101-198201
BROWN,BROWN
71408PATCH SUB-ASSY, SAFETY BAND ANCHORAGE
main71408-95D00i197808-198210
71812CLIP (FOR FRONT SEAT CUSHION COVER)
main71812-87401i197610-198210
main90468-18056i197808-198101
main90468-18071i198101-198210
71903CATCH SUB-ASSY, SEAT CUSHION, FRONT
main71901-87001×2i197610-198101
main71901-95407×2i197808-198101
71944SILENCER, ENGINE SERVICE HOLE COVER
main71944-95D00i197808-198210
71945BUMPER, SEATBACK
main71298-87401×2i197808-197906
main71298-95D01×2i197906-198210
72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
main72110-87001i197610-197910
main72110-87002i197910-198210
main72110-95D00i197808-198210
9015950020
main90159-50020
9046806045
main90468-06045
9161160616
main91611-60616
9161160816
main91611-60816
9161160820
main91611-60820
9161160825
main91611-60825
9161161025
main91611-61025
9161660818
main91616-60818
9161660820
main91616-60820
9321915012
main93219-15012
9418040800
main94180-40800
9616000900
main96160-00900

31 parts on this diagram · 9 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
