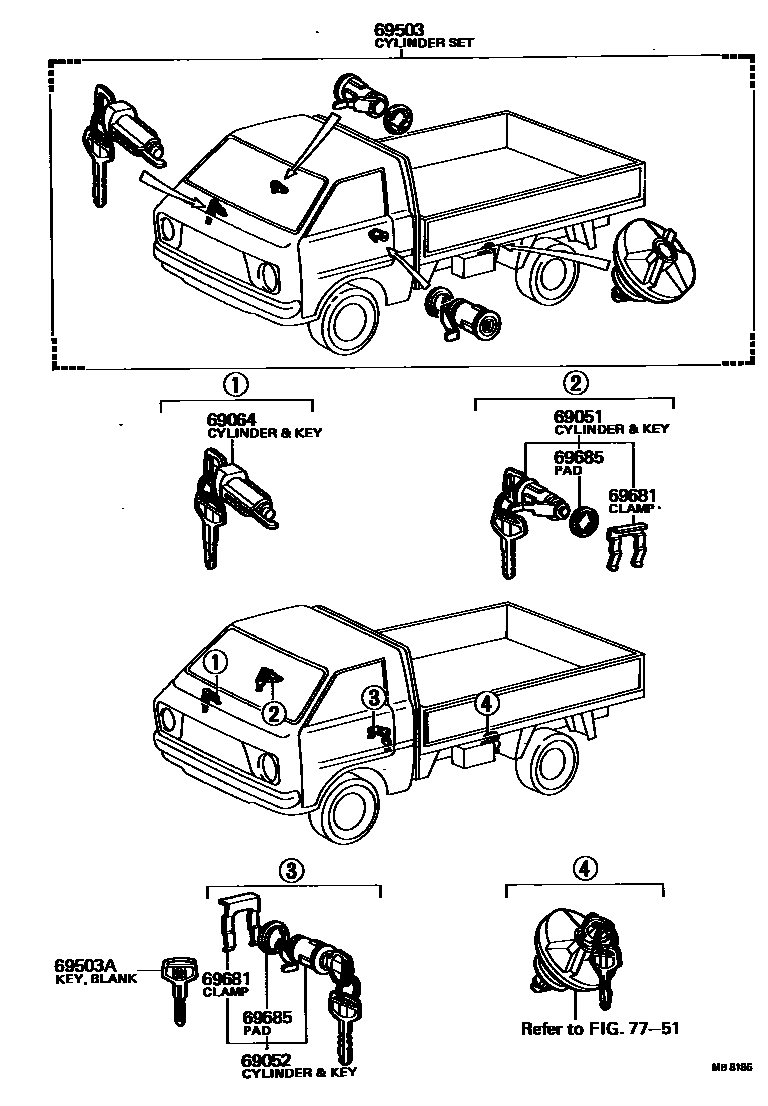

LOCK CYLINDER SET

0001 1 0002 1 0003 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-29245iKR1#,TR1#197610-198210

main69051-95D00iRR10,20197809-197901

sub69051-95D01

main69051-95D01iRR1#,2#197901-198210

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-29245iKR1#,TR1#197610-198210

main69052-95D00iRR10,20197809-197901

sub69052-95D01

main69052-95D01iRR1#,2#197901-198210

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69064-87001iKR1#,TR1#197610-198210

main69064-87003iTR15..GEX198101-198210

sub69057-91601

main69064-95D00iRR10,20197809-197901

sub69064-95D01

main69064-95D01iRR1#,2#197901-198210

sub69064-87001

69503CYLINDER SET, LOCK

main69005-29175iKR12..V4D197610-198103

sub69005-87011

main69005-29255iKR1#,TR10,11..V5D197610-198103

sub69005-87013

main69005-87005iTR15..08S;KR1#,TR10,11..V4D197808-198103

W/MAGNET LOCK

sub69005-87015

main69005-87007iKR1#,TR10,11..V5D197808-198103

W/MAGNET LOCK

sub69005-87017

main69005-87009iTR15..GEX198101-198103

sub69005-87019

main69005-87011iKR12,TR11..V4D..(DLX,STD)198103-198210

main69005-87013iKR12,TR11..V5D..DLX198103-198210

main69005-87015iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE198103-198210

W/MAGNET LOCK

main69005-87017iKR12,TR11..V5D198103-198210

W/MAGNET LOCK

main69005-87019iTR15..GEX198103-198210

main69005-95D00iRR10,20197808-197809

sub69005-95D01

main69005-95D01iRR10,20197809-197901

sub69005-95D02

main69005-95D02iRR1#,2#197901-198210

69503AKEY, BLANK

main90999-00067iKR1#,RR1#,2#,TR1#197610-198210

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iKR1#,RR1#,2#,TR1#197610-198210

69685PAD, LOCK CYLINDER

main69553-13020iKR1#,TR1#197610-198210

BACK DOOR

main69685-12010iKR1#,TR1#197610-198210

main69685-95400iRR10,20197809-197901

7751

8 parts on this diagram · 3 diagrams in section
