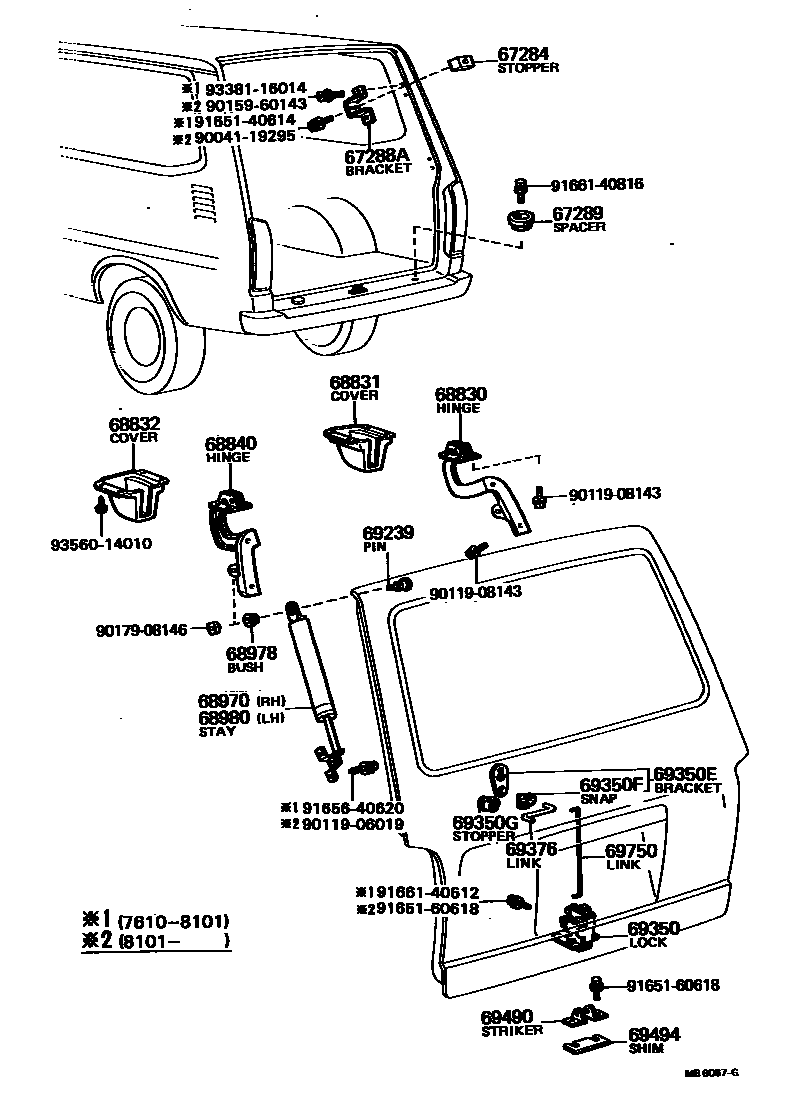

BACK DOOR LOCK & HINGE

67284STOPPER, BACK DOOR, NO.2

main69463-87001iKR1#,TR1#197610-198210

67288ABRACKET, BACK DOOR SIDE STOPPER, UPPER

main69462-87001iKR1#,TR1#197610-198101

sub69462-87002

main69462-87002iKR12,TR1#198101-198210

67289SPACER, BACK DOOR SIDE STOPPER, LOWER

main69452-87001iKR1#,TR1#197610-198210

sub69463-87002

68830HINGE ASSY, BACK DOOR, RH

main68810-87001iKR1#,TR1#..CTM,DLX,STD197610-198210

sub68810-87002

main68810-87002iTR15;KR11,TR10..HRF197808-198210

W/RR WIPER,*ML

main68810-87003iTR15;KR12,TR11..DLX,HDX198201-198210

W/RR WIPER,*ML,COLD SPEC

68831COVER, BACK DOOR HINGE UPPER, RH

main68851-87001iTR11197610-197808

BEIGE

main68851-87001-06iTR15197808-197910

LIGHT BROWN,BROWN

sub68851-87001

main68851-87002iTR15197910-198210

68832COVER, BACK DOOR HINGE UPPER, LH

main68852-87001iTR11197610-197808

BEIGE

main68852-87001-06iTR15197808-197910

LIGHT BROWN,BROWN

sub68852-87001

main68852-87002iTR15197910-198210

68840HINGE ASSY, BACK DOOR, LH

main68820-87001iKR1#,TR1#197610-197808

sub68820-87002

main68820-87002iKR1#,TR1#197808-198210

main68820-87003iTR15;KR12,TR11..DLX,HDX198201-198210

COLD SPEC

68970STAY ASSY, BACK DOOR, RH

main68950-87001iKR10,TR1#197610-197712

sub68950-87002

main68950-87002iKR1#,TR1#..CNP,CTM,DLX,STD197712-198210

main68950-87003iTR15;TR11..HDX197808-198110

W/RR WIPER

main68950-87004iTR15;KR12,TR11..DLX,HDX198110-198210

W/RR WIPER

main68950-87009iTR15;KR12,TR11..DLX,HDX198201-198210

W/RR WIPER,COLD SPEC

68978BUSH, BACK DOOR STAY HANDLE

main90386-11001iKR1#,TR1#197610-198210

68980STAY ASSY, BACK DOOR

main68950-87001iKR10,TR1#197610-197712

sub68950-87002

main68950-87002iKR1#,TR1#..CNP,CTM,DLX,STD197712-198210

main68950-87003iTR15197808-198110

W/RR WIPER

main68950-87004iTR15;KR12,TR11..DLX,HDX198110-198210

W/RR WIPER

main68950-87009iTR15;KR12,TR11..DLX,HDX198201-198210

W/RR WIPER,COLD SPEC

69239PIN, BACK DOOR OUTSIDE HANDLE

main68961-87001iKR1#,TR1#197610-198210

69350LOCK ASSY, BACK DOOR

main69350-87001iKR1#,TR1#197610-198101

main69350-87002iKR12,TR1#198101-198210

69350EBRACKET SUB-ASSY, CONTROL ROD

main69307-87001iKR1#,TR1#197808-198210

W/MAGNET LOCK

69350FSNAP, DOOR LOCK CONTROL ROD

main69377-30020iKR1#,TR1#197808-198210

W/MAGNET LOCK

69350GSTOPPER, CONTROL ROD BRACKET

main69379-87001iKR1#,TR1#197808-198210

W/MAGNET LOCK

69376LINK, BACK DOOR LOCK

main69766-87001iKR1#,TR1#197808-198210

W/MAGNET LOCK

69490STRIKER ASSY, BACK DOOR LOCK

main69430-87001iKR12,TR1#198101-198210

main69450-13010iKR1#,TR1#197610-198101

69494SHIM, BACK DOOR LOCK STRIKER

main69469-13010iKR1#,TR1#197610-198101

T=1.0

main69469-87001iKR12,TR1#198101-198210

T=3.2

main69469-87002iKR12,TR1#198101-198210

T=1.0

main69469-87101iKR1#,TR1#197610-198101

T=3.2

69750LINK SUB-ASSY, BACK DOOR REMOTE CONTROL

main69764-87001iKR12,TR1#..CTM,DLX,STD197610-198101

L=387,YELLOW

main69764-87002iKR1#,TR1#..CTM,DLX,STD197702-198101

L=388,WHITE

main69764-87003iTR11..DLX;KR12,TR15..CNP,CTM,DLX,HDX,STD198101-198210

L=387,YELLOW

main69764-87004iKR12,TR1#198101-198210

W/MAGNET LOCK

main69765-87001iKR1#,TR1#197808-198101

L=387,W/MAGNET LOCK

main69765-87002iKR1#,TR1#197808-198101

L=388,W/MAGNET LOCK

9004119295

main90041-19295

9011906019

main90119-06019

9011908143

main90119-08143

9015960143

main90159-60143

9017908146

main90179-08146

9165140614

main91651-40614

9165160618

main91651-60618

9165640620

main91656-40620

9166140612

main91661-40612

9166140816

main91661-40816

9338116014

main93381-16014

9356014010

main93560-14010

31 parts on this diagram · 1 diagram in section
