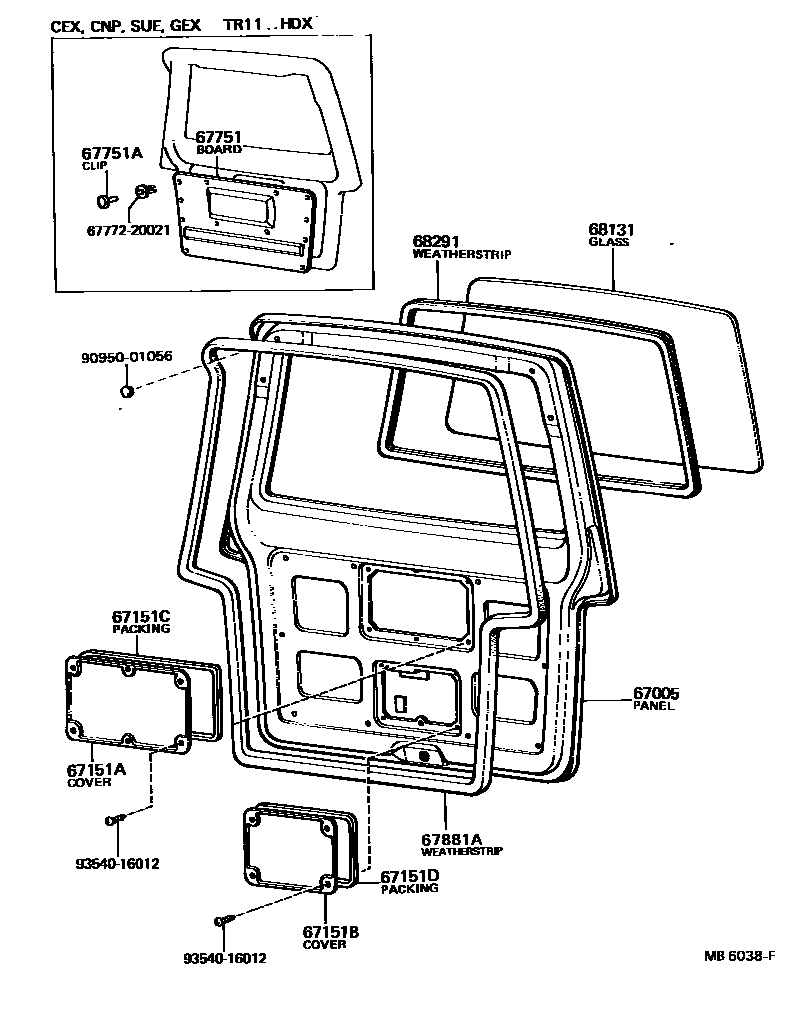

Toyota TOWN/MASTERACE V,WG — BACK DOOR PANEL & GLASS
67005PANEL SUB-ASSY, BACK DOOR
67151ACOVER, BACK DOOR SERVICE HOLE, NO.1
67151BCOVER, BACK DOOR SERVICE HOLE, NO.2
67151CPACKING, BACK DOOR SERVICE HOLE COVER, NO.1
67151DPACKING, BACK DOOR SERVICE HOLE COVER, NO.2
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67881AWEATHERSTRIP, BACK DOOR
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
9095001056
9354016012
13 parts on this diagram · 1 diagram in section
BACK DOOR PANEL & GLASS for Toyota TOWN/MASTERACE V,WG
This section contains 13 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota TOWN/MASTERACE V,WG. Key components include: PANEL SUB-ASSY, BACK DOOR, COVER, BACK DOOR SERVICE HOLE, NO.1, COVER, BACK DOOR SERVICE HOLE, NO.2, PACKING, BACK DOOR SERVICE HOLE COVER, NO.1, PACKING, BACK DOOR SERVICE HOLE COVER, NO.2.
