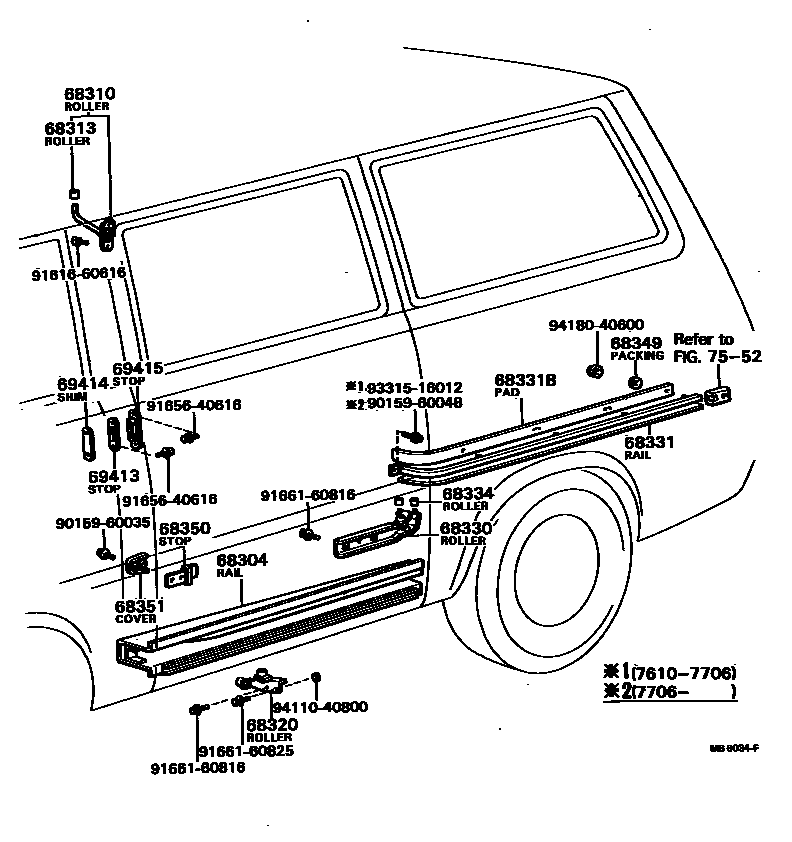

SLIDE ROLLER & RAIL

68304RAIL SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68304-95700iKR1#,TR1#197610-198210

LH

main68307-95700iKR1#,TR10,11..V5D197610-198210

RH

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-95700iKR1#,TR1#197610-198210

LH

main68350-95700iKR1#,TR10,11..V5D197610-198210

RH

68313ROLLER, SIDE DOOR, UPPER

main68313-95700×2iKR1#,TR10,11..V5D; TR11,15..WG;KR1#,TR10,11..V4D197610-198210

68320ROLLER ASSY, SLIDE DOOR, LOWER

main68320-95700iKR1#,TR1#197610-198210

LH

main68360-95700iKR1#,TR10,11..V5D197610-198210

RH

68330ROLLER ASSY, SLIDE DOOR, CENTER

main68340-95700iKR1#,TR1#197610-198210

LH

main68380-95700iKR1#,TR10,11..V5D197610-198210

RH

68331RAIL, SLIDE DOOR, CENTER

main68301-95700iKR1#,TR1#197610-198210

LH

main68303-95700iKR1#,TR10,11..V5D197610-198210

RH

68331BPAD, SLIDE DOOR CENTER RAIL

main68367-87001iKR12,TR11..V5D; TR15;KR12,TR11..V4D198006-198210

68334ROLLER, SLIDE DOOR CENTER, NO.2

main68334-95700×2iKR1#,TR10,11..V5D; TR11,15..WG;KR1#,TR10,11..V4D197610-198210

68349PACKING, SLIDE DOOR CENTER RAIL BOLT

main90430-05234×4iKR1#,TR10,11..V5D; TR11,15..WG;KR1#,TR10,11..V4D197610-198210

68350STOPPER ASSY, SLIDE DOOR OPEN

main69408-95700iKR1#,TR10,11..V5D; TR11,15..WG;KR1#,TR10,11..V4D197610-198210

68351COVER, SLIDE DOOR OPEN STOPPER

main69417-95700iKR1#,TR10,11..V5D; TR11,15..WG;KR1#,TR10,11..V4D197610-198210

69413STOP, SLIDE DOOR DOWN MALE

main69413-87001×4iKR12,TR11..V5D; TR15;KR12,TR11..V4D197910-198210

main69413-95700×2iKR1#,TR10..V5D; TR11,15;KR1#,TR10..V4D197610-197910

69414SHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700×4iKR1#,TR10,11..V5D; TR11,15..WG;KR1#,TR10,11..V4D197610-198210

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69414-87001×4iKR12,TR11..V5D; TR15;KR12,TR11..V4D197910-198210

main69414-95701×2iKR1#,TR10..V5D; TR11,15;KR1#,TR10..V4D197610-197910

7552MOULDING

→ Go to FIG 75-52

9015960035

main90159-60035

9015960048

main90159-60048

9161660616

main91616-60616

9165640616

main91656-40616

9166160816

main91661-60816

9166160825

main91661-60825

9331516012

main93315-16012

9411040800

main94110-40800

9418040600

main94180-40600

24 parts on this diagram · 1 diagram in section
