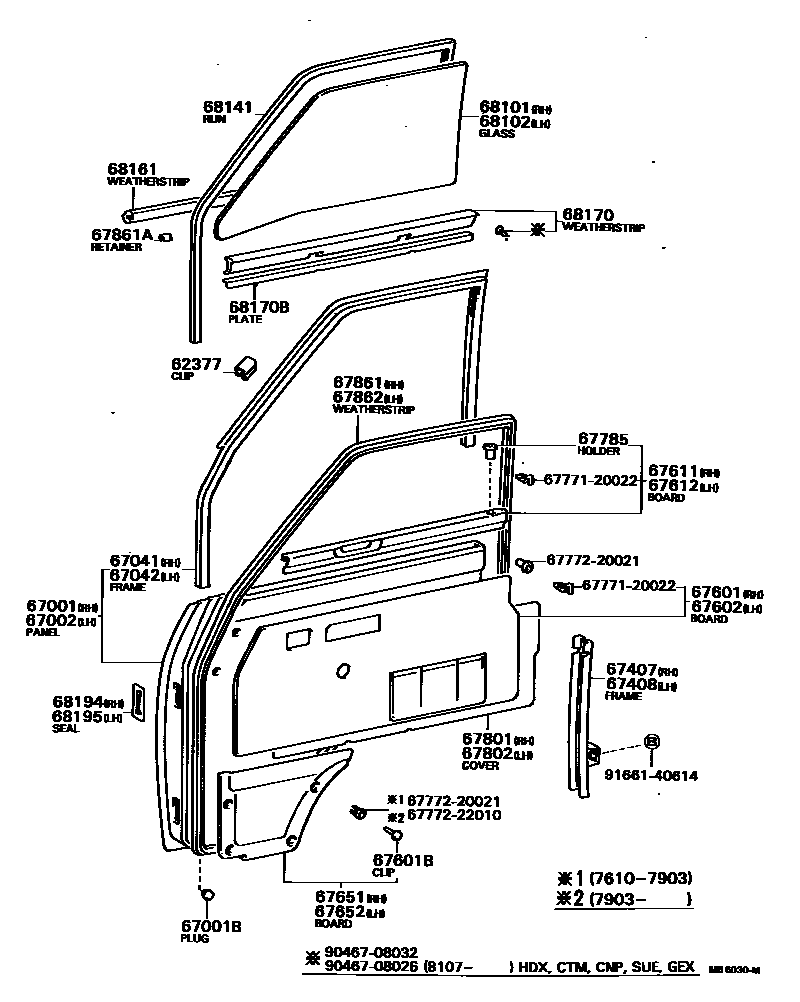

FRONT DOOR PANEL & GLASS

62377CLIP, DOOR WINDOW GLASS

main62377-95D00×2iKR1#,RR1#,2#,TR1#197808-198210

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-87001iKR1#,TR1#197610-197805

main67001-87003iKR1#,TR1#..CTM,DLX,HDX,STD197805-198101

main67001-87004iTR15..CEX197808-197910

main67001-87006iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

main67001-87008iTR15..GEX198101-198210

main67001-95D01iRR1#,2#197808-198210

67001BPLUG, HOLE(FOR FRONT DOOR PANEL)

main90950-01004×2iKR12,RR11,21,TR1#..DLX,HDX,STD197910-198101

main90950-01076×2iKR1#,TR1#197610-197903

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-87001iKR1#,TR1#197610-197805

main67002-87003iKR1#,TR1#..CTM,DLX,HDX,STD197805-198101

main67002-87004iTR15..CEX197808-197910

main67002-87006iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

main67002-87008iTR15..GEX198101-198210

main67002-95D01iRR1#,2#197808-198210

67041FRAME SUB-ASSY, FRONT DOOR WINDOW, RH

main67410-95700iKR1#,RR1#,2#,TR1#197610-198210

67042FRAME SUB-ASSY, FRONT DOOR WINDOW, LH

main67420-95700iKR1#,RR1#,2#,TR1#197610-198210

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67407-95700iKR1#,RR1#,2#,TR1#197610-198210

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67408-95700iKR1#,RR1#,2#,TR1#197610-198210

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-87001-01iKR10197610-197802

BLACK,BLACK

main67610-87001-06iTR11..STD197610-197808

BROWN,BROWN

main67610-87001-16iTR15..STD197808-197910

LIGHT BROWN,BROWN

main67610-87002-01iTR10197610-197802

BLACK,BLACK

main67610-87002-06iTR11..CTM,DLX197610-197808

BROWN,BROWN

main67610-87002-16iTR15..CTM,DLX,SUE197808-197910

LIGHT BROWN,BROWN

main67610-87003-16iKR12..STD; TR11..DLX197910-198101

BROWN,BROWN

main67610-87004iKR12..DLX197910-198101

W/POCKET

main67610-87005iTR11..HDX197910-198101

main67610-87006iTR15197910-198101

main67610-87009-06iTR15..CNP,CTM,DLX,STD,SUE198101-198210

LIGHT BROWN,BROWN

main67610-87009-16iKR12..STD; TR11198101-198210

BROWN,BROWN

main67610-87010iKR12..DLX,HDX198101-198210

W/POCKET

main67610-87016iTR15..SUE198101-198210

W/SPEAKER

main67610-87018iTR15..GEX198101-198210

main67610-95D00iRR10,20..STD197808-197911

main67610-95D01iRR10,20..DLX197808-197911

main67610-95D02iRR11..STD197911-198210

main67610-95D03iRR11,21..DLX197911-198210

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90044-67049-06×8iTR15..CNP,CTM,GEX,SUE197808-198210

LIGHT BROWN,BROWN

main90044-67049-16×8iTR11..HDX197910-198210

BROWN,BROWN

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-87001-01iKR1#,TR10197610-197910

BLACK,BLACK

main67620-87001-06iTR11197610-197808

BROWN,BROWN

main67620-87001-16iTR15197808-197910

LIGHT BROWN,BROWN

main67620-87002-06iTR15197910-198101

LIGHT BROWN,BROWN

main67620-87002-16iKR12,TR11197910-198101

BROWN,BROWN

main67620-87003iTR15..GEX198101-198210

main67620-87004iTR15..SUE198101-198210

W/SPEAKER

main67620-87005-06iTR15..CNP,CTM,DLX,STD,SUE198101-198210

LIGHT BROWN,BROWN

main67620-87005-16iKR12,TR11198101-198210

BROWN,BROWN

main67620-95D00iRR10,20197808-197911

main67620-95D01iRR11,21197911-198210

67611BOARD, FRONT DOOR TRIM, UPPER RH

main67605-87001-06iTR15..CNP,CTM,SUE197910-198210

LIGHT BROWN,BROWN

main67605-87001-16iTR11..HDX197910-198210

BROWN,BROWN

main67605-87002iTR15..GEX198101-198210

67612BOARD, FRONT DOOR TRIM, UPPER LH

main67606-87001-06iTR15..CNP,CTM,SUE197910-198210

LIGHT BROWN,BROWN

main67606-87001-16iTR11..HDX197910-198210

BROWN,BROWN

main67606-87002iTR15..GEX198101-198210

67651BOARD, FRONT DOOR TRIM, LOWER RH

main67670-87001iTR15..SNR..CTM198009-198009

SILVER SPACE 2

main67670-87001-06iTR15..SUE198101-198210

W/CARPET,LIGHT BROWN,BROWN

main67670-87002iTR15..SNR..CEX198006-198006

SILVER SPACE

main67670-87003iTR15..GEX198101-198210

main67713-87001iTR15..CEX197808-197910

main67713-87002-06iTR15..CNP,CTM197910-198210

LIGHT BROWN,BROWN

main67713-87002-16iTR11..HDX197910-198210

BROWN,BROWN

67652BOARD, FRONT DOOR TRIM, LOWER LH

main67680-87001iTR15..CEX197910-198101

W/CARPET

main67680-87001-06iTR15..SUE198101-198210

W/CARPET,LIGHT BROWN,BROWN

main67680-87002iTR15..SNR..CEX198006-198006

SILVER SPACE

main67680-87003iTR15..SNR..(3FC,5F)..SUE198111-198111

EVENT

main67714-87001iTR15..CEX197808-197910

main67714-87002-06iTR15..CNP,CTM197910-198210

LIGHT BROWN,BROWN

main67714-87002-16iTR11..HDX197910-198210

BROWN,BROWN

67785HOLDER, FRONT DOOR LOCKING BUTTON COLLAR

main67627-87001×2iTR15..CNP,CTM,GEX,SUE197910-198210

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67851-87001iTR15..GEX,SUE198101-198210

W/SPEAKER

main67851-95700iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67851-87001iTR15..GEX,SUE198101-198210

W/SPEAKER

main67851-95700iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-87001iKR1#,TR1#197610-198101

main67861-87002iTR15198101-198210

main67861-95700iRR1#,2#197808-198210

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main68174-95701×8iKR1#,TR1#197610-198210

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-87001iKR1#,TR1#197610-198101

main67862-87002iTR15198101-198210

main67862-95700iRR1#,2#197808-198210

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-87001iTR15..3FC,5F198201-198210

BRONZE,*TT,T=4.0

main68111-95700iKR12;RR11,TR15..STD197910-198210

*TEM,T=4.0

main68111-95701iRR10,20,TR1#..CTM,DLX,SUE197610-197910

*TT,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-87001iTR15..3FC,5F198201-198210

BRONZE,*TT,T=4.0

main68112-95700iKR12;RR11,TR15..STD197910-198210

*TEM,T=4.0

main68112-95701iRR10,20,TR1#..CTM,DLX,SUE197610-197910

*TT,T=4.0

68141RUN, FRONT DOOR GLASS

main68141-95701×2iKR1#,RR10,20,TR1#197610-197906

main68141-95702×2iKR1#,RR1#,2#,TR1#197906-198210

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68171-95701iKR1#,RR10,20,TR1#197610-197904

RH

main68171-95D00iKR1#,RR1#,2#,TR1#197904-198006

RH

main68171-95D01iKR12,RR11,21,TR1#198006-198210

RH

main68172-95701iKR1#,RR10,20,TR1#197610-197904

LH

main68172-95D00iKR1#,RR1#,2#,TR1#197904-198006

LH

main68172-95D01iKR12,RR11,21,TR1#198006-198210

LH

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68150-95700iKR1#,RR10,20,TR1#197612-197904

RH

main68150-95D00iRR11,21198101-198210

RH

main68160-95700iKR1#,RR10,20,TR1#197612-197904

LH

main68160-95D00iRR11,21198101-198210

LH

main68161-95700iKR10,TR1#197610-197612

RH

main68162-95700iKR10,TR1#197610-197612

LH

main68170-87001iTR11..DLX;KR12,TR15..4H198201-198210

RH

main68170-87002iTR1#..CNP,CTM,GEX,HDX,SUE198201-198210

RH

main68220-87001iTR11..DLX;KR12,TR15..4H198201-198210

LH

main68220-87002iTR1#..CNP,CTM,GEX,HDX,SUE198201-198210

LH

68170BPLATE, FRONT DOOR WINDOW WEATHERSTRIP INNER, RH

main68163-95700iKR10,TR1#197610-197612

RH

main68164-95700iKR10,TR1#197610-197612

LH

68194SEAL, FRONT DOOR BELT, RH

main68192-87001×2iKR12,RR11,21,TR1#198101-198210

COLD SPEC

68195SEAL, FRONT DOOR BELT, LH

main68193-87001×2iKR12,RR11,21,TR1#198101-198210

COLD SPEC

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9046708026

main90467-08026

9046708032

main90467-08032

9166140614

main91661-40614

35 parts on this diagram · 1 diagram in section
