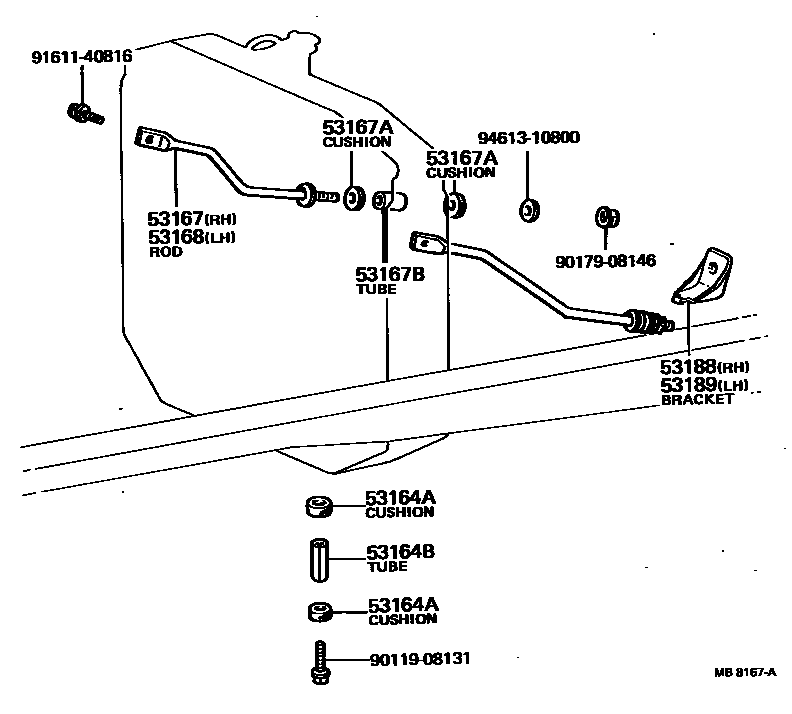

RADIATOR SUPPORT & WIND GUIDE

0001 1 0002 1

53164ACUSHION, RADIATOR SUPPORT

main90540-10011×2iKR1#,RR1#,2#,TR1#197610-198210

T=14.5,OD=28

main90540-10022×2iKR1#,RR1#,2#,TR1#197610-198210

T=6,OD=22

53164BTUBE, RADIATOR SUPPORT

main90440-11042×2iKR1#,RR1#,2#,TR1#197610-198210

53167ROD, RADIATOR BRACE, RH

main53167-28010iKR1#,TR1#197610-198210

main53167-28020iRR1#,2#197808-198210

53167ACUSHION(FOR RADIATOR BRACE ROD)

main90540-10022×4iKR1#,RR1#,2#,TR1#197610-198210

53167BTUBE(FOR RADIATOR BRACE ROD)

main90440-11043×2iKR1#,RR1#,2#,TR1#197610-198210

53168ROD, RADIATOR BRACE, LH

main53169-28010iKR1#,TR1#197610-197910

main53169-28020iRR1#,2#197808-198210

main53169-28031iKR12197910-198210

53188BRACKET, RADIATOR BRACE ROD, RH

main53168-26010iRR1#,2#197808-198210

53189BRACKET, RADIATOR BRACE ROD, LH

main53168-26010iRR1#,2#197808-198210

9011908131

main90119-08131

9017908146

main90179-08146

9161140816

main91611-40816

9461310800

main94613-10800

12 parts on this diagram · 2 diagrams in section
