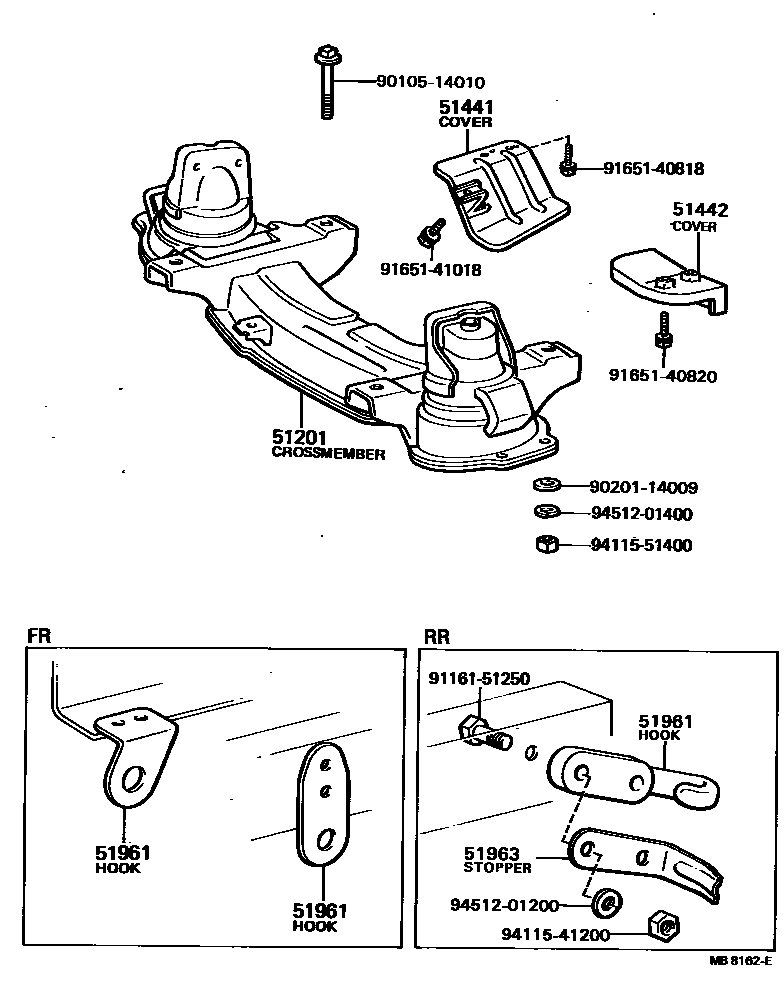

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-28010iKR1#,TR1#197610-197808

main51203-28011iKR12,TR1#..MTM198101-198210

main51203-28021iRR10,20197808-197911

main51203-28030iRR11,21197911-198210

main51203-28040iTR15..3FC198101-198210

51441COVER, ENGINE UNDER, NO.1

main51405-28010iRR10,20197808-197911

main51405-28020iRR11,21197911-198210

main51441-28010iKR1#,TR1#197610-197910

main51441-28030iKR12,TR1#197910-198210

51442COVER, ENGINE UNDER, NO.2

main51442-28010iKR1#,TR1#197610-197910

main51442-28020iKR12,TR1#197910-198210

main51442-28030iRR11,21197911-198210

main51449-28010iRR11,21197911-198210

W/HOT AIR INTAKE

51961HOOK, NO.1

main51961-60010iRR1#,2#197808-198210

RR

main51963-28010iRR1#,2#197808-198210

FR RH

main51964-28010iRR1#,2#197808-198210

FR LH

51963STOPPER, HOOK WIRE

main51963-35010iRR11,21..T2197911-198210

9010514010

main90105-14010

9020114009

main90201-14009

9116151250

main91161-51250

9165140818

main91651-40818

9165140820

main91651-40820

9165141018

main91651-41018

9411541200

main94115-41200

9411551400

main94115-51400

9451201200

main94512-01200

9451201400

main94512-01400

15 parts on this diagram · 2 diagrams in section
