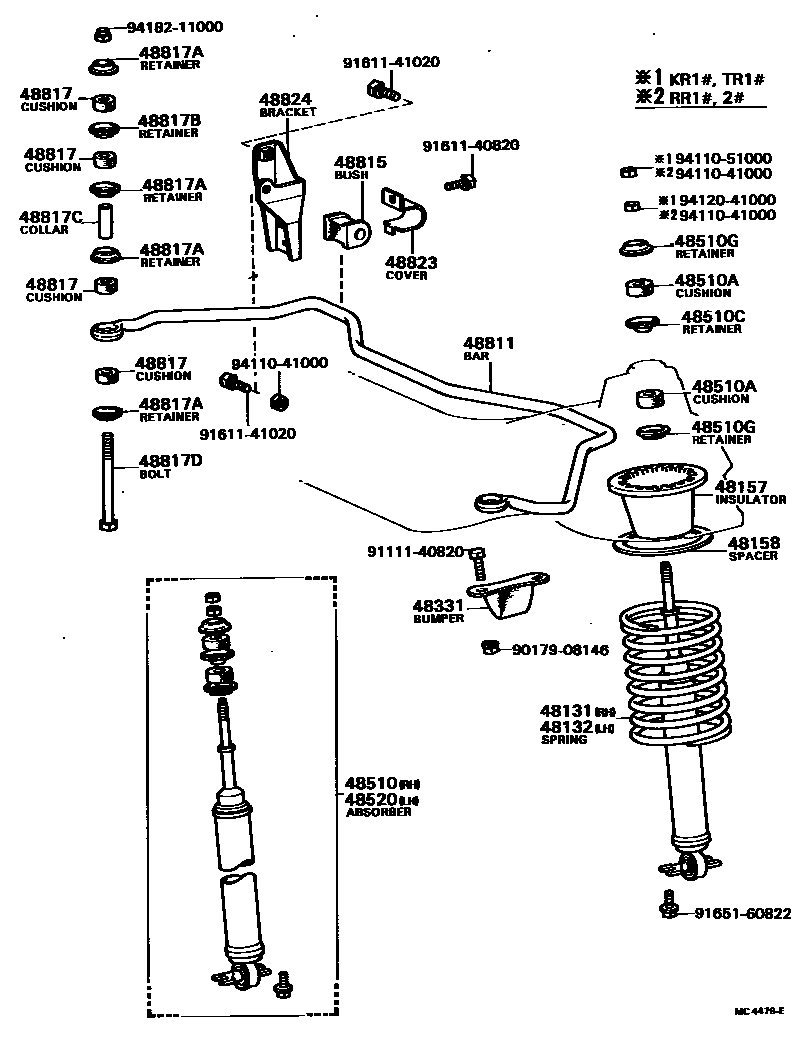

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-28010iKR1#,TR1#197610-197804

main48131-28011iKR1#,TR1#197804-198101

main48131-28020iRR1#,2#197808-198210

main48131-28030iTR15198101-198210

48132SPRING, FRONT COIL, LH

main48131-28010iKR1#,TR1#197610-197804

main48131-28011iKR12,TR11198101-198210

main48131-28020iRR1#,2#197808-198210

main48131-28030iTR15198101-198210

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-20010×2iKR1#,RR1#,2#,TR1#197610-198210

48158SPACER, FRONT COIL SPRING

main48158-20010×2iKR1#,RR1#,2#,TR1#197610-198210

48331BUMPER, FRONT SPRING, NO.1

main48331-27011×2iKR1#,RR1#,2#,TR1#197610-198210

48510ABSORBER ASSY, SHOCK, FRONT RH

main48500-29185iKR1#,TR1#197610-198101

main48500-29205iRR1#,2#197808-198210

main48500-29265iTR15198101-198210

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003×4iKR1#,RR1#,2#,TR1#197610-198210

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02007×2iKR1#,RR1#,2#,TR1#197610-198210

48510GRETAINER, FRONT SHOCK ABSORBER

main90948-02002×4iKR1#,RR1#,2#,TR1#197610-198210

48520ABSORBER ASSY, SHOCK, FRONT LH

main48500-29185iKR12,TR11198101-198210

main48500-29205iRR1#,2#197808-198210

main48500-29265iTR15198101-198210

48811BAR, STABILIZER, FRONT

main48811-28010iTR15198101-198210

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20020×2iTR15198101-198210

48817CUSHION, FRONT STABILIZER

main90948-01002×8iTR15198101-198210

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004×8iTR15198101-198210

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005×2iTR15198101-198210

48817CCOLLAR(FOR STABILIZER BAR)

main90560-10275×2iTR15198101-198210

48817DBOLT(FOR FRONT STABILIZER)

main90101-10073×2iTR15198101-198210

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-27010×2iTR15198101-198210

48824BRACKET, STABILIZER, FRONT

main48824-28010iTR15198101-198210

RH

main48829-28010iTR15198101-198210

LH

9017908146

main90179-08146

9111140820

main91111-40820

9161140820

main91611-40820

9161141020

main91611-41020

9165160822

main91651-60822

9411041000

main94110-41000

9411051000

main94110-51000

9412041000

main94120-41000

9418211000

main94182-11000

28 parts on this diagram · 1 diagram in section
