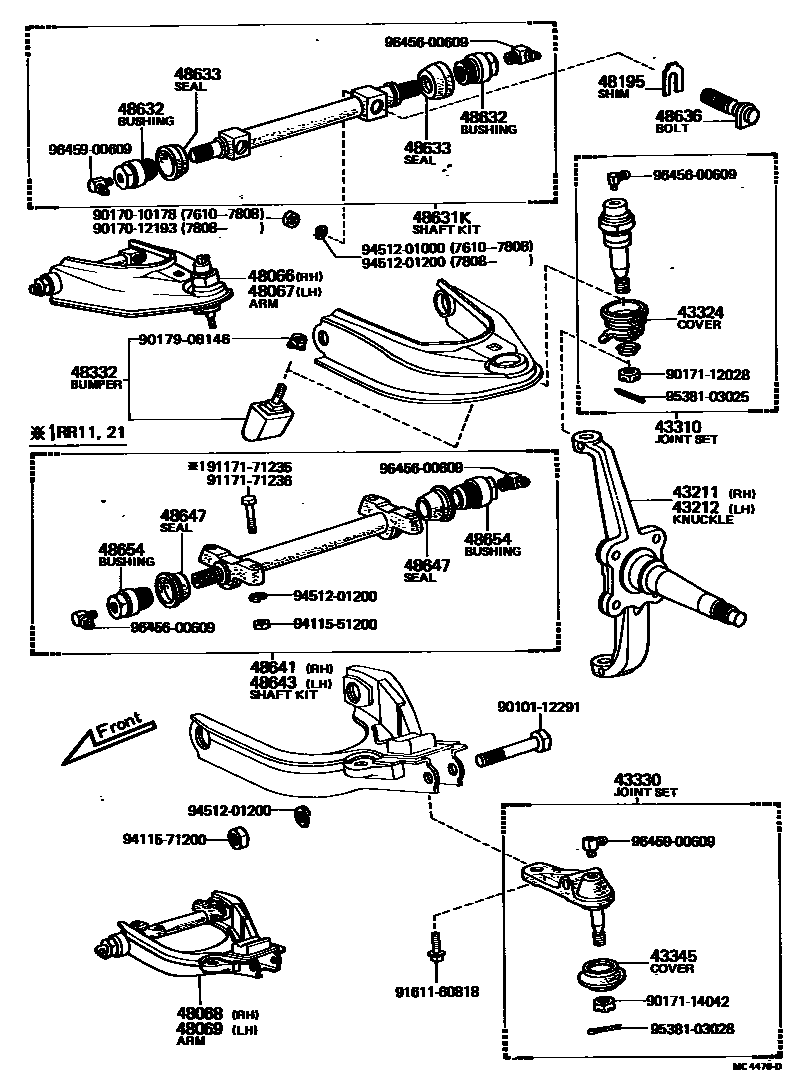

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-28010iKR1#,RR1#,2#,TR1#197610-198210

43212KNUCKLE, STEERING, LH

main43211-28010iKR1#,RR1#,2#,TR1#197610-198210

43310JOINT ASSY, UPPER BALL

main43310-29025×2iKR1#,RR1#,2#,TR1#197610-198210

43324COVER, UPPER JOINT DUST

main43324-28010×2iKR1#,RR1#,2#,TR1#197610-198210

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29085iKR1#,RR1#,2#,TR1#197610-198210

RH

main43340-29065iKR1#,RR1#,2#,TR1#197610-198210

LH

43345COVER, LOWER BALL JOINT DUST

main43345-28010×2iKR1#,RR1#,2#,TR1#197610-198210

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-28010iKR1#,TR1#197610-197808

main48066-28011iKR1#,RR1#,2#,TR1#197808-198210

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-28010iKR1#,TR1#197610-197808

main48067-28011iKR1#,RR1#,2#,TR1#197808-198210

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28010iKR1#,RR1#,2#,TR1#197610-198210

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28010iKR1#,RR1#,2#,TR1#197610-198210

48195SHIM, CAMBER ADJUST

main90565-10030×4iKR1#,TR1#197610-197808

T=2.3

main90565-10031×4iKR1#,TR1#197610-197808

T=1.6

main90565-10032×4iKR1#,TR1#197610-197808

T=1.2

main90565-12001×4iKR1#,RR1#,2#,TR1#197808-198210

T=2.3

main90565-12002×4iKR1#,RR1#,2#,TR1#197808-198210

T=1.6

main90565-12003×4iKR1#,RR1#,2#,TR1#197808-198210

T=1.2

48332BUMPER, FRONT SPRING, NO.2

main48305-29045×2iKR1#,RR1#,2#,TR1#197610-198210

48631KSHAFT KIT, UPPER SUSPENSION ARM

main04485-20030×2iKR1#,TR1#197610-197808

main04485-28010×2iKR1#,RR1#,2#,TR1#197808-198210

48632BUSH, UPPER ARM

main48632-20020×4iKR1#,RR1#,2#,TR1#197610-198210

48633SEAL, UPPER ARM PIVOT DUST

main48633-20030×4iKR1#,RR1#,2#,TR1#197610-198210

48636BOLT, UPPER ARM SET

main48636-27010×4iKR1#,TR1#197610-197808

main48636-28010×4iKR1#,RR1#,2#,TR1#197808-198210

48641SHAFT, LOWER ARM, RH

main04486-30030iKR1#,RR1#,2#,TR1#197610-198210

48643SHAFT, LOWER ARM, LH

main04486-30030iKR1#,RR1#,2#,TR1#197610-198210

48647SEAL, LOWER ARM BUSH DUST

main48633-30020×4iKR1#,RR1#,2#,TR1#197610-198210

48654BUSH, LOWER ARM

main48632-30012×4iKR1#,RR1#,2#,TR1#197610-198210

9010112291

main90101-12291

9017010178

main90170-10178

9017012193

main90170-12193

9017112028

main90171-12028

9017114042

main90171-14042

9017908146

main90179-08146

9117171235

main91171-71235

9117171236

main91171-71236

9161160818

main91611-60818

9411551200

main94115-51200

9411571200

main94115-71200

9451201000

main94512-01000

9451201200

main94512-01200

9538103025

main95381-03025

9538103028

main95381-03028

9645600609

main96456-00609

9645900609

main96459-00609

37 parts on this diagram · 1 diagram in section
