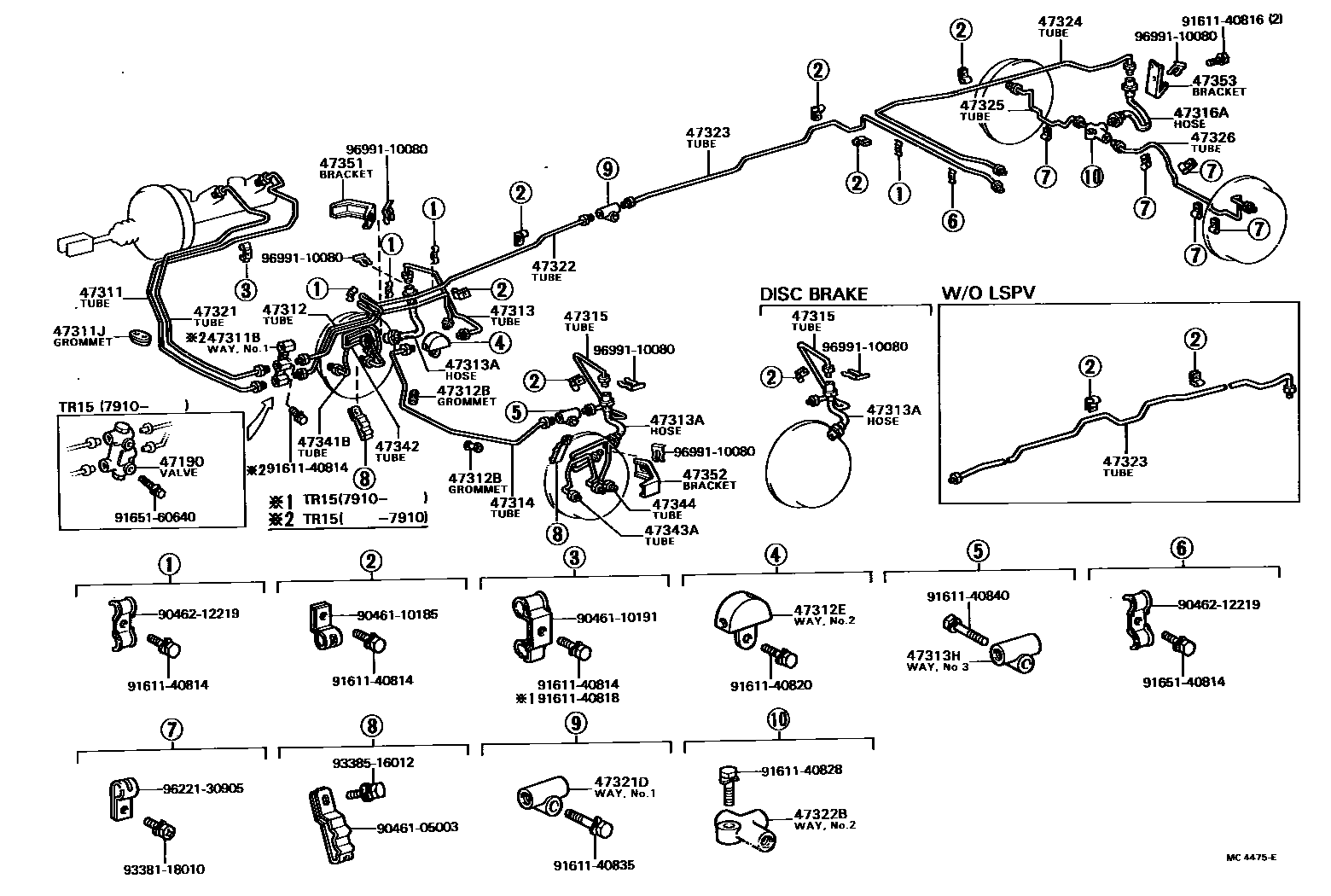

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-28010iTR15197910-198210

47311TUBE, FRONT BRAKE, NO.1

main47311-28010iKR1#,TR1#197610-197910

main47311-28020iRR1#,2#197808-198210

main47311-28030iTR15..CNP,CTM,DLX,STD,SUE197910-198210

main47311-28040iTR15..GEX198101-198210

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10023iTR1#197610-197910

main90412-10027iKR1#197610-198210

main90412-10028iRR1#,2#197808-198210

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90480-01079iRR1#,2#197808-198210

main90480-01436iKR1#,TR1#197610-198210

47312TUBE, FRONT BRAKE, NO.2

main47312-28010iKR12,TR11197910-198101

main47312-28011iKR12,TR11198101-198210

main47312-28020iRR1#,2#197808-198210

main47312-28030iTR15197910-198101

main47312-28040iTR15198101-198210

47312BGROMMET, NO.2(FOR FRONT BRAKE TUBE)

main90480-08343×2iKR1#,TR1#197610-198210

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10025iKR1#,TR1#197610-198210

main90413-10070iRR1#,2#197808-198210

47313TUBE, FRONT BRAKE, NO.3

main47313-28010iKR1#,TR1#197610-198210

main47313-28020iRR1#,2#197808-198210

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02370×2iRR1#,2#197808-198210

main96940-31403×2iTR11,15..CTM,SUE197610-197902

main96940-34005×2iTR15..CTM,SUE197902-198101

main96950-31403×2iKR1#,TR1#..DLX,STD197610-197902

main96950-33905×2iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE198203-198210

FR DRUM BRAKE

main96950-34005×2iKR1#,TR1#..DLX,HDX,STD197902-198101

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90412-10065iKR1#,TR1#197610-198210

47314TUBE, FRONT BRAKE, NO.4

main47314-28010iKR1#,TR1#197610-198210

main47314-28020iRR1#,2#197808-198210

47315TUBE, FRONT BRAKE, NO.5

main47315-28010iKR1#,TR1#197610-198210

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-31363iRR10,20197808-197902

main96940-31403iKR1#,TR1#197610-197902

main96940-33605iRR10,20197902-197911

main96940-34005iKR1#,RR11,21,TR1#197902-198210

47321TUBE, REAR BRAKE, NO.1

main47321-28010iKR1#,TR1#197610-197910

main47321-28020iRR1#,2#197808-198210

main47321-28030iTR15..CNP,CTM,DLX,STD,SUE197910-198210

main47321-28040iTR15..GEX198101-198210

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10003iRR1#,2#197808-198210

main90412-10065iKR1#,TR1#197610-198210

47322TUBE, REAR BRAKE, NO.2

main47322-28010iKR12,TR11197910-198101

main47322-28011iKR12,TR11198101-198210

main47322-28020iRR1#,2#197808-198210

main47322-28030iTR15197910-198101

main47322-28040iTR15198101-198210

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10086iRR10,20197808-197911

main90413-10098iKR1#,TR1#197610-198210

main90413-10103iRR11,21..T2197911-198210

main90413-10147iRR11,21..T1,T3197911-198210

47323TUBE, REAR BRAKE, NO.3

main47323-28010iKR1#,TR1#..DLX,STD197610-197910

W/O LSPV

main47323-28020iKR12,TR11;TR15..3FC,5F198101-198210

W/LSPV

main47323-28030iRR10197808-197911

main47323-28040iRR20197808-197911

main47323-28050iRR11197911-198004

main47323-28051iRR11198004-198210

main47323-28060iRR21197911-198004

main47323-28061iRR21198004-198210

47324TUBE, REAR BRAKE, NO.4

main47324-28010iKR12,TR11197910-198101

W/LSPV

main47324-28020iRR1#,2#197808-198210

47325TUBE, REAR BRAKE, NO.5

main47325-27050iRR11,21..T2197911-198210

main47325-28010iKR1#,TR1#197610-198210

main47325-28020iRR10,20197808-197911

main47325-28030iRR11,21..T1,T3197911-198210

47326TUBE, REAR BRAKE, NO.6

main47326-27030iRR11,21..T2197911-198210

main47326-28010iKR1#,TR1#197610-198210

main47326-28020iRR10,20197808-197911

main47326-28030iRR11,21..T1,T3197911-198210

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47331-20050iKR1#,TR1#..DLX,STD197610-197910

main47342-27020iRR11,21197911-198210

main47342-28010iRR10,20197808-197911

main47342-28020iKR12,TR1#197910-198101

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47341-28010iKR1#,TR1#..DLX,STD197610-197910

main47341-28020iRR10,20197808-197911

main47341-28030iKR12,TR1#197910-198101

main47341-28040iRR11,21197911-198210

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47333-20050iKR1#,TR1#..DLX,STD197610-197910

main47342-28010iRR10,20197808-197911

main47344-27020iRR11,21197911-198210

main47344-28010iKR12,TR1#197910-198101

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47343-28010iKR1#,TR1#..DLX,STD197610-197910

main47343-28020iRR10,20197808-197911

main47343-28030iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

main47343-28040iRR11,21197911-198210

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-28020iRR1#,2#197808-198210

main47353-28010iKR1#,TR1#197610-198210

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-28020iRR1#,2#197808-198210

main47353-28010iKR1#,TR1#197610-198210

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47355-28010iKR1#,TR1#197610-198210

main47355-28020iRR1#,2#197808-198210

9046105003

main90461-05003

9046110185

main90461-10185

9046110191

main90461-10191

9046212219

main90462-12219

9161140814

main91611-40814

9161140816

main91611-40816

9161140818

main91611-40818

9161140820

main91611-40820

9161140828

main91611-40828

9161140835

main91611-40835

9161140840

main91611-40840

9165140814

main91651-40814

9165160640

main91651-60640

9338118010

main93381-18010

9338516012

main93385-16012

9622130905

main96221-30905

9699110080

main96991-10080

45 parts on this diagram · 4 diagrams in section
