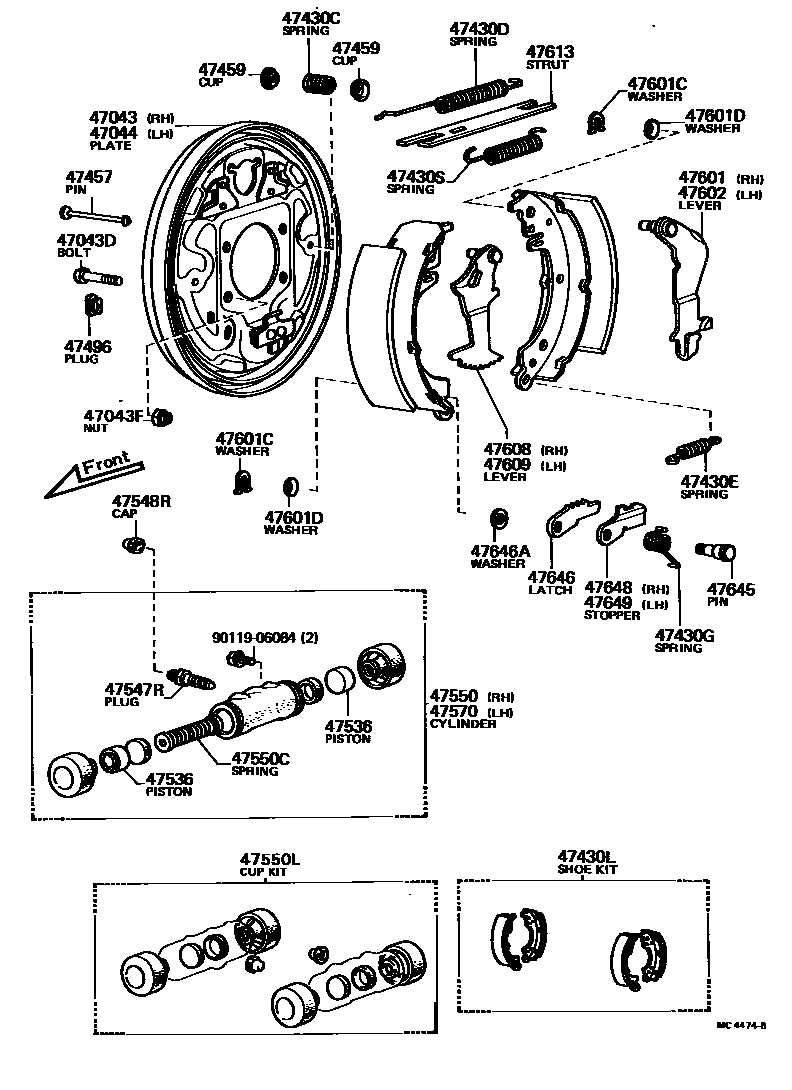

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0005 1

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-22031iKR1#,TR1#197610-197910

main47043-27010iRR11,21..T2197911-198210

main47043-28010iRR10,20197808-198210

main47043-28020iKR12,TR1#197910-198210

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011iKR1#,TR1#197610-198210

main90101-10069iRR11,21..T2197911-198210

main90114-10016iRR11,21..T1,T3197808-198210

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10172iRR11,21..T1,T3197808-198210

main90170-10191iRR11,21..T2197911-198210

main94181-11000iKR1#,TR1#197610-198210

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-22031iKR1#,TR1#197610-197910

main47044-27010iRR11,21..T2197911-198210

main47044-28010iRR11,21..T1,T3197808-198210

main47044-28020iKR12,TR1#197910-198210

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017iRR11,21..T2197910-198210

main90501-20225iKR1#,TR1#197610-197910

main90501-20756iRR10,20197808-198210

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-20201iKR1#,TR1#197610-197910

main90506-23010iRR11,21..T1,T3197808-198210

main90506-23013iRR11,21..T2197911-198210

main90506-23375iKR12,TR1#197910-198210

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-22128iKR1#,TR1#197610-197910

main90506-23346iKR12,TR1#197910-198210

main90506-26159iRR11,21..T1,T3197808-198210

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iKR12,TR1#197910-198210

main90508-18145iKR1#,TR1#197610-197910

RH

main90508-18146iKR1#,TR1#197610-197910

LH

47430LSHOE KIT, REAR BRAKE

main04495-14020iKR12,TR11197910-198210

FR DRUM BRAKE

main04495-20050iTR15..CTM,SUE197910-198210

FR DISC BRAKE

main04495-22020iTR11,15..CTM,SUE197610-197910

main04495-28010iKR1#,TR1#..DLX,STD197610-197910

main04495-28020iRR11,21..T1,T3197808-198210

main04495-28030iRR11,21..T2197911-198210

main04497-14020iTR15..CNP,CTM,DLX,STD,SUE197910-198210

FR DRUM BRAKE,REBUILT

main04497-20030iTR15..CTM,SUE197910-198210

FR DISC BRAKE,REBUILT

main04497-22020iTR11,15..CTM,SUE197610-197910

REBUILT

main04497-28010iKR1#,TR1#..DLX,STD197610-197910

REBUILT

main04497-28020iRR10,20197808-198210

REBUILT

main04497-28030iRR11,21..T2197911-198210

REBUILT

47430SSPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)

main90506-20199iKR1#,TR1#197610-197910

RH

main90506-20200iKR1#,TR1#197610-197910

LH

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iRR11,21..T2197911-198210

FR

main47447-20030iKR12,TR1#197910-198210

main47447-22010iKR1#,TR1#197610-197910

main47447-27010iRR11,21..T2197911-198210

RR

main47447-30020iRR11,21..T1,T3197808-198210

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-20011iKR1#,TR1#197610-197910

main47449-30020iRR10,20197808-198210

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iKR12,TR1#197910-198210

main47491-20020iRR10,20197808-197810

main47491-22010iKR1#,TR1#197610-197910

main47491-36010iRR1#,2#197810-198210

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-21011iKR1#,TR1#197610-197910

OD=17.46

main47051-22031iTR15..CTM,SUE197910-198210

FR DISC BRAKE

main47051-22031iKR12,TR11197910-198210

FR DRUM BRAKE,W/O LSPV

main47051-22031iKR1#,TR1#..DLX,STD197610-197910

OD=19.05,W/LSPV

main47051-22040iTR15..CNP,CTM,DLX,STD,SUE197910-198210

FR DRUM BRAKE

main47051-22040iKR12;TR11..DLX198101-198210

FR DRUM BRAKE,W/LSPV

main47051-22040iKR12,TR11197910-198101

W/LSPV

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iKR1#,RR1#,2#,TR1#197610-198210

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iKR1#,RR1#,2#,TR1#197610-198210

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19055iKR1#,TR1#197610-197910

ID=17.46

main47550-19125iKR12,TR11197910-198210

ID=19.05,FR DRUM,W/O LSPV

main47550-19125iTR15..CTM,SUE197910-198210

ID=19.05,FR DISC

main47550-19135iKR12;TR11..DLX198101-198210

ID=20.64,FR DRUM,W/LSPV

main47550-19135iTR15..CNP,CTM,DLX,STD,SUE197910-198210

ID=20.64,FR DRUM

main47550-19135iKR12,TR11197910-198101

ID=20.64,W/LSPV

main47550-29106iKR1#,TR1#..DLX,STD197610-197910

ID=19.05,W/LSPV

main47550-29185iRR11,21..T1,T3197808-198210

ID=15.87

main47550-29245iRR11,21..T2197911-198210

ID=15.87

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12010iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE197910-198210

FR DISC BRAKE

main47509-12010iKR1#,TR1#..DLX,STD197610-197910

OD=19.05,W/LSPV

main47509-12010iKR12,TR11197910-198210

FR DRUM BRAKE,W/O LSPV

main47509-12020iKR12,TR11197910-198101

W/LSPV

main47509-12020iKR12;TR11..DLX198101-198210

FR DRUM BRAKE,W/LSPV

main47509-12020iTR15..CNP,CTM,DLX,STD,SUE197910-198210

FR DRUM BRAKE

main47509-14010iKR1#,TR1#197610-197910

ID=17.46

main90501-06012iRR11,21..T2197911-198210

main90501-07006iRR10,20197808-198210

47550LCUP KIT, REAR WHEEL CYLINDER

main04906-12030iKR1#,TR1#..DLX,STD197610-197910

ID=19.05,W/LSPV

main04906-12030iKR12,TR11197910-198210

ID=19.05,FR DRUM,W/O LSPV

main04906-12030iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE197910-198210

ID=19.05,FR DISC

main04906-12040iKR12;TR11..DLX198101-198210

ID=20.64,FR DRUM,W/OLSPV

main04906-12040iKR12,TR11197910-198101

ID=20.64,W/LSPV

main04906-12040iTR15..CNP,CTM,DLX,STD,SUE197910-198210

ID=20.64,FR DRUM

main04906-14010iKR1#,TR1#197610-197910

ID=17.46

main04906-27010iRR11,21..T2197911-198210

ID=15.87

main04906-28010iRR11,21..T1,T3197808-198210

ID=15.87

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19055iKR1#,TR1#197610-197910

ID=17.46

main47550-19125iTR15..CTM,SUE197910-198210

ID=19.05,FR DISC

main47550-19125iKR12,TR11197910-198210

ID=19.05,FR DRUM,W/O LSPV

main47550-19135iKR12;TR11..DLX198101-198210

ID=20.64,FR DRUM,W/LSPV

main47550-19135iKR12,TR11197910-198101

ID=20.64,W/LSPV

main47550-19135iTR15..CNP,CTM,DLX,STD,SUE197910-198210

ID=20.64,FR DRUM

main47550-29106iKR1#,TR1#..DLX,STD197610-197910

ID=19.05,W/LSPV

main47550-29185iRR11,21..T1,T3197808-198210

ID=15.87

main47550-29245iRR11,21..T2197911-198210

ID=15.87

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iKR12,TR1#197910-198210

main47601-22021iKR1#,TR1#197610-197910

main47611-27010iRR11,21..T2197911-198210

main47611-28010iRR11,21..T1,T3197808-198210

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iKR12,TR1#197910-198210

main90213-07010iRR11,21197610-198210

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-10059iKR1#,RR10,20,TR1#197610-198210

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iKR12,TR1#197910-198210

main47602-22021iKR1#,TR1#197610-197910

main47612-27010iRR11,21..T2197911-198210

main47612-28010iRR10,20197808-198210

47608LEVER SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47608-22021iKR1#,TR1#197610-197910

47609LEVER SUB-ASSY, AUTOMTIC ADJUST, LH(FOR REAR BRAKE)

main47609-22021iKR1#,TR1#197610-197910

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-22010iKR1#,TR1#197610-197910

main47613-26010iRR10,20197808-198210

main47613-27010iRR11,21..T2197911-198210

RH

main47614-27010iRR11,21..T2197911-198210

LH

47645PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)

main47645-22010iKR1#,TR1#197610-197910

47646LATCH, AUTOMATIC ADJUST(FOR REAR BRAKE)

main47646-22010iKR1#,TR1#197610-197910

47646AWASHER, PLATE(FOR REAR BRAKE AUTOMATIC ADJUST LATCH)

main90201-10316iKR1#,TR1#197610-197910

47648STOPPER, AUTOMATIC ADJUST LATCH, RH(FOR REAR BRAKE)

main47648-22010iKR1#,TR1#197610-197910

47649STOPPER, AUTOMATIC ADJUST LATCH, LH(FOR REAR BRAKE)

main47649-22010iKR1#,TR1#197610-197910

9011906084

main90119-06084

33 parts on this diagram · 4 diagrams in section
