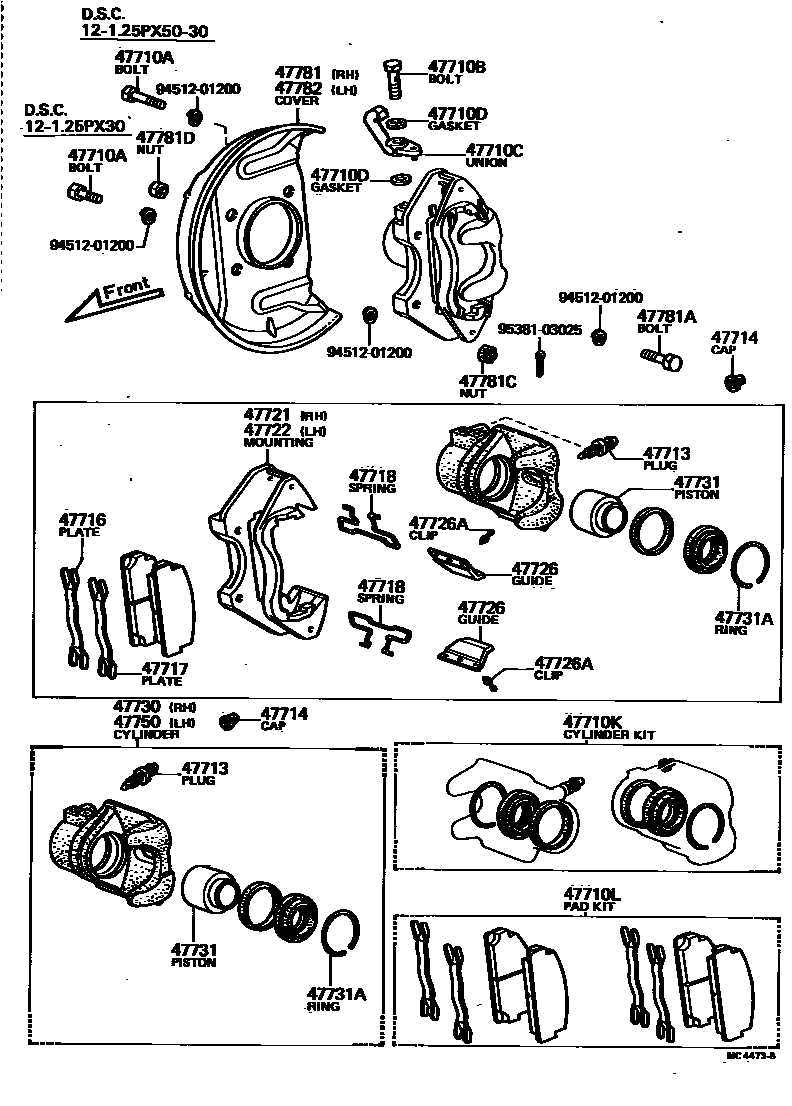

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0005 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010×2iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198109-198210

main90101-12018×4iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

*12-1.25PX30-20

sub90119-12068

main90101-12019×2iTR15..CTM,SUE197910-198101

*12-1.25PX50-35

main91161-71230×2iTR11,15..CTM,SUE197610-197910

*12-1.25PX30-30

sub91162-81230

main91161-71250×2iTR11,15..CTM,SUE197610-197910

*12-1.25PX50-30

47710BBOLT, UNION(FOR FRONT DISC BRAKE CALIPER)

main90401-10098×2iTR11,15..CTM,SUE197610-198101

47710CUNION(FOR FRONT DISC BRAKE CALIPER)

main90404-10007iTR11,15..CTM,SUE197610-197910

RH

main90404-10008iTR11,15..CTM,SUE197610-197910

LH

main90404-10016iTR15..CTM,SUE197910-198101

RH

main90404-10017iTR15..CTM,SUE197910-198101

LH

47710DGASKET(FOR FRONT DISC BRAKE CALIPER UNION)

main90430-10074×4iTR11,15..CTM,SUE197610-198101

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-14010iTR11,15..CTM,SUE197610-197910

main04479-14020iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

47710LPAD KIT, DISC BRAKE, FRONT

main04491-20051iTR11..CTM197610-197806

main04491-27020iTR15..CTM,SUE197910-198006

main04491-27021iTR15..CTM,SUE198006-198101

main04491-28010iTR11,15..CTM,SUE197806-197910

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12020×2iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iTR11,15..CTM,SUE197610-198101

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14010×2iTR11,15..CTM,SUE197610-197910

main47716-27010×2iTR15..CTM,SUE197910-198101

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-14010×2iTR11,15..CTM,SUE197610-197910

main47717-27010×2iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

47718SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-14010×4iTR11,15..CTM,SUE197610-197910

main47718-27010×4iTR15..CTM,SUE197910-198101

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20020iTR11,15..CTM,SUE197610-197910

main47721-27010iTR15..CTM,SUE197910-198101

main47721-27011iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20020iTR11,15..CTM,SUE197610-197910

main47722-27010iTR15..CTM,SUE197910-198101

main47722-27011iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

47726GUIDE, FRONT DISC BRAKE CYLINDER

main47726-14010×4iTR11,15..CTM,SUE197610-197910

main47726-27010×4iTR15..CTM,SUE197910-198101

main47726-27011×4iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

47726ACLIP(FOR FRONT DISC BRAKE CYLINDER)

main90468-12134×8iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20040iTR11..CTM197610-197611

main47730-20080iTR11,15..CTM,SUE197611-197910

main47730-27010iTR15..CTM,SUE197910-198101

main47730-27011iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

47731PISTON, FRONT DISC BRAKE

main47731-14020×2iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

main47731-20030×2iTR11,15..CTM,SUE197610-197910

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-54038×2iTR11,15..CTM,SUE197610-197910

sub90522-58001

main90522-62001×2iTR15..CTM,SUE197910-198101

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20030iTR11..CTM197610-197611

main47750-20070iTR11,15..CTM,SUE197611-197910

main47750-27010iTR15..CTM,SUE197910-198101

main47750-27011iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-28010iTR15..CTM,SUE197808-197910

main47781-27010iTR15..CTM,SUE197910-198101

main47781-28010iTR11..CTM197610-197808

main47781-28020iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001×2iTR11,15..CTM,SUE197806-197910

*12-1.25PX58-23

main90102-12002×2iTR15..CTM,SUE197910-198101

*12-1.25PX53-23

main91161-71230×2iTR11,15..CTM,SUE197610-197910

*12-1.25PX30-30

sub91162-81230

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90171-12003×2iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198112-198210

main94145-51200×2iTR11..CTM197610-197806

main94145-71200×2iTR11,15..CTM,SUE197806-198101

47781DNUT(FOR DUST COVER SETTING)

main94115-51200×2iTR11,15..CTM,SUE197610-197910

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-28010iTR15..CTM,SUE197808-197910

main47782-27010iTR15..CTM,SUE197910-198101

main47782-28010iTR11..CTM197610-197808

main47782-28020iTR11;KR12,TR15..CNP,CTM,GEX,HDX,SUE198101-198210

9451201200

main94512-01200

9538103025

main95381-03025

26 parts on this diagram · 4 diagrams in section
