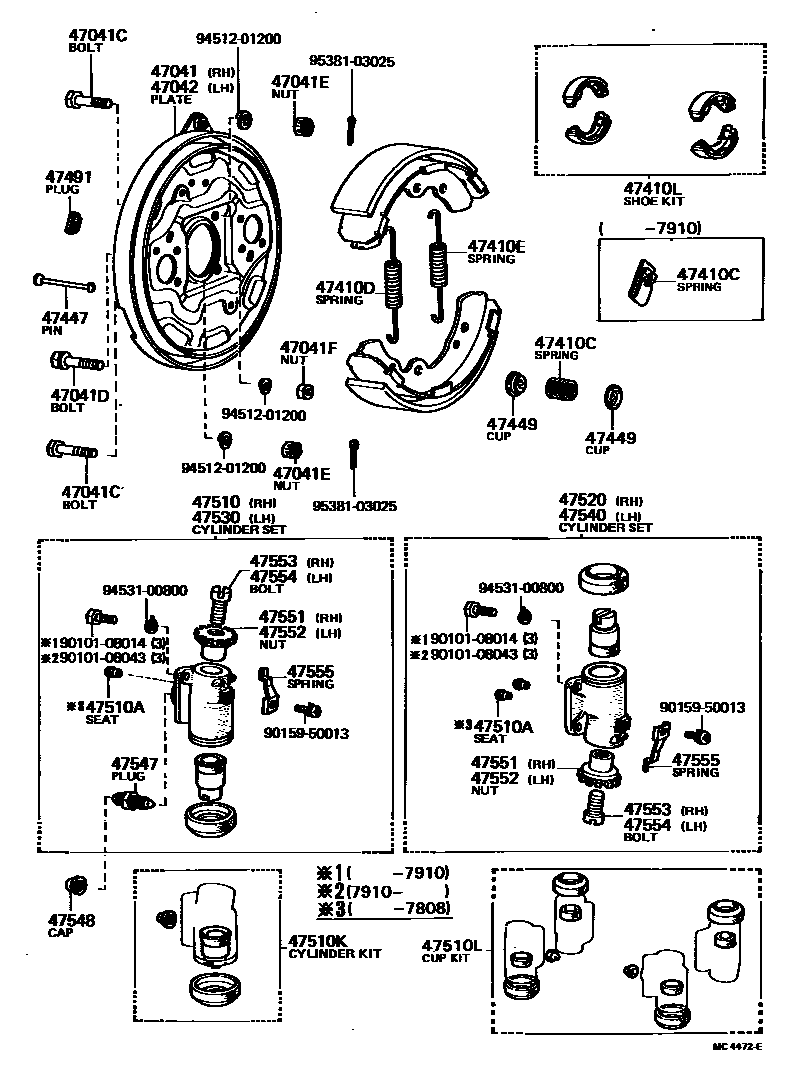

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-27020iRR11,21197911-198210

sub47041-28H00

main47041-28011iKR1#,TR1#..DLX,STD197610-197910

main47041-28020iRR10,20197808-197911

main47041-28030iKR12,TR1#197910-198101

47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90102-12001×2iKR11,RR10,20,TR1#..DLX,STD197806-197910

main90102-12055×2iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE197910-198210

*12-1.25PX56-22

main90102-12065×2iRR1#,2#197808-198210

*12-1.25PX58.5-20

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main91161-71235×2iRR10,20197808-197911

*12-1.25PX35-30

main91161-71240×2iRR10,20197808-197911

*12-1.25PX40-30

main91171-71235×2iRR11,21197911-198210

*12-1.25PX35-30

main91171-71240×2iRR11,21197911-198210

*12-1.25PX40-30

47041ENUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main94145-51200×4iKR1#,TR1#..DLX,STD197610-197806

main94145-71200×4iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE197910-198210

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94115-51200×4iKR1#,RR10,20,TR1#..DLX,STD197610-197910

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-27020iRR11,21197911-198210

sub47042-28H00

main47042-28011iKR1#,TR1#..DLX,STD197610-197910

main47042-28020iRR10,20197808-197911

main47042-28030iKR12,TR1#197910-198101

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main47446-10010×4iKR1#,RR10,20,TR1#..DLX,STD197610-197910

main90501-18017×4iKR12,RR11,21,TR1#197910-198101

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-20014×2iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

main90506-23388×2iKR1#,RR10,20,TR1#..DLX,STD197610-197910

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-20014×2iKR12,RR11,21,TR1#197910-198101

main90506-23388×2iKR1#,RR10,20,TR1#..DLX,STD197610-197910

47410LSHOE KIT, FRONT BRAKE

main04494-28010iKR1#,RR10,20,TR1#..DLX,STD197610-197910

sub04494-27011

main04494-28020iKR12,RR11,21,TR1#197910-198101

sub04494-20130

main04496-28010iKR1#,RR10,20,TR1#..DLX,STD197610-197910

REBUILT

main04496-28020iKR12,RR11,21,TR1#197910-198101

REBUILT

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-20030×4iKR1#,RR10,20,TR1#..DLX,STD197610-197910

main47447-30020×4iKR12,RR11,21,TR1#197910-198101

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020×8iKR12,RR11,21,TR1#197910-198101

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-20020×4iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

main47491-36010×4iRR1#,2#197810-198210

sub47491-36020

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-29116iKR1#,TR1#..DLX,STD197610-197910

ID=22.22

main47510-29165iRR10,20197808-197911

ID=25.4

sub47510-29166

main47510-29205iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

ID=23.81

sub47510-27040

main47520-29125iRR11,21197911-198210

ID=23.81

sub47520-27040

47510ASEAT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)

main90410-03015×6iKR1#,TR1#..DLX,STD197610-197808

47510KCYLINDER KIT, FRONT WHEEL

main04473-20051×4iKR1#,TR1#..DLX,STD197610-197910

ID=22.22

main04473-27010×4iKR12,RR11,21,TR1#197910-198101

ID=23.81

main04473-28010×4iRR10,20197808-197911

ID=25.4

47510LCUP KIT, FRONT WHEEL CYLINDER

main04905-20040iKR12,RR11,21,TR1#197910-198101

ID=23.81

main04905-20050iKR1#,TR1#..DLX,STD197610-197910

ID=22.22

main04905-28010iRR10,20197808-197911

ID=25.4

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47510-29205iRR11,21197911-198210

ID=23.81

sub47510-27040

main47520-29046iKR1#,TR1#..DLX,STD197610-197910

ID=22.22

main47520-29095iRR10,20197808-197911

ID=25.4

sub47520-29096

main47520-29125iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

ID=23.81

sub47520-27040

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-29116iKR1#,TR1#..DLX,STD197610-197910

ID=22.22

main47530-29165iRR10,20197808-197911

ID=25.4

sub47530-29166

main47530-29205iKR12,TR1#197910-198101

ID=23.81

sub47530-27040

main47540-29125iRR11,21197911-198210

ID=23.81

sub47540-27040

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47530-29205iRR11,21197911-198210

ID=23.81

sub47530-27040

main47540-29046iKR1#,TR1#..DLX,STD197610-197910

ID=22.22

main47540-29095iRR10,20197808-197911

ID=25.4

sub47540-29096

main47540-29125iKR12,TR1#197910-198101

ID=23.81

sub47540-27040

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010×2iKR1#,RR10,20,TR1#..DLX,STD197610-197910

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2iKR1#,RR10,20,TR1#..DLX,STD197610-197910

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-20010×2iKR1#,RR10,20,TR1#..DLX,STD197610-197910

LH SCREW

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-20010×2iKR1#,RR10,20,TR1#..DLX,STD197610-197910

RH SCREW

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-20010×2iKR1#,RR10,20,TR1#..DLX,STD197610-197910

LH SCREW

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-20010×2iKR1#,RR10,20,TR1#..DLX,STD197610-197910

RH SCREW

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-20011×4iKR1#,RR10,20,TR1#..DLX,STD197610-197910

9010108014

main90101-08014

9010108043

main90101-08043

9015950013

main90159-50013

9451201200

main94512-01200

9453100800

main94531-00800

9538103025

main95381-03025

33 parts on this diagram · 2 diagrams in section
