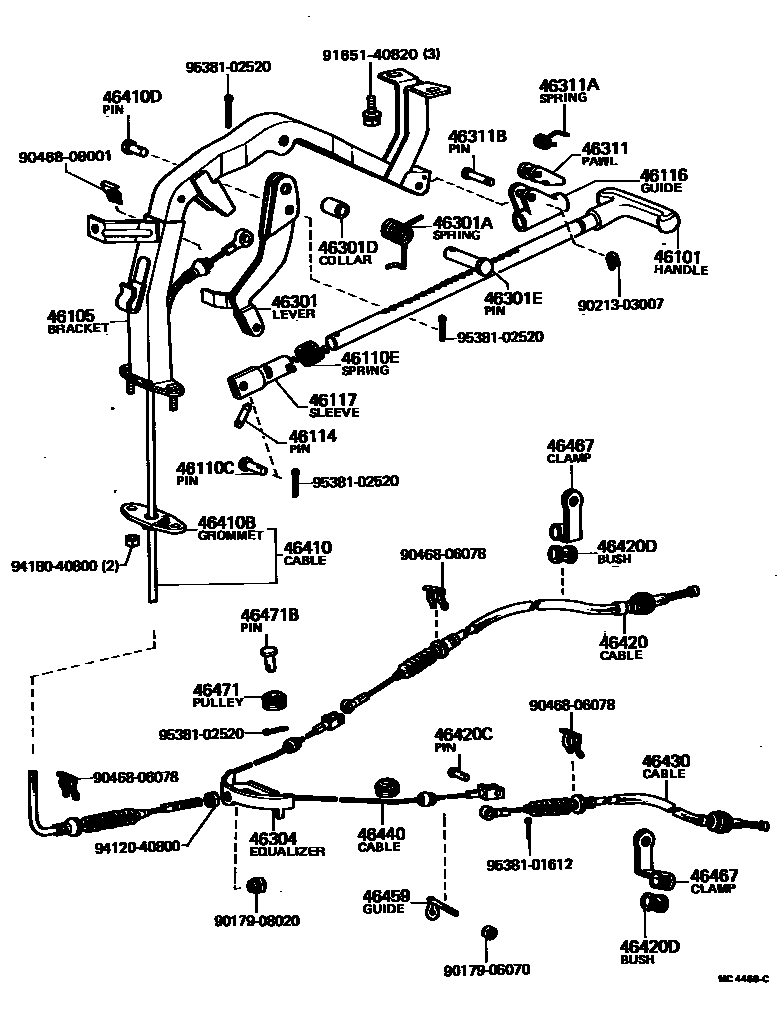

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-26030iRR1#,2#197808-198210

main46101-28010iKR1#,TR1#..MTM197610-198210

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46105-28010iKR1#,TR1#..MTM197610-198210

46110CPIN(FOR PARKING BRAKE HANDLE SET)

main90240-08094iKR1#,TR1#..MTM197610-198210

46110ESPRING, TORSION(FOR PARKING BRAKE PLUNGER)

main90508-14038iKR1#,TR1#..MTM197610-198210

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iRR1#,2#197808-198210

main46114-30010iKR1#,TR1#..MTM197610-198210

46116GUIDE, PARKING BRAKE PLUNGER

main46116-30010iKR1#,TR1#..MTM197610-198210

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30010iKR1#,TR1#..MTM197610-198210

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-28010iKR1#,TR1#..MTM197610-198210

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90508-30001iKR1#,TR1#..MTM197610-198210

46301DCOLLAR(FOR INTERMEDIATE LEVER)

main90387-12002iKR1#,TR1#..MTM197610-198210

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-12003iKR1#,TR1#..MTM197610-198210

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-26010iRR1#,2#197808-198210

main46341-35010iKR1#,TR1#197610-198210

46311PAWL, PARKING BRAKE

main46311-28010iKR1#,TR1#..MTM197610-198210

main46311-30041×2iRR1#,2#197808-198210

46311ASPRING(FOR PARKING BRAKE PAWL)

main90506-07007iTR15..3FC198101-198210

main90508-08041iKR1#,TR1#..MTM197610-198210

main90508-08106iRR1#,2#197808-198210

46311BPIN, PARKING BRAKE PAWL PIVOT

main46313-40010×2iRR1#,2#197808-198210

main90249-05010iKR1#,TR1#..MTM197610-198210

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28010iKR1#,TR1#..MTM197610-198210

L=826

main46410-28020iRR1#,2#197808-198210

main46410-28030iTR15..3FC198101-198210

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-20004iRR1#,2#197808-198210

main90480-23001iKR1#,TR1#..MTM197610-198210

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-10148iKR1#,TR1#..MTM197610-198210

main90249-10012iTR15..3FC198101-198210

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28020iRR10197808-197909

main46420-28021iRR10;RR11..T1,T3197909-198210

main46420-28030iRR20197808-197909

main46420-28031iRR20;RR21..T1,T3197909-198210

main46420-28040iRR11..T2197911-198210

main46420-28060iRR21..T2197911-198210

main46430-28010iKR1#,TR1#197610-197909

main46430-28011iKR1#,TR1#197909-198210

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-06032×2iKR1#,RR1#,2#,TR1#197610-198210

46420DGROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP)

main90385-13051×2iKR1#,TR1#197610-198210

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28010iKR1#,TR1#197610-197909

main46430-28011iKR1#,TR1#197909-198210

main46430-28020iRR10197808-197909

main46430-28021iRR10197909-197911

main46430-28030iRR20197808-197909

main46430-28031iRR20197909-197911

main46430-28040iRR11..T2197911-198210

main46430-28050iRR21..T2197911-198210

main46430-28060iRR11..T1,T3197911-198210

main46430-28070iRR21..T1,T3197911-198210

46440CABLE ASSY, PARKING BRAKE, NO.4

main46420-28010iKR1#,TR1#..MTM197610-198210

L=2752

main46420-28070iTR15..3FC198101-198210

46459GUIDE, CABLE

main46465-28010×2iKR1#,TR1#197610-198210

46467CLAMP, CABLE

main46467-28010iKR1#,TR1#197610-198210

RH

main46467-28021iRR10,20197808-197911

RH

main46467-28060iRR11,21..T2197911-198210

RH

main46487-28010iKR1#,TR1#197610-198210

LH

main46487-28021iRR10,20197808-197911

LH

main46487-28022iRR11,21..T1,T3197911-198210

LH

main46487-28050iRR11,21..T2197911-198210

LH

46471PULLEY, WIRE

main46471-20010iRR1#,2#197808-198210

main46471-28010×2iKR1#,TR1#197610-198210

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08062iRR1#,2#197808-198210

main90240-10083×2iKR1#,TR1#197610-198210

9017906070

main90179-06070

9017908020

main90179-08020

9021303007

main90213-03007

9046806078

main90468-06078

9046808001

main90468-08001

9165140820

main91651-40820

9412040800

main94120-40800

9418040800

main94180-40800

9538101612

main95381-01612

9538102520

main95381-02520

37 parts on this diagram · 3 diagrams in section
