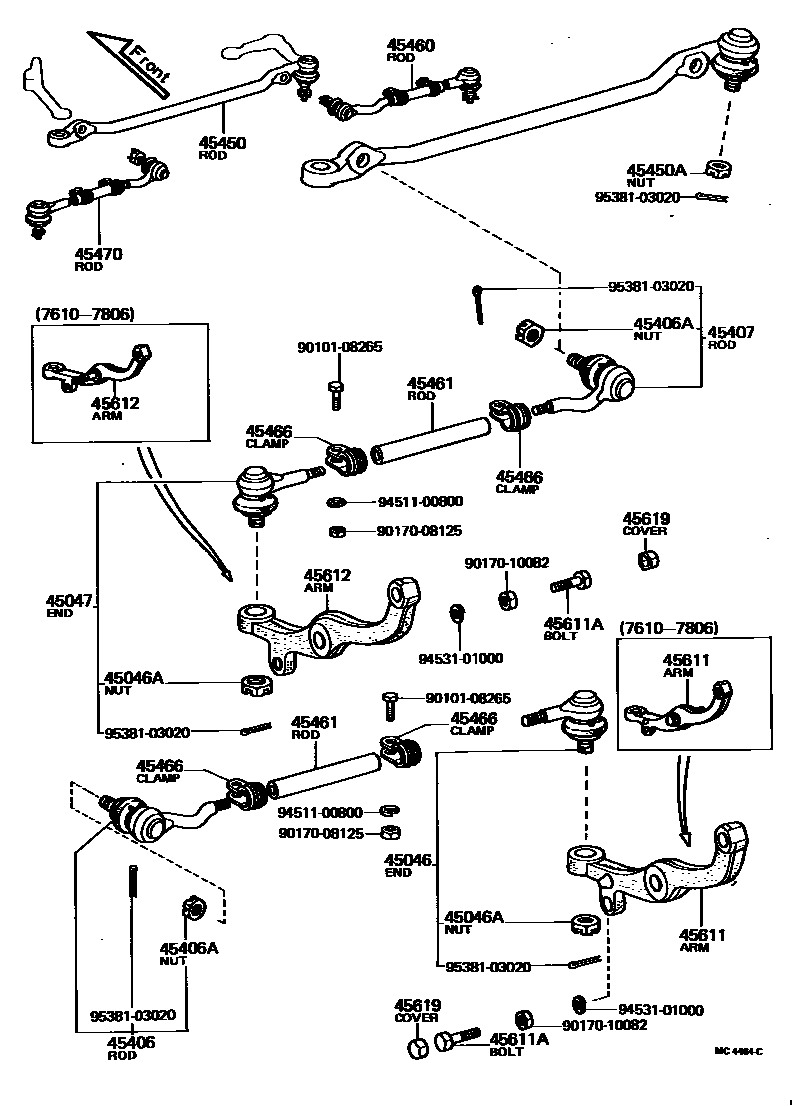

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29075iKR1#,RR1#,2#,TR1#197610-198210

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iKR1#,RR1#,2#,TR1#197610-198210

45047END SUB-ASSY, TIE ROD, LH

main45046-29075iKR1#,RR1#,2#,TR1#197610-198210

45406ROD SUB-ASSY, TIE, RH

main45406-19016iKR1#,RR1#,2#,TR1#197610-198210

45406ANUT, CASTLE(FOR TIE ROD)

main90171-12028×2iKR1#,RR1#,2#,TR1#197610-198210

45407ROD SUB-ASSY, TIE, LH

main45406-19016iKR1#,RR1#,2#,TR1#197610-198210

45450ROD ASSY, STEERING RELAY

main45450-29025iKR1#,TR1#197610-198210

main45450-29055iRR1#,2#197808-198210

45450ANUT, CASTLE(FOR RELAY ROD)

main90171-12028iKR1#,RR1#,2#,TR1#197610-198210

45460ROD ASSY, TIE, RH

main45460-29095iKR1#,TR1#197610-198210

main45460-29135iRR1#,2#197808-198210

45461ROD, STEERING TIE

main45465-14010×2iRR1#,2#197808-198210

main45465-28010×2iKR1#,TR1#197610-198210

45466CLAMP, TIE ROD END

main45466-22010×4iKR1#,RR1#,2#,TR1#197610-198210

45470ROD ASSY, TIE, LH

main45460-29095iKR1#,TR1#197610-198210

main45460-29135iRR1#,2#197808-198210

45611ARM, STEERING KNUCKLE, RH

main45601-28010iKR1#,TR1#197610-197806

main45611-28010iKR1#,RR1#,2#,TR1#197806-198210

45611ABOLT, KNUCKLE STOPPER

main90106-10032×2iKR1#,RR1#,2#,TR1#197610-198210

45612ARM, STEERING KNUCKLE, LH

main45606-28010iKR1#,TR1#197610-197806

main45612-28010iKR1#,RR1#,2#,TR1#197806-198210

45619COVER, KNUCKLE STOPPER

main45619-14010×2iKR1#,TR1#197610-197803

main45619-14020×2iKR1#,RR1#,2#,TR1#197803-198210

9010108265

main90101-08265

9017008125

main90170-08125

9017010082

main90170-10082

9451100800

main94511-00800

9453101000

main94531-01000

9538103020

main95381-03020

22 parts on this diagram · 3 diagrams in section
