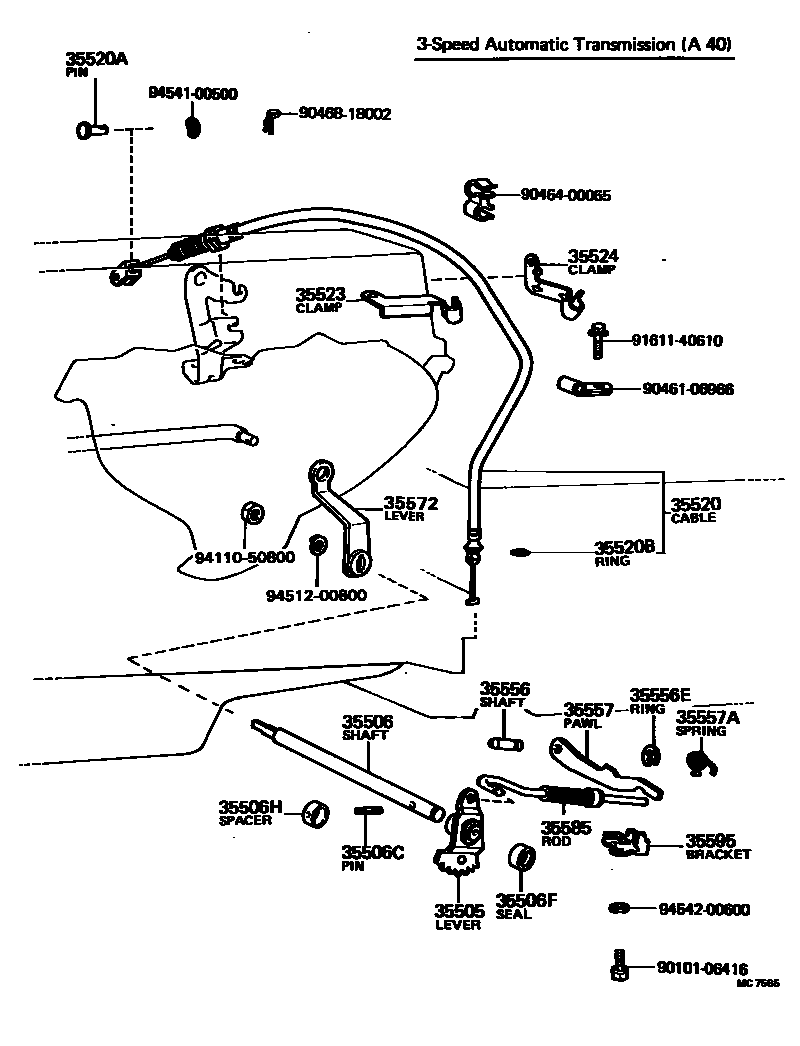

THROTTLE LINK & VALVE LEVER (ATM)

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22010iTR15..3FC198101-198210

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-20021iTR15..3FC198101-198210

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-03004iTR15..3FC198101-198210

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11128×2iTR15..3FC198101-198210

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iTR15..3FC198101-198210

35520CABLE ASSY, THROTTLE

main35520-12050iTR15..3FC198101-198210

35520APIN, THROTTLE CABLE

main90240-05139iTR15..3FC198101-198210

35520BRING, O(FOR THROTTLE CABLE)

main90301-09063iTR15..3FC198101-198210

35523CLAMP, THROTTLE CABLE

main35523-12023iTR15..3FC198101-198108

main35523-14030iTR15..3FC198108-198210

35524CLAMP, THROTTLE CABLE, NO.2

main35524-28010iTR15..3FC198101-198210

35556SHAFT, PARKING LOCK PAWL

main35556-22010iTR15..3FC198101-198210

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iTR15..3FC198101-198210

35557PAWL, PARKING LOCK

main35557-22010iTR15..3FC198101-198210

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-25001iTR15..3FC198101-198210

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-28010iTR15..3FC198101-198210

35585ROD, PARKING LOCK

main35501-22020iTR15..3FC198101-198210

35595BRACKET, PARKING LOCK PAWL

main35595-16010iTR15..3FC198101-198210

9010106416

main90101-06416

9046106966

main90461-06966

9046400065

main90464-00065

9046818002

main90468-18002

9161140610

main91611-40610

9411050800

main94110-50800

9451200800

main94512-00800

9454100500

main94541-00500

9454200600

main94542-00600

26 parts on this diagram · 1 diagram in section
