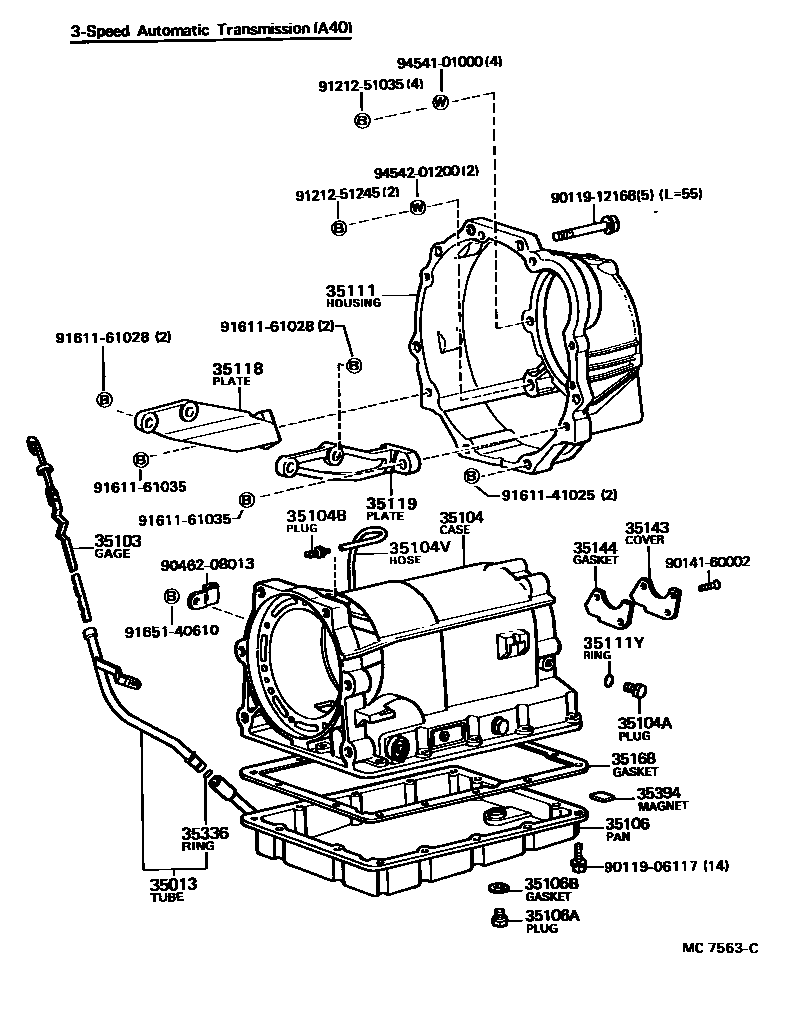

TRANSMISSION CASE & OIL PAN (ATM)

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-28010iTR15..3FC198101-198210

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-14022iTR15..3FC198101-198210

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22024iTR15..3FC198101-198106

main35104-22025iTR15..3FC198106-198210

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iTR15..3FC198106-198210

main90341-08079×2iTR15..3FC198101-198106

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03084iTR15..3FC198101-198210

35104VHOSE (FOR BREATHER PLUG)

main90445-10008iTR15..3FC198101-198210

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22020iTR15..3FC198101-198210

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iTR15..3FC198101-198210

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iTR15..3FC198101-198210

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-14050iTR15..3FC198101-198210

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iTR15..3FC198101-198210

35118PLATE, STIFENER, RH (ATM)

main33118-12020iTR15..3FC198101-198210

35119PLATE, STIFENER, LH (ATM)

main33119-12011iTR15..3FC198101-198210

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iTR15..3FC198101-198210

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iTR15..3FC198101-198210

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iTR15..3FC198101-198210

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iTR15..3FC198101-198210

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iTR15..3FC198101-198210

9011906117

main90119-06117

9011912168

main90119-12168

9014160002

main90141-60002

9046208013

main90462-08013

9121251035

main91212-51035

9121251245

main91212-51245

9161141025

main91611-41025

9161161028

main91611-61028

9161161035

main91611-61035

9165140610

main91651-40610

9454101000

main94541-01000

9454201200

main94542-01200

30 parts on this diagram · 1 diagram in section
