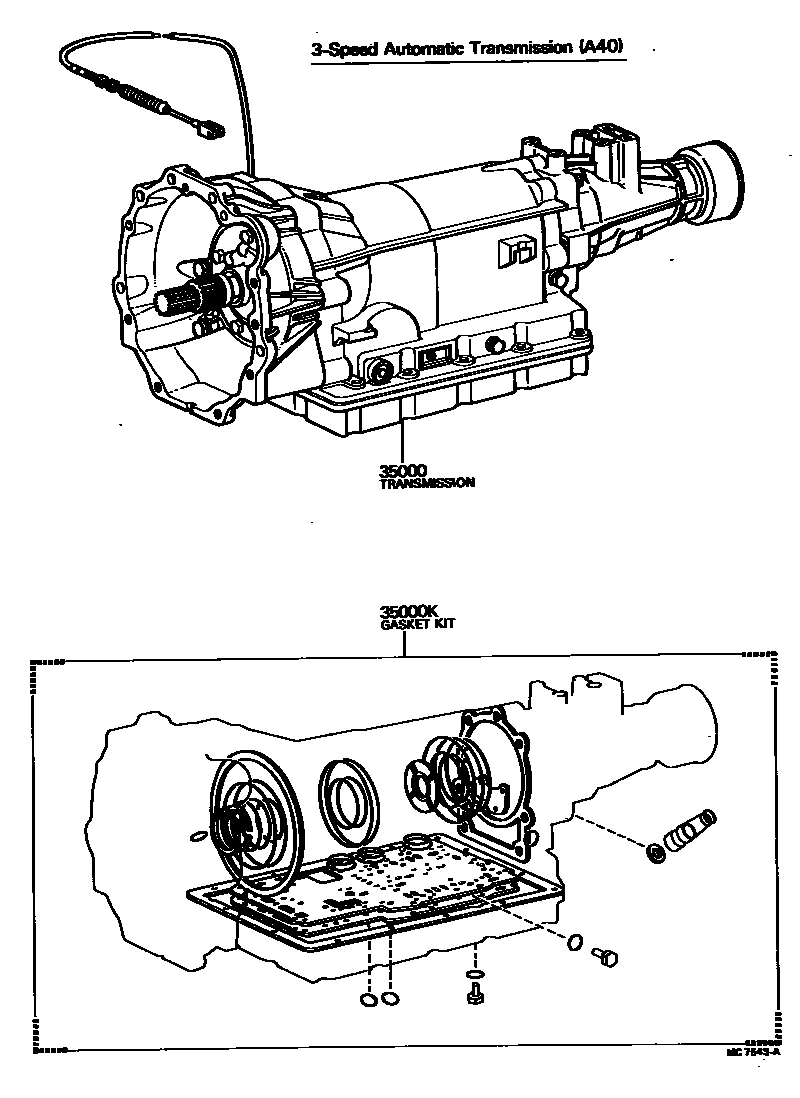

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

35000TRANSMISSION ASSY, AUTOMATIC

main35000-28010i198101-198210

SMG R=20:6

35000KGASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-22021i198101-198108

main04351-22022i198108-198108

main04351-22023i198108-198210

2 parts on this diagram · 1 diagram in section
