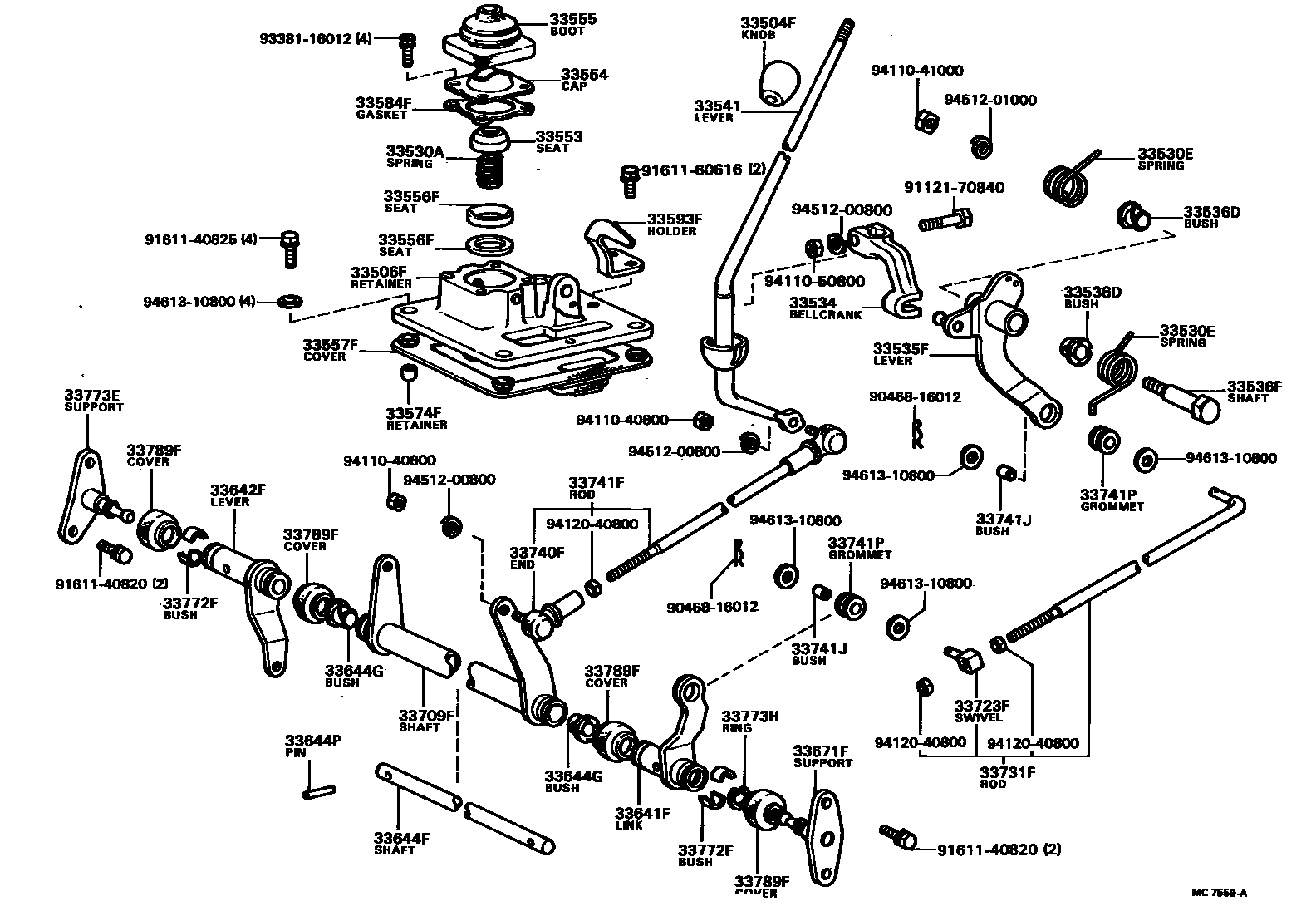

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BROWN,BROWN
LEATHER,BROWN,BROWN
BROWN,BROWN
BROWN,BROWN
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33530ASPRING, COMPRESSION (FOR SHIFT LEVER)
33530ESPRING, TENSION (FOR SELECT RETURN)
LH
RH
33534BELLCRANK, SELECTING
33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)
33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)
33536FSHAFT, CONTROL SELECT LEVER (FOR FLOOR SHIFT)
33541LEVER, SHIFT
33553SEAT, SHIFT LEVER SPRING
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
T=3.0
T=6.5
33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33574FRETAINER, DUST SEAL (FOR FLOOR SHIFT)
33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33593FHOLDER, SPRING (FOR FLOOR SHIFT)
33641FLINK, SELECTING (FOR FLOOR SHIFT)
33642FLEVER, GEAR SELECTING, NO.2
33644FSHAFT, GEAR SELECTING
33644GBUSH (FOR GEAR SELECTING SHAFT)
33644PPIN (FOR GEAR SELECTING SHAFT)
33671FSUPPORT, CONTROL ROD, NO.1
33709FSHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33731FROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)
33740FEND ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
SHIFTING NO.1,SELECTING NO.2
SHIFTING NO.2
33741FROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33741JBUSH, NO.2 (FOR SHIFTING OR SELECTING ROD)
33741PGROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD)
33772FBUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)
33773ESUPPORT, CROSS SHAFT, NO.1
33773HRING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)
33789FCOVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
OUTER,RH
OUTER,LH
INNER
9046816012
main90468-16012
9112170840
main91121-70840
9161140820
main91611-40820
9161140825
main91611-40825
9161160616
main91611-60616
9338116012
main93381-16012
9411040800
main94110-40800
9411041000
main94110-41000
9411050800
main94110-50800
9412040800
main94120-40800
9451200800
main94512-00800
9451201000
main94512-01000
9461310800
main94613-10800
47 parts on this diagram · 3 diagrams in section
