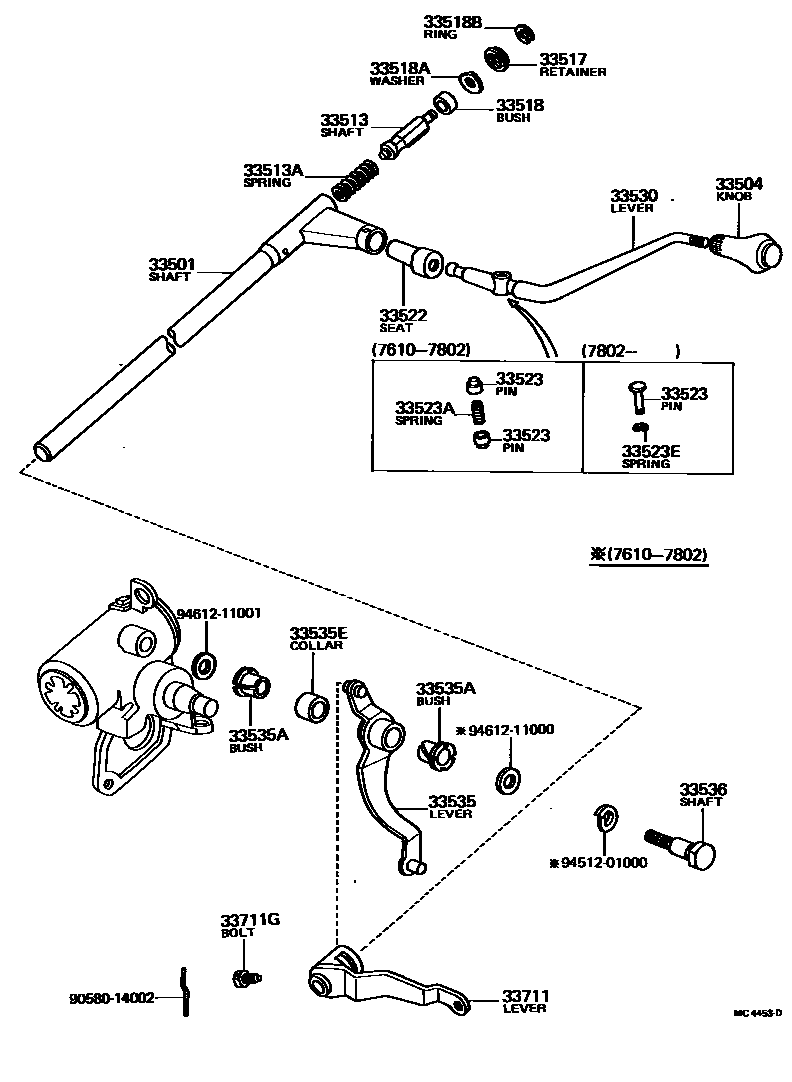

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-28010iKR10,TR1#197610-197802

main33501-28011iKR1#,TR1#..4H197802-198210

main33501-28020iRR1#,2#197808-198210

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30070iKR1#,RR1#,2#,TR1#..4H197610-198210

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-28010iKR10,TR1#197610-197802

main33513-36011iKR11,TR1#197802-197910

main33513-36020iRR10,20197808-197911

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iKR1#,RR1#,2#,TR1#..4H197610-198210

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iKR1#,RR1#,2#,TR1#..4H197610-198210

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-36010iKR1#,RR1#,2#,TR1#..4H197610-198210

33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

main33515-30010iKR1#,RR1#,2#,TR1#..4H197610-198210

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iKR1#,RR1#,2#,TR1#..4H197610-198210

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-35010iKR10,TR1#197610-197802

main33522-36010iKR1#,RR1#,2#,TR1#..4H197802-198210

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main33523-35010×2iKR10,TR1#197610-197802

main90249-07001iKR1#,RR1#,2#,TR1#..4H197802-198210

33523ASPRING, COMPRESSION

main90501-04062iKR10,TR1#197610-197802

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iKR1#,RR1#,2#,TR1#..4H197802-198210

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-28010iKR10,TR1#197610-197802

main33541-28011iKR1#,TR1#..4H197802-198210

main33541-28020iRR1#,2#197808-198210

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-28010iKR1#,TR1#..4H197610-198210

main33535-28020iRR1#,2#197808-198210

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007×2iKR1#,RR1#,2#,TR1#..4H197610-198210

33535ECOLLAR (FOR CONTROL SELECT LEVER)

main90387-10016iKR1#,TR1#..4H197610-198210

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-25010iRR1#,2#197808-198210

main91111-51040iKR10,TR1#197610-197802

main91651-41040iKR1#,TR1#..4H197802-198210

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-26030iRR1#,2#197808-198210

main33527-28010iKR1#,TR1#..4H197610-198210

33711GBOLT, CONTROL SHAFT LEVER LOCK

main33218-35010iKR1#,RR1#,2#,TR1#..4H197610-198210

9058014002

main90580-14002

9451201000

main94512-01000

9461211000

main94612-11000

9461211001

main94612-11001

23 parts on this diagram · 5 diagrams in section
