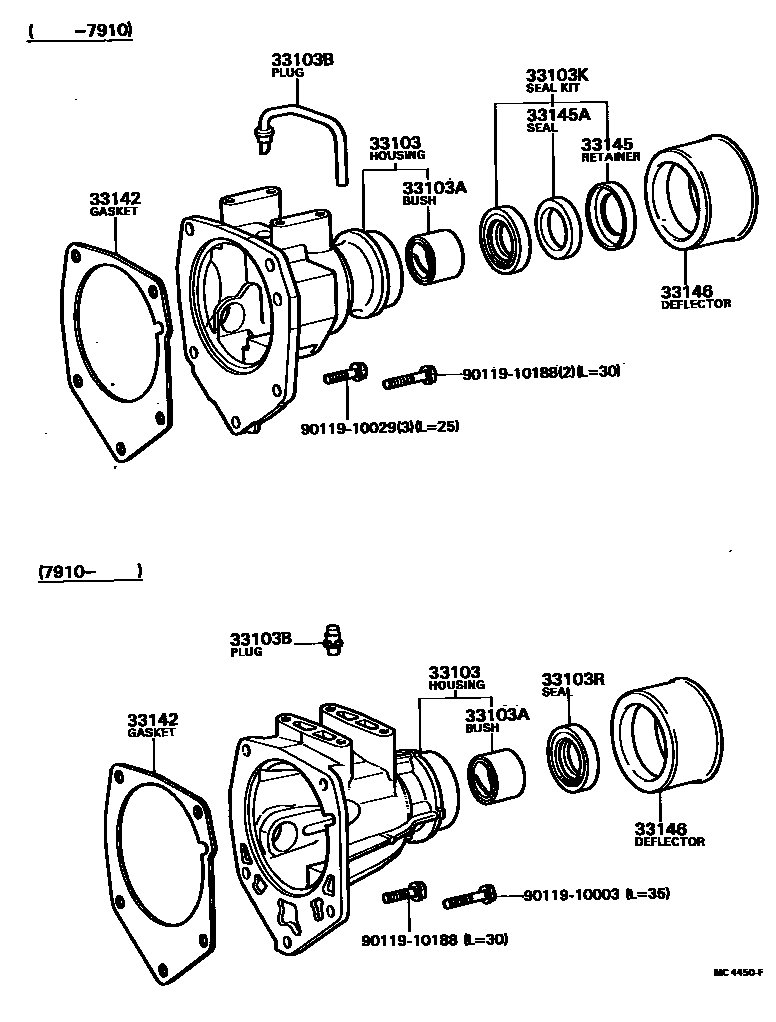

EXTENSION HOUSING (MTM)

0001 1 0002 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-26020iKR1#,RR10,20,TR1#197610-197910

main33103-26030iTR1#..5F198101-198210

main33103-27020iKR12,RR11,21,TR1#..4H197910-198210

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iKR1#,RR1#,2#,TR1#..MTM197610-198210

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03053iKR1#,RR10,20,TR1#197610-197910

main90930-03075iKR12,RR11,21,TR1#..4H197910-198210

33103KSEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main04332-30010iKR1#,RR10,20,TR1#197610-197910

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38043iKR12,RR11,21,TR1#..MTM197910-198210

33142GASKET, EXTENSION HOUSING(MTM)

main33142-26010iKR1#,RR1#,2#,TR1#..4H197610-198210

main33142-35030iTR1#..5F198101-198210

33145RETAINER, EXTENSION HOUSING DUST SEAL(MTM)

main33145-30010iKR1#,RR10,20,TR1#197610-197910

33145ASEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90303-38010iKR1#,RR10,20,TR1#197610-197910

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iKR1#,RR1#,2#,TR1#..MTM197610-198210

9011910003

main90119-10003

9011910029

main90119-10029

9011910188

main90119-10188

12 parts on this diagram · 2 diagrams in section
