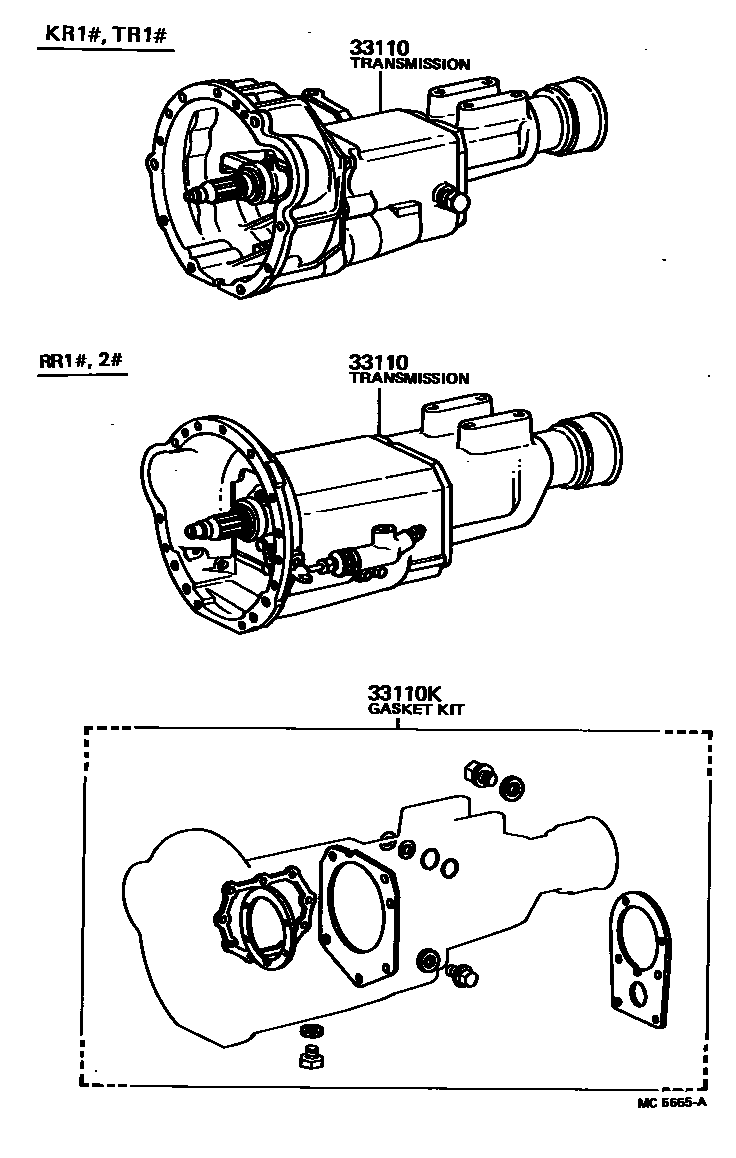

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

33110TRANSMISSION ASSY, MANUAL

main33030-28030iKR12198210-198210

SMG=4

main33030-28040iRR11,21..T1,T3198210-198210

SMG=5

main33030-28050iRR11,21..T2198210-198210

SMG=5

main33030-28060iTR11..DLX198210-198210

SMG=5

main33030-28070iTR15..4H198210-198210

SMG=5

main33110-28010iKR10197610-197708

SMG R=17:4

main33110-28011iKR10197708-197802

SMG R=17:4

main33110-28020iTR10,11197610-197910

SMG R=19:5

main33110-28030iTR11197610-197808

SMG R=19:5,COLD SPEC

main33110-28040iKR11197802-197910

SMG R=17:4

main33110-28050iTR15197910-198007

SMG R=17:5

main33110-28051iTR15..4H198007-198210

SMG R=17:5

main33110-28060iTR15197910-198007

SMG R=17:5,COLD SPEC

main33110-28070iRR10,20197808-197911

SMG R=17:5

main33110-28080iKR12197910-198210

SMG R=16:4

main33110-28090iKR12197910-198210

SMG R=17:4,DIFF R=5.125

main33110-28101iTR11197910-198007

SMG R=19:5,COLD SPEC

main33110-28110iRR11,21..T1,T3197911-197912

SMG R=17:5

main33110-28111iRR11,21..T1,T3197912-198210

SMG R=17:5

main33110-28120iRR11,21..T2197911-197912

SMG R=19:5

main33110-28121iRR11,21..T2197912-198210

SMG R=19:5

main33110-28140iTR11197910-198007

SMG R=19:5

main33110-28141iTR11..4H198007-198210

SMG R=19:5

main33110-28150iTR15..5F198101-198210

SMG=6

main33110-28160iTR11..5F198101-198210

SMG=5

33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-26010iKR1#,RR1#,2#,TR1#..4H197610-198210

main04331-35071iTR1#..5F198101-198210

2 parts on this diagram · 2 diagrams in section
