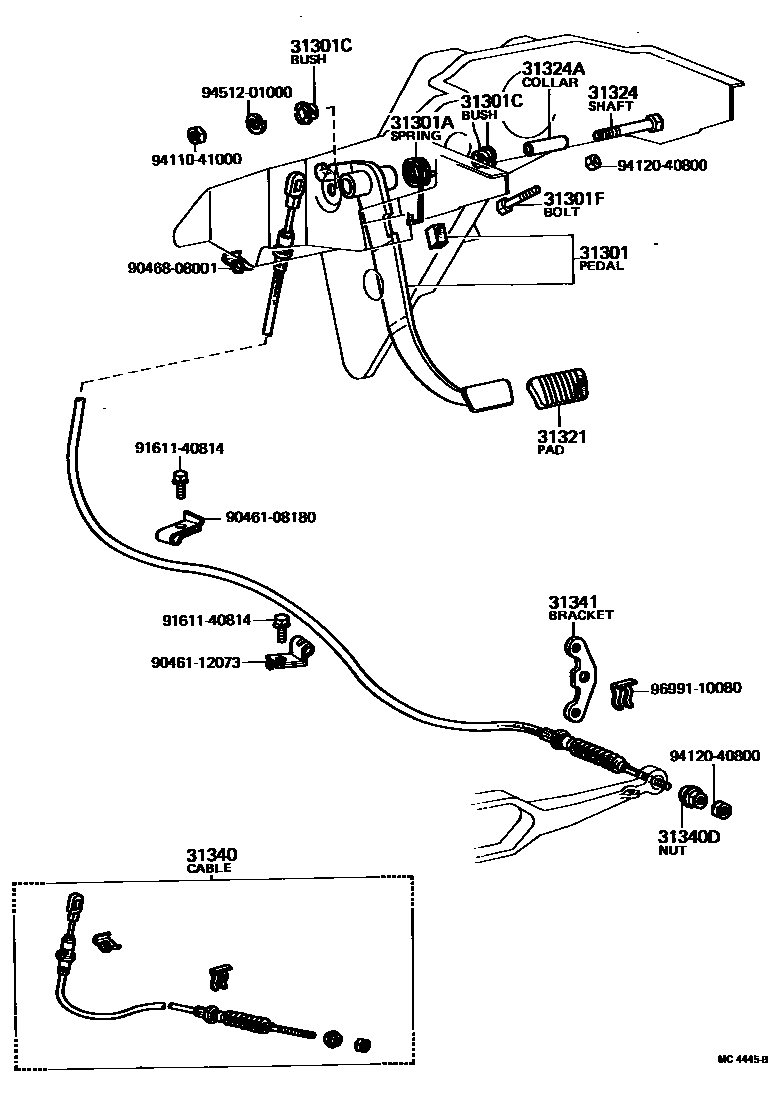

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-28010iKR1#197610-198101

main31301-28020iTR1#197610-198101

main31301-28030iRR1#,2#197808-198210

main31301-28040iTR1#..MTM198101-198210

main31301-28050iKR12198101-198210

31301ASPRING(FOR CLUTCH PEDAL)

main90508-32002iKR1#,RR1#,2#,TR1#..MTM197703-198210

main90508-35131iKR10,TR1#197610-197703

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iKR1#,RR1#,2#,TR1#..MTM197610-198210

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main91131-50835iKR1#,RR1#,2#,TR1#..MTM197610-198210

31321PAD, CLUTCH PEDAL

main31321-20020iKR1#,RR1#,2#,TR1#..MTM197610-198210

31324SHAFT, CLUTCH PEDAL

main91111-51060iKR1#,RR1#,2#,TR1#..MTM197610-198210

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iKR1#,RR1#,2#,TR1#..MTM197610-198210

31340CABLE ASSY, CLUTCH RELEASE

main31340-29045iKR1#197610-198210

31340DNUT, WIRE ADJUST(FOR CLUTCH RELEASE CABLE)

main31339-27010iKR1#197610-198007

main31339-28010iKR12198007-198210

31341BRACKET, CLUTCH CABLE

main31341-28010iKR1#197610-198210

9046108180

main90461-08180

9046112073

main90461-12073

9046808001

main90468-08001

9161140814

main91611-40814

9411041000

main94110-41000

9412040800

main94120-40800

9451201000

main94512-01000

9699110080

main96991-10080

18 parts on this diagram · 2 diagrams in section
