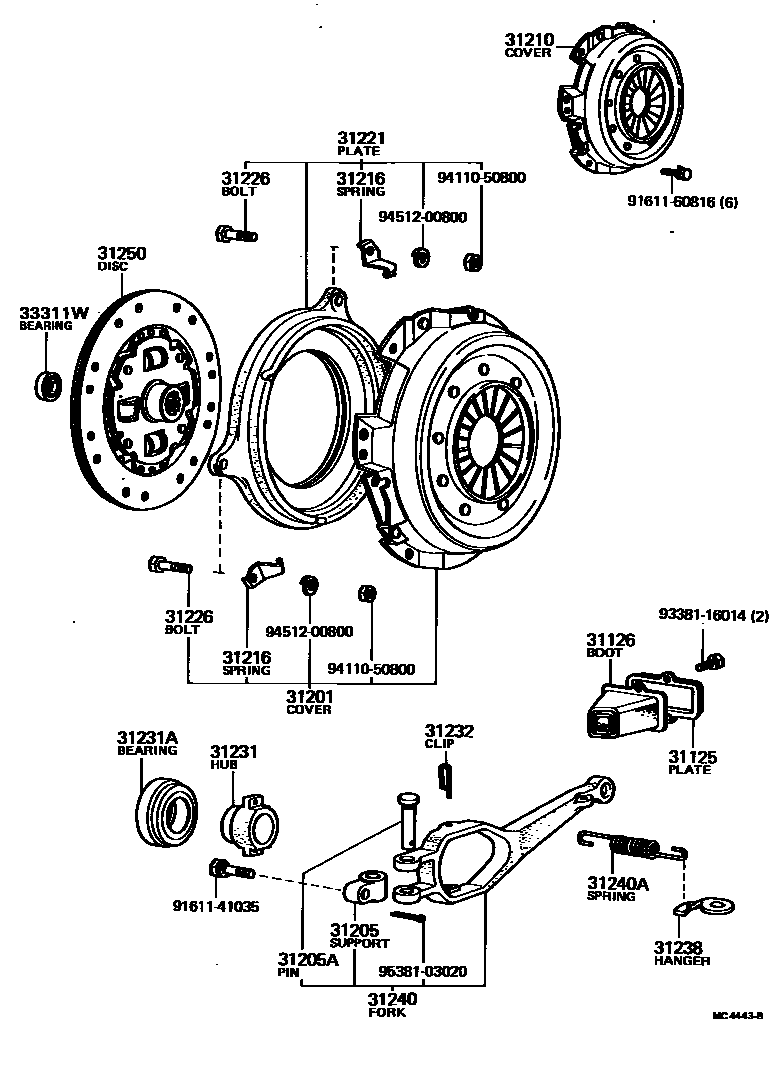

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1

31125PLATE, RELEASE FORK BOOT

main31125-27010iKR1#197610-197910

31126BOOT, CLUTCH RELEASE FORK

main31126-20040iTR1#..4H197610-198210

main31126-20070iTR1#..5F198101-198210

main31126-26010iRR1#,2#197808-198210

main31126-27010iKR1#197610-197910

main31126-27020iKR12197910-198210

31201COVER SUB-ASSY, CLUTCH

main31201-29067iKR1#197610-197908

main31201-29068iKR1#197908-198101

main31201-29075iTR15197808-197908

main31201-29076iTR15197908-198010

main31201-29085iTR15..MTM198010-198210

main31201-29105iKR12198101-198210

main31201-39045iRR10,20,TR10,11197610-197908

main31201-39046iRR1#,2#,TR10,11197908-198004

main31201-39047iRR11,21,TR11198004-198210

31205SUPPORT SUB-ASSY, RELEASE FORK

main31205-30010iKR10,11,RR1#,2#197610-198210

31205APIN, W/SERRATION(FOR RELEASE FORK SUPPORT)

main90245-10072iKR10,11,RR1#,2#197610-198210

31210COVER ASSY, CLUTCH

main31210-20091iKR1#197610-197908

main31210-20092iKR1#197908-198101

main31210-20093iKR12198101-198210

main31210-26020iTR15197808-197908

main31210-26021iTR15197908-198101

main31210-26030iTR15..MTM198101-198210

main31210-35040iRR10,20,TR10,11197610-197908

main31210-35041iRR1#,2#,TR10,11197908-198004

main31210-35042iRR11,21,TR11198004-198210

31216SPRING, CLUTCH RETRACTING

main31216-20020×3iKR1#197610-198210

main31216-30010×3iRR1#,2#,TR1#..MTM197610-198210

31221PLATE, CLUTCH PRESSURE

main31221-29015iKR1#197610-198210

main31221-29035iTR15..MTM197808-198210

main31221-39045iRR1#,2#,TR10,11197610-198210

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08350×3iKR1#,RR1#,2#,TR1#..MTM197610-198210

31231HUB, CLUTCH RELEASE BEARING

main31231-20021iKR10197610-197708

main31231-20040iTR10,11197610-197903

main31231-20041iTR10,11197903-198007

main31231-20090iTR1#..5F198101-198210

main31231-27010iKR1#197708-197903

main31231-27011iKR11197903-197910

main31231-27012iKR12197910-198102

main31231-27013iKR12198102-198210

main31231-27020iTR1#..4H198102-198210

main31231-30070iTR15197808-197903

main31231-30071iTR1#..4H198007-198102

main31231-35020iRR10,20197808-197903

main31231-35021iRR1#,2#197903-198007

main31231-35022iRR11,21198007-198210

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iTR15197808-198002

main90363-40003iKR1#,RR10,20,TR10,11197610-197910

main90363-40005iKR12197910-198002

main90363-40008iTR15198002-198008

OD=70

main90363-40010iRR11,21,TR11198002-198007

main90363-40013iKR12198002-198007

main90363-40015iTR15198008-198012

OD=67

main90363-40019iKR12,RR11,21,TR11..4H198009-198210

main90363-40022iTR15;TR11..5F198012-198210

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-12010×2iKR10197708-197712

main31232-20010×2iTR1#..4H198102-198210

main31232-22010×2iTR1#..5F198101-198210

main31232-30010×2iTR1#197708-197712

main31232-30020×2iKR12,RR11,21198007-198210

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-26010iRR1#,2#197808-198210

main31238-27010iKR1#197610-198210

31240FORK ASSY, CLUTCH RELEASE

main31204-20040iTR1#197610-198007

main31204-20090iTR1#..5F198101-198210

main31204-27010iKR12197910-198102

main31204-27011iKR12198102-198210

main31204-27030iTR1#..4H198102-198210

main31240-27010iKR1#197610-197910

main31240-35011iRR1#,2#197808-198007

main31240-35012iRR11,21198007-198210

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16282iRR1#,2#197808-198210

main90506-16402iTR10,11..4H197610-198210

main90506-18311iKR1#197610-198210

31250DISC ASSY, CLUTCH

main31250-14110iRR11,21,TR1#..MTM198109-198210

main31250-25020iRR11,21,TR1#..MTM198005-198109

main31250-27022iKR1#197610-197902

main31250-27023iKR1#197902-198109

main31250-27024iKR12198109-198210

main31250-28011iTR1#197610-197708

main31250-28012iRR1#,2#,TR1#197708-198005

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRR11,21198011-198210

main90363-12003iKR12,TR1#..MTM198010-198210

main97123-06001iKR1#,TR1#197610-198010

main97143-06201iRR1#,2#197808-198011

9161141035

main91611-41035

9161160816

main91611-60816

9338116014

main93381-16014

9411050800

main94110-50800

9451200800

main94512-00800

9538103020

main95381-03020

23 parts on this diagram · 5 diagrams in section
