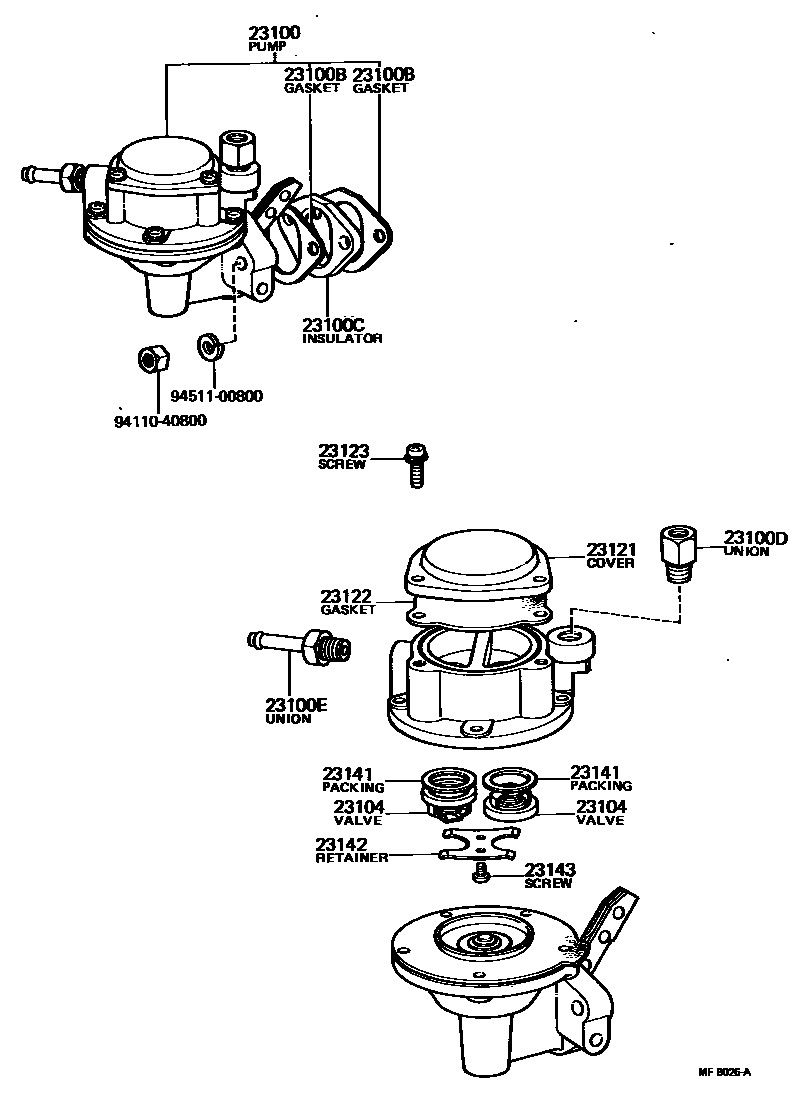

FUEL PUMP & PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 MF2000B,MF2298A

23100PUMP ASSY, FUEL

main23100-19045i4KJ..KR11197802-197910

main23100-19115i13TU,2TJ..TR1#197910-198210

main23100-29085i3KJ..KR10197610-197802

main23100-29185i12T,2TJ..TR10,11197610-197910

main23100-29245i4KJ..KR12197910-198210

main23100-29246i4KJ..KR12198210-198210

main23100-29255i13TU..TR15197808-197910

main23100-39255i12RJ..RR1#,2#197808-198108

main23100-39256i12RJ..RR11,21198108-198210

23100BGASKET, FUEL PUMP

main90923-05005×2i12RJ..RR1#,2#; 12T,13TU,2TJ..TR1#197610-198210

main90923-05006×2i3KJ,4KJ..KR1#197610-198210

23100CINSULATOR, FUEL PUMP

main90923-06001i12RJ..RR1#,2#; 12T,13TU,2TJ..TR1#197610-198210

main90923-06003i3KJ,4KJ..KR1#197610-198210

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main23116-24010i3KJ,4KJ..KR1#197610-197910

main90404-27010i13TU,2TJ..TR1#197910-198210

main90404-51244i12T,2TJ..TR10,11197610-197910

23100EUNION, NIPPLE(FOR FUEL INLET)

main23116-27020i13TU..TR15197808-197910

main23116-34030i12T,2TJ..TR10,11197610-197910

main90404-51003i3KJ..KR10197610-197612

W/COOLER

main90404-51244i3KJ,4KJ..KR1#197610-197910

23104VALVE SUB-ASSY

main23104-40010×2i3KJ..KR10197610-197802

23121COVER, FUEL PUMP

main23121-24010i3KJ..KR10197610-197802

main23121-24040i4KJ..KR11197802-197910

main23121-41030i12T,2TJ..TR10,11197610-197910

23122GASKET, FUEL PUMP COVER

main23122-24010i3KJ..KR10197610-197802

main23122-24040i4KJ..KR11197802-197910

main23122-41030i12T,2TJ..TR10,11197610-197910

23123SCREW, COVER SET, NO.1

main23123-33011×8i3KJ..KR10197610-197802

main93319-15014×8i4KJ..KR11197802-197910

23141PACKING, VALVE

main23141-60010×2i3KJ..KR10197610-197802

23142RETAINER, VALVE

main23142-30020i3KJ..KR10197610-197802

23143SCREW, VALVE RETAINER SET

main23143-60021×2i3KJ..KR10197610-197802

9411040800

main94110-40800

9451100800

main94511-00800

14 parts on this diagram · 6 diagrams in section
