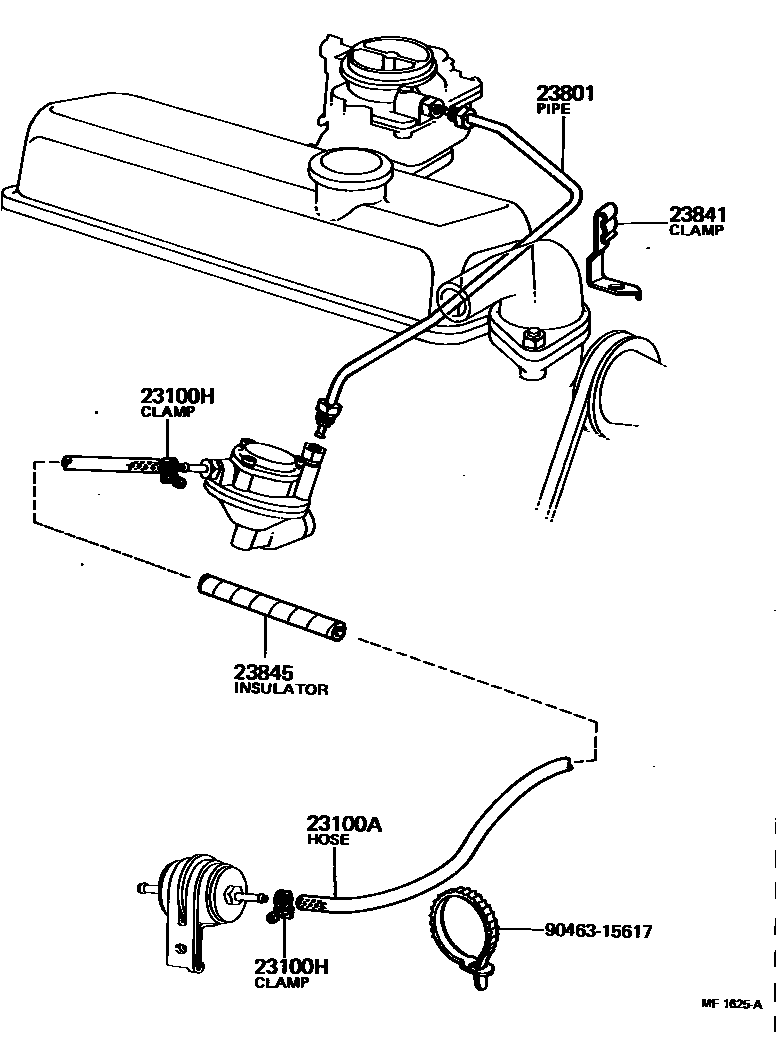

FUEL PIPE & CLAMP

0001 1 0002 1 0003 1 0004 1

23100AHOSE, FUEL

main95331-06026i12T,2TJ..TR1#197610-197706

L=260

main95331-06038i3KJ..KR10197610-197705

L=380

main95332-06026i12T,13TU,2TJ..TR1#197706-197904

L=260

main95332-06030i13TU,2TJ..TR1#197904-198210

*H,L=260

main95332-06036i12RJ..RR10,20197808-197904

L=360

main95332-06038i3KJ..KR10197705-197802

L=380

main95332-06040i12RJ..RR1#,2#197904-198210

*H,L=360

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i12RJ..RR1#,2#; 12T,13TU,2TJ..TR1#; 3KJ,4KJ..KR1#197610-198210

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-13010i4KJ..KR11197802-197910

main23801-13050i4KJ..KR12197910-198210

main23801-24011i3KJ..KR10197610-197802

main23811-31061i12RJ..RR10,20197808-197911

main23811-31070i12RJ..RR11,21197911-198210

main95331-06030i12T,2TJ..TR1#197610-197706

main95332-06030i12T,2TJ..TR1#197706-197708

main95332-06032i12T,2TJ..TR10,11197708-197904

main95332-06040i2TJ..TR10197904-197910

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-31020i12RJ..RR1#,2#197808-198210

main90461-08532i3KJ,4KJ..KR1#197610-198210

23845INSULATOR, FUEL PIPE

main88714-10010i4KJ..KR11197802-197910

9046315617

main90463-15617

6 parts on this diagram · 4 diagrams in section
