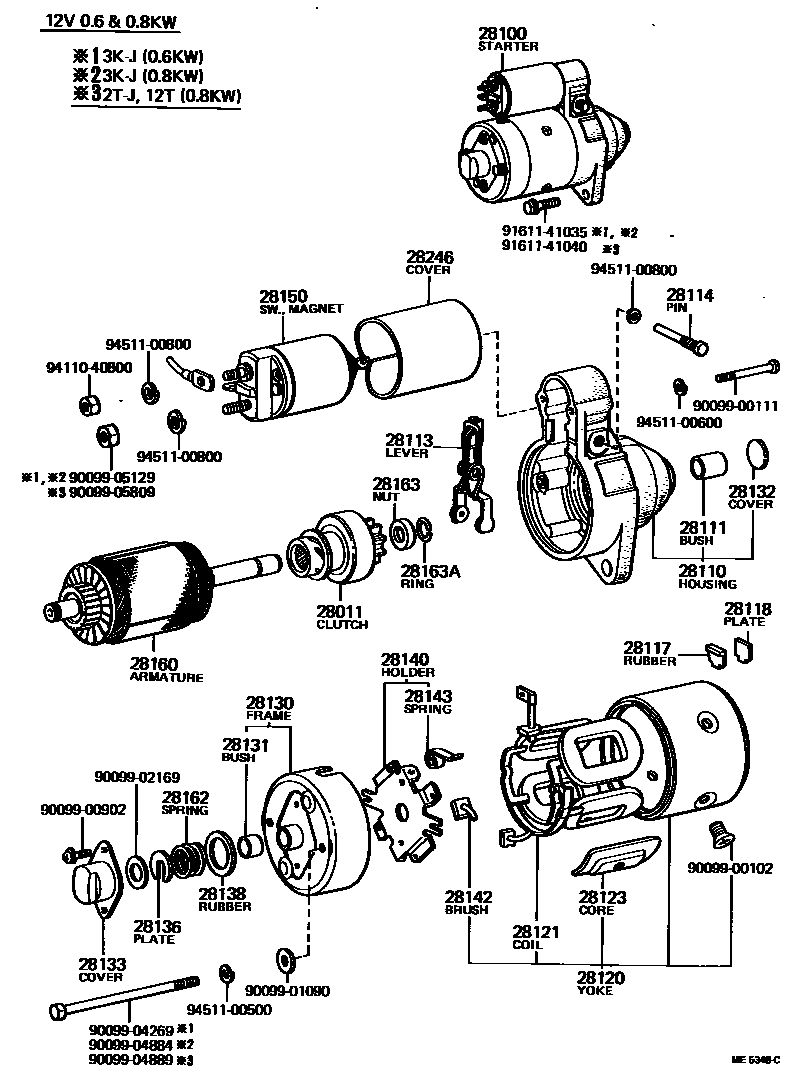

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i12RJ,13TU,4KJ,2TJ..KR12,RR11,21,TR1#197910-198210

12V 0.8KW

main28011-22020i4KJ..KR11197802-197910

main28011-22020i3KJ..KR10197610-198210

12V 0.6KW

main28011-22022i12T,2TJ..TR10,11197610-197910

12V 0.8KW

main28011-26042i12T,13TU..TR11,15197610-198210

12V 1.0KW

main28011-41011i3KJ..KR10197610-197910

12V 0.8KW

main28011-41020i2TJ..TR10197610-197910

12V 1.0KW

28100STARTER ASSY

main28100-13020i4KJ..KR12197910-198210

main28100-24031i4KJ..KR1#197802-198210

main28100-24060i4KJ..KR11197802-197910

12V 0.8KW

main28100-24070i3KJ..KR10197610-197802

12V 0.6KW

main28100-24090i3KJ..KR10197610-197802

12V 0.8KW

main28100-25021i2TJ..TR10197808-197905

12V 1.0KW

main28100-25032i2TJ..TR10197610-197808

12V 1.0KW

main28100-26021i12T,2TJ..TR1#197610-197808

12V 0.8KW

main28100-26070i13TU,2TJ..TR1#197808-198008

main28100-26080i2TJ..TR10197808-197910

12V 0.8KW

main28100-26100i12T..TR11197610-197808

12V 1.0KW

main28100-26142i13TU,2TJ..TR1#197910-198008

main28100-26150i2TJ..TR10197905-197910

12V 1.0KW

main28100-27020i13TU,2TJ..TR1#198008-198210

main28100-27050i13TU,2TJ..TR1#198008-198210

main28100-31020i12RJ..RR11,21197911-198210

main28100-40015i12RJ..RR10,20197808-197911

28110HOUSING ASSY, STARTER DRIVE

main28110-13020i4KJ..KR12197910-198210

12V 0.8KW

main28110-24010i4KJ..KR12197910-198210

12V 0.6KW

main28110-24010i3KJ,4KJ..KR1#197610-197910

12V 0.6KW,0.8KW

main28110-25011i12T,2TJ..TR10,11197610-197910

12V 0.8KW

main28110-25020i2TJ..TR10197610-197910

12V 1.0KW

main28110-26070i13TU..TR15197808-198008

12V 1.0KW

main28110-26141i13TU,2TJ..TR1#197910-198008

12V 0.8KW

main28110-27020i13TU,2TJ..TR1#198008-198210

12V 0.8KW

main28110-27030i13TU,2TJ..TR1#198008-198210

12V 1.0KW

main28110-31020i12RJ..RR11,21197911-198210

12V 0.8KW

main28115-26040i12T..TR11197610-197808

12V 1.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i4KJ..KR12197910-198210

12V 0.6KW,0.8KW

main28111-51011i12#,3KJ,4KJ,2TJ..KR1#,RR10,20,TR10,11197610-197910

12V 0.6KW,0.8KW,1.0KW

main28111-51011i13TU,2TJ..TR1#198008-198210

12V 0.8KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i12RJ,13TU,4KJ,2TJ..KR12,RR11,21,TR1#197910-198210

12V 0.8KW

main28113-25010i12T,2TJ..TR10,11197610-197910

12V 0.8KW

main28113-41011i12RJ,3KJ,4KJ..KR1#,RR10,20197610-197910

12V 1.0KW

main28113-41011i2TJ..TR10197610-197910

12V 0.6KW,0.8KW

main28113-41011i4KJ..KR12197910-198210

12V 0.6KW

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i12T,3KJ,4KJ,2TJ..KR1#,TR10,11197610-197910

12V 0.6KW,0.8KW

main28114-25010i4KJ..KR12197910-198210

12V 0.6KW

main28114-41011i12RJ..RR10,20197808-197911

12V 0.8KW

main28114-41011i2TJ..TR10197610-197910

12V 1.0KW

28117RUBBER(FOR STARTER YOKE)

main28117-25010i12T,2TJ..TR10,11197610-197910

12V 0.8KW

main28117-41012i2TJ..TR10197610-197910

12V 1.0KW

main28117-41012i12RJ..RR10,20197808-197906

12V 0.8KW

main28117-41013i3KJ,4KJ..KR1#197610-197910

12V 0.6KW,0.8KW

main28117-41013i12RJ..RR10,20197906-197911

12V 0.8KW

main28117-41013i4KJ..KR12197910-198210

12V 0.6KW

28118PLATE(FOR STARTER YOKE)

main28118-25010i12T,2TJ..TR10,11197610-197910

12V 0.8KW

main28118-41012i12RJ..RR10,20197808-197906

12V 0.8KW

main28118-41013i3KJ,4KJ..KR1#197610-197910

12V 0.6KW,0.8KW

main28118-41013i12RJ..RR10,20197906-197911

12V 0.8KW

main28118-41013i4KJ..KR12197910-198210

12V 0.6KW

28120YOKE ASSY, STARTER

main28120-15010i12RJ..RR11,21197911-198210

12V 0.8KW

main28120-22011i3KJ..KR10197610-197802

12V 0.6KW

main28120-24020i4KJ..KR11197802-197910

12V 0.8KW

main28120-24030i4KJ..KR11197802-198210

12V 0.6KW

main28120-25011i12T,2TJ..TR10,11197610-197910

12V 0.8KW

main28120-25021i2TJ..TR10197610-197910

12V 1.0KW

main28120-26041i12T..TR11197610-197808

12V 1.0KW

main28120-26070i13TU,2TJ..TR1#197808-198210

12V 1.0KW

main28120-26140i13TU,4KJ,2TJ..KR12,TR1#197910-198210

12V 0.8KW

main28120-36040i3KJ..KR10197610-197911

12V 0.8KW

28121COIL, STARTER FIELD

main28121-22011i3KJ,4KJ..KR1#197610-198210

12V 0.6KW

main28121-25012i12T,2TJ..TR10,11197610-197910

12V 0.8KW

main28121-36040i12RJ,3KJ,4KJ..KR1#,RR10,20197610-197910

12V 0.8KW

main28121-41020i2TJ..TR10197610-197910

12V 1.0KW

28123CORE, STARTER POLE

main28123-10011i3KJ,4KJ..KR1#197610-198210

12V 0.6KW

main28123-40012i12#,2TJ..RR10,20,TR10,11197610-197910

12V 0.8KW

main28123-41020i2TJ..TR10197610-197910

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13020i12RJ,4KJ..KR12,RR11,21197910-198210

12V 0.8KW

main28130-21011i4KJ..KR12197910-198210

12V 0.6KW

main28130-21011i12#,3KJ,4KJ,2TJ..KR1#,RR10,20,TR10,11197610-197910

12V 0.6KW,0.8KW

main28130-26070i13TU..TR15197808-198210

12V 1.0KW

main28130-37010i13TU,2TJ..TR1#197910-198210

12V 0.8KW

main28130-41020i2TJ..TR10197610-197910

12V 1.0KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i12#,3KJ,4KJ,2TJ..KR1#,RR10,20,TR10,11197610-197910

STD,12V 1.0KW

main28131-20010i12#,3KJ,4KJ,2TJ..KR1#,RR10,20,TR10,11197610-197910

STD,12V 0.6KW,0.8KW

main28131-20010i4KJ..KR12197910-198210

STD,12V 0.6KW

main28131-20010i12RJ..RR10,20197910-197911

STD,12V 0.8KW

main90099-10039i2TJ..TR10197610-197910

U/S 0.3,12V 0.6KW,0.8KW

main90099-10039i2TJ..TR10197610-197910

U/S 0.3,12V 1.0KW

main90099-10039i12RJ..RR10,20197910-197911

U/S 0.3,12V 0.8KW

main90099-10039i4KJ..KR12197910-198210

U/S 0.3,12V 0.6KW

main90099-10040i2TJ..TR10197610-197910

U/S 0.5,12V 1.0KW

main90099-10040i2TJ..TR10197610-197910

U/S 0.5,12V 0.6KW,0.8KW

main90099-10040i4KJ..KR12197910-198210

U/S 0.5,12V 0.6KW

main90099-10040i12RJ..RR10,20197910-197911

U/S 0.5,12V 0.8KW

main90099-10134i12RJ..RR11,21197911-198210

12V 0.8KW

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28132-15010i12RJ,13TU,4KJ,2TJ..KR12,RR11,21,TR1#197910-198210

12V 0.8KW

main28166-41011i2TJ..TR10197610-197910

12V 0.6KW,0.8KW

main28166-41011i12#,3KJ,4KJ,2TJ..KR1#,RR10,20,TR10,11197610-197910

12V 1.0KW

main28166-41011i12RJ..RR10,20197910-197911

12V 0.8KW

main28166-41011i4KJ..KR12197910-198210

12V 0.6KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i12RJ,13TU,4KJ,2TJ..KR12,RR11,21,TR1#197910-198210

12V 0.8KW

main28132-40010i2TJ..TR10197610-197910

12V 1.0KW

main28132-41011i12#,3KJ,4KJ,2TJ..KR1#,RR10,20,TR10,11197610-197910

12V 0.6KW,0.8KW

main28132-41011i4KJ..KR12197910-198210

12V 0.6KW

28136PLATE, STARTER LOCK

main28136-15010i12RJ,13TU,4KJ,2TJ..KR12,RR11,21,TR1#197910-198210

12V 0.8KW

main28136-40010i2TJ..TR10197610-197910

12V 1.0KW

main28136-41011i12#,3KJ,4KJ,2TJ..KR1#,RR10,20,TR10,11197610-197910

12V 0.6KW,0.8KW

main28136-41011i4KJ..KR12197910-198210

12V 0.6KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i12RJ,13TU,4KJ,2TJ..KR12,RR11,21,TR1#197910-198210

12V 0.8KW

main28138-40010i2TJ..TR10197610-197910

12V 1.0KW

main28138-41011i12#,3KJ,4KJ,2TJ..KR1#,RR10,20,TR10,11197610-197910

12V 0.6KW,0.8KW

main28138-41011i4KJ..KR12197910-198210

12V 0.6KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i12RJ,13TU,4KJ,2TJ..KR12,RR11,21,TR1#197910-198210

12V 0.8KW

main28140-22011i3KJ,4KJ..KR1#197610-198210

12V 0.6KW

main28140-25010i12T,2TJ..TR10,11197610-197910

12V 0.8KW

main28140-25020i2TJ..TR10197610-198210

12V 1.0KW

main28140-26070i13TU,2TJ..TR1#197808-198210

12V 1.0KW

main28140-34030i12T..TR11197610-197808

12V 1.0KW

main28140-41012i12RJ,3KJ,4KJ..KR1#,RR10,20197610-197910

12V 0.8KW

28142BRUSH, STARTER

main28142-10011i3KJ,4KJ..KR1#197610-198210

12V 0.6KW

main28142-21010i12RJ,3KJ,4KJ..KR1#,RR10,20197610-197910

12V 0.8KW

main28142-25010i12T,2TJ..TR10,11197610-197910

12V 0.8KW

main28142-25020i2TJ..TR10197610-197910

12V 1.0KW

28143SPRING, STARTER BRUSH

main28143-40010i2TJ..TR10197610-197910

12V 0.6KW,0.8KW

main28143-40010i12#,3KJ,4KJ,2TJ..KR1#,RR10,20,TR10,11197610-197910

12V 1.0KW

main28143-40010i4KJ..KR12197910-198210

12V 0.6KW

main28143-40010i12RJ..RR10,20197910-197911

12V 0.8KW

main90099-17112i13TU,2TJ..TR1#197610-198210

12V 1.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15011i12RJ,13TU,4KJ,2TJ..KR12,RR11,21,TR1#197910-198006

12V 0.8KW

main28150-15012i12RJ,13TU,4KJ,2TJ..KR12,RR11,21,TR1#198006-198210

12V 0.8KW

main28150-24060i4KJ..KR11197802-198210

12V 0.6KW

main28150-24061i4KJ..KR11197802-197910

12V 0.8KW

main28150-25010i3KJ..KR10197610-197802

12V 0.6KW

main28150-25010i2TJ..TR10197808-197910

12V 0.8KW,1.0KW

main28150-25032i2TJ..TR10197610-197808

12V 0.8KW,1.0KW

main28150-25032i12T,3KJ..KR10,TR11197610-197808

12V 0.8KW

main28150-26070i13TU..TR15197808-198008

12V 1.0KW

main28150-26100i12T..TR11197610-197808

12V 1.0KW

main28150-27050i13TU,2TJ..TR1#198008-198108

12V 1.0KW

main28150-27051i13TU,2TJ..TR1#198108-198210

12V 1.0KW

main28150-33020i12RJ..RR10,20197808-197906

12V 0.8KW

main28150-34070i12RJ..RR10,20197906-197911

12V 0.8KW

28160ARMATURE ASSY, STARTER

main28160-15010i12RJ,13TU,4KJ,2TJ..KR12,RR11,21,TR1#197910-198210

12V 0.8KW

main28160-22011i3KJ,4KJ..KR1#197610-198210

12V 0.6KW

main28160-22021i4KJ..KR11197610-197910

12V 0.8KW

main28160-26040i12T..TR11197610-197808

12V 1.0KW

main28160-26070i13TU..TR15197808-198210

12V 1.0KW

main28160-40014i12RJ..RR10,20197610-197910

12V 0.8KW

main28160-41020i2TJ..TR10197610-197910

12V 1.0KW

28162SPRING, STARTER BRAKE

main28162-15010i12RJ,13TU,4KJ,2TJ..KR12,RR11,21,TR1#197910-198210

12V 0.8KW

main28162-41011i4KJ..KR12197910-198210

12V 0.6KW

main28162-41011i12#,3KJ,4KJ,2TJ..KR1#,RR10,20,TR10,11197610-197910

12V 0.6KW,0.8KW

main28162-41022i2TJ..TR10197610-197910

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i12#,3KJ,4KJ,2TJ..KR1#,RR10,20,TR10,11197610-197910

12V 0.6KW,0.8KW

main28163-40011i2TJ..TR10197610-197910

12V 1.0KW

main28163-40011i12RJ..RR10,20197910-197911

12V 0.8KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i12#,3KJ,4KJ,2TJ..KR1#,RR10,20,TR10,11197610-198210

12V 0.6KW,0.8KW

main90099-07047i2TJ..TR10197610-197910

12V 1.0KW

main90099-07047i12RJ..RR10,20197910-197911

12V 0.8KW

28246COVER, MAGNET SWITCH

main28246-25010i2TJ..TR10197610-197910

12V 1.0KW

main28246-25010i2TJ..TR10197610-197910

12V 0.6KW,0.8KW

9009900102

main90099-00102

9009900111

main90099-00111

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904269

main90099-04269

9009904884

main90099-04884

9009904889

main90099-04889

9009905129

main90099-05129

9009905809

main90099-05809

9161141035

main91611-41035

9161141040

main91611-41040

9411040800

main94110-40800

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

42 parts on this diagram · 8 diagrams in section
