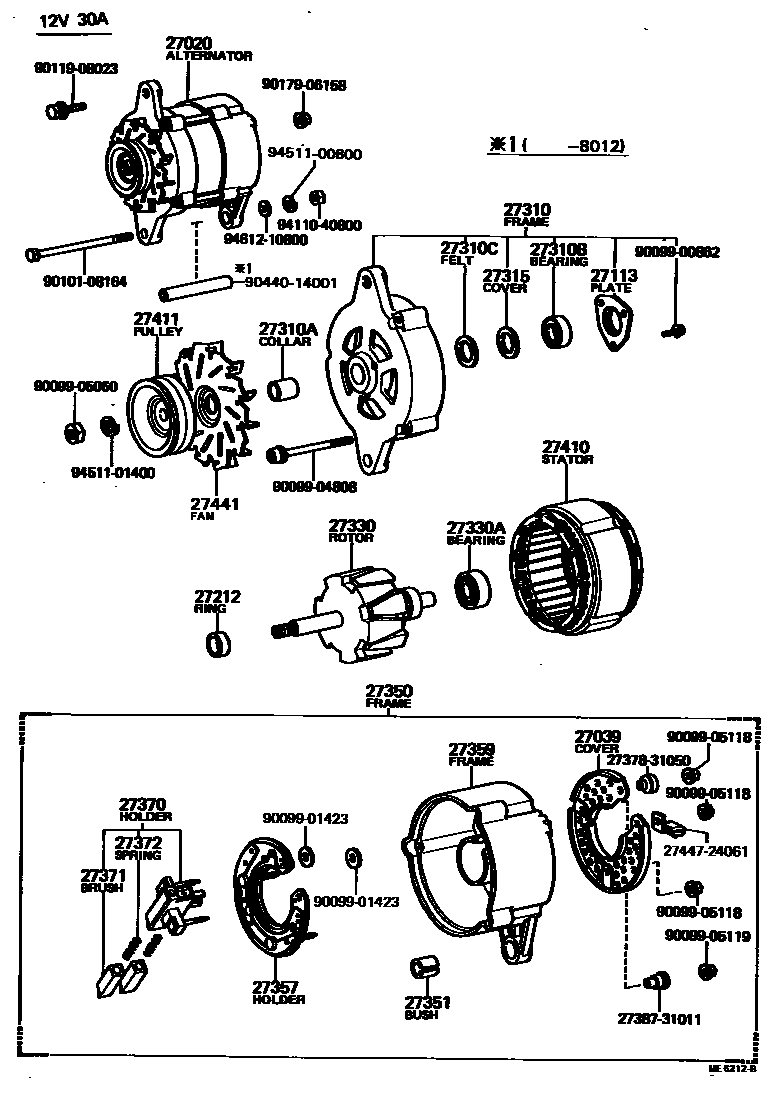

ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1

27020ALTERNATOR ASSY

main27020-12012i3KJ,4KJ..KR1#197610-197910

12V 30A

main27020-13030i4KJ..KR12..DLX,STD197910-198210

12V 30A

main27020-13050i4KJ..KR12197910-198210

12V 40A

main27020-18010i13TU,2TJ..TR1#197908-197910

12V 40A

main27020-18011i2TJ..TR11197911-198210

main27020-31043i2TJ..TR10197610-197708

12V 40A

main27020-31090i12RJ..RR1#,2#197808-198210

main27020-34021i13TU..TR15198101-198210

main27020-36071i12T,13TU,2TJ..TR1#197708-197908

main27020-38120i13TU..TR15197910-198101

27039COVER, ALTERNATOR REAR END

main27039-11014i12RJ,3KJ,4KJ..KR1#,RR1#,2#..DLX,STD197610-198210

12V 30A

main27039-15030i13TU,4KJ,2TJ..KR12,TR1#197908-197911

12V 40A,45A

main27039-18011i4KJ,2TJ..KR12,TR11198101-198210

12V 40A

main27039-26020i2TJ..TR10197610-197708

12V 40A

main27039-36070i12T..TR11197610-197708

12V 40A

main27039-45110i13TU..TR15198101-198210

12V 55A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27113-10012i12RJ,3KJ,4KJ..KR1#,RR10,20197610-197910

12V 30A

main27312-31011i12T,13TU,2TJ..TR1#197610-197908

12V 40A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i12T,13TU,4KJ,2TJ..KR12,TR1#197610-198101

12V 40A,45A

main27412-45070i13TU..TR15198101-198210

12V 55A

main90099-19068i12RJ,3KJ,4KJ..KR1#,RR1#,2#..DLX,STD197610-198210

12V 30A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13050i4KJ..KR12197910-198210

12V 40A

main27310-15060i4KJ..KR12..DLX,STD197910-198210

12V 30A

main27310-18010i13TU,2TJ..TR1#197908-198101

12V 40A,45A

main27310-22012i12RJ..RR11,21197910-198210

12V 30A

main27310-31011i2TJ..TR10197610-197708

12V 40A

main27310-31012i12T,13TU,2TJ..TR1#197708-197908

12V 40A

main27310-34030i12T..TR11197610-197708

12V 40A

main27310-34050i13TU..TR15198101-198210

12V 55A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i12T,13TU,4KJ,2TJ..KR12,TR1#197610-198210

12V 40A,45A,55A

main27412-56040i12RJ,3KJ,4KJ..KR1#,RR1#,2#..DLX,STD197610-198210

12V 30A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10012i12RJ,3KJ,4KJ..KR1#,RR1#,2#..DLX,STD197610-198210

12V 30A

main90099-10013i2TJ..TR10197610-197708

12V 40A

main90099-10109i12T..TR11197610-197708

12V 40A

main90099-10114i13TU,2TJ..TR1#197811-197908

12V 40A

main90099-10125i13TU..TR15198101-198210

12V 55A

main90099-10126i4KJ,2TJ..KR12,TR11198101-198210

12V 40A

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02004i12T,13TU,2TJ..TR1#197610-197908

12V 40A

main90099-02009i12RJ,3KJ,4KJ..KR1#,RR10,20197610-197910

12V 30A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27313-31011i12T,13TU,2TJ..TR1#197610-197908

12V 40A

main27313-39010i12RJ,3KJ,4KJ..KR1#,RR10,20197610-197910

12V 30A

27330ROTOR ASSY, ALTERNATOR

main27330-22012i12RJ,3KJ,4KJ..KR1#,RR1#,2#..DLX,STD197610-198210

12V 30A

main27330-26050i12T..TR11197610-197708

12V 40A

main27330-33010i2TJ..TR10197610-197708

12V 40A

main27330-45020i13TU..TR15197910-198101

12V 45A

main27330-45070i13TU..TR15198101-198210

12V 55A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10103i12T..TR11197610-197708

12V 40A

main90099-10111i13TU,4KJ,2TJ..KR12,TR1#197908-198101

12V 40A,45A

main90099-10116i13TU..TR15198101-198210

12V 55A

main97110-06201i12RJ,3KJ,4KJ..KR1#,RR1#,2#..DLX,STD197708-198210

12V 30A

27350FRAME ASSY, RECTIFIER END

main27350-12012i3KJ,4KJ..KR1#..DLX,STD197610-198210

12V 30A

main27350-26022i2TJ..TR10197610-197708

12V 40A

main27350-31090i12RJ..RR1#,2#197808-198210

12V 30A

main27350-36061i12T,13TU,2TJ..TR1#197711-197908

12V 40A

main27350-36071i12T..TR11197610-197708

12V 40A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-24020i12RJ,3KJ,4KJ..KR1#,RR1#,2#..DLX,STD197610-198210

12V 30A

main27351-25010i12T,2TJ..TR1#197610-197711

12V 40A

main27351-38051i12T,13TU,2TJ..TR1#197711-197908

12V 40A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11014i12RJ,3KJ,4KJ..KR1#,RR1#,2#..DLX,STD197610-198210

12V 30A

main27357-26020i2TJ..TR10197610-197708

12V 40A

main27357-36070i12T,13TU,2TJ..TR1#197708-197908

12V 40A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i13TU,4KJ,2TJ..KR12,TR1#197908-198101

12V 40A,45A

main27359-24100i13TU..TR15198101-198210

12V 55A

main27359-31090i12RJ,3KJ,4KJ..KR1#,RR1#,2#..DLX,STD197610-198210

12V 30A

main27359-36061i12T,13TU,2TJ..TR1#197711-197908

12V 40A

main27359-41041i2TJ..TR10197610-197708

12V 40A

main27359-44032i12T,2TJ..TR1#197708-197711

12V 40A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31090i12RJ,3KJ,4KJ..KR1#,RR1#,2#..DLX,STD197610-198210

12V 30A

main27370-45061i12T,13TU,2TJ..TR1#197610-197908

12V 40A

27371BRUSH, ALTERNATOR

main27371-31011×2i12#,13TU,3KJ,4KJ,2TJ..KR1#,RR1#,2#,TR1#197610-198210

12V 30A,40A,45A,55A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i12#,13TU,3KJ,4KJ,2TJ..KR1#,RR1#,2#,TR1#197610-198210

12V 30A,40A,45A,55A

27410STATOR ASSY, ALTERNATOR

main27410-11014i12RJ,3KJ,4KJ..KR1#,RR1#,2#..DLX,STD197610-198210

12V 30A

main27410-15030i2TJ..TR11; 4KJ..KR12197910-198210

12V 40A

main27410-26020i12T,13TU,2TJ..TR1#197610-197908

12V 40A

main27410-38120i13TU..TR15197910-198101

12V 45A

main27410-45120i13TU..TR15198101-198210

12V 55A

27411PULLEY, ALTERNATOR

main27411-12012i3KJ,4KJ..KR1#197610-197910

12V 30A

main27411-13030i4KJ..KR12..DLX,STD197910-198210

12V 30A

main27411-26111i4KJ..KR12197910-198210

12V 40A

main27411-31042i12T,13TU,2TJ..TR1#197610-198210

12V 40A,45A,55A

main27411-31090i12RJ..RR1#,2#197808-198210

12V 30A

27441FAN, ALTERNATOR

main27441-31090i12RJ,3KJ,4KJ..KR1#,RR1#,2#..DLX,STD197610-198210

12V 30A

main27441-34030i12T,13TU,4KJ,2TJ..KR12,TR1#197610-198210

12V 40A,45A,55A

2737831050INSULATOR, ALTERNATOR, NO.1

main27378-31050

2738731011INSULATOR, TERMINAL

main27387-31011

2744724061CLIP, ALTERNATOR CORD

main27447-24061

9009900862

main90099-00862

9009901423

main90099-01423

9009904808

main90099-04808

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010108164

main90101-08164

9011908023

main90119-08023

9017906158

main90179-06158

9044014001

main90440-14001

9411040800

main94110-40800

9451100800

main94511-00800

9451101400

main94511-01400

9461210800

main94612-10800
