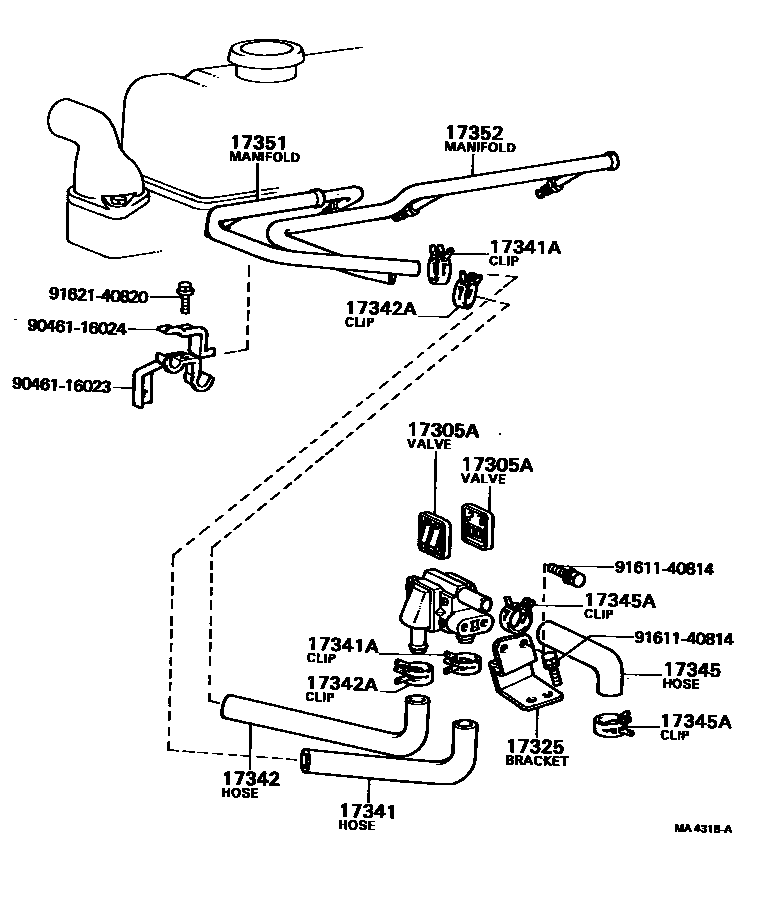

MANIFOLD AIR INJECTION SYSTEM
17305AVALVE SUB-ASSY, REED
17325BRACKET, AIR VALVE
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
sub90467-21006
17345HOSE, NO.5(FOR AIR INJECTION SYSTEM)
17345ACLAMP OR CLIP, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)
sub96134-52600
17351MANIFOLD, AIR INJECTION
17352MANIFOLD, AIR INJECTION, NO.2
9046116023
main90461-16023
9046116024
main90461-16024
9161140814
main91611-40814
9162140820
main91621-40820
14 parts on this diagram · 2 diagrams in section
