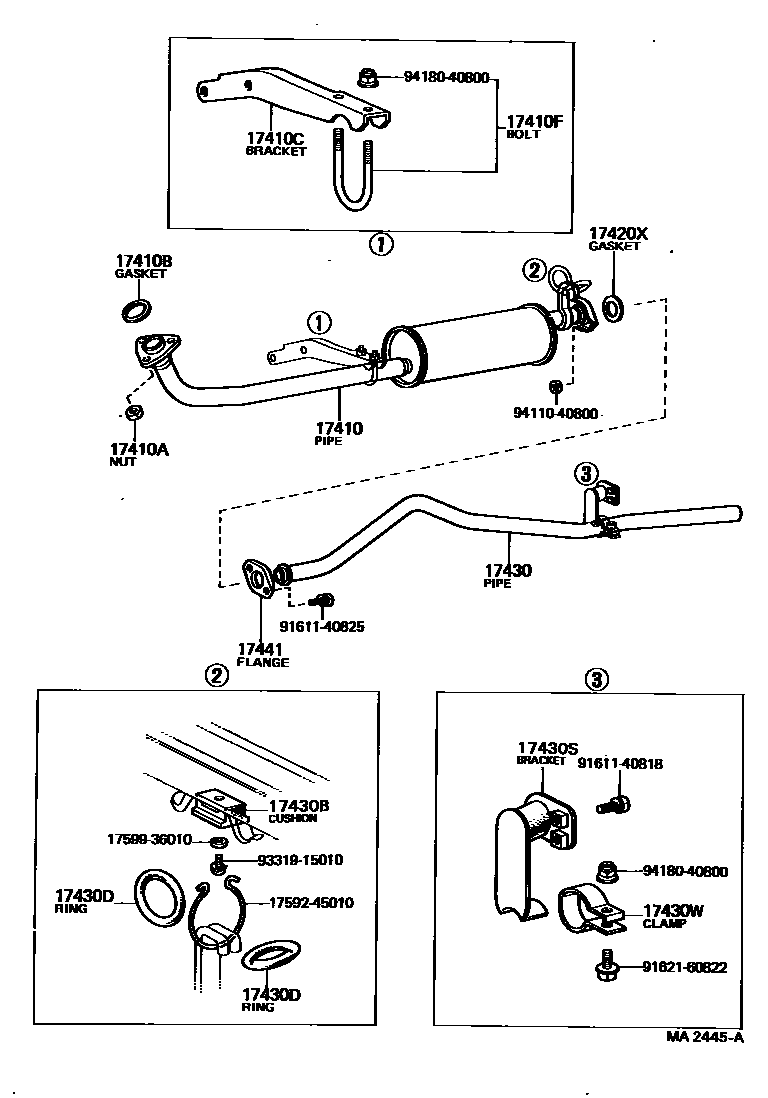

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-24060i3KJ..KR10197610-197802

main17410-24191i4KJ..KR11197802-197910

main17410-24240i4KJ..KR12197910-198210

main17410-26140i2TJ..TR10197610-197910

main17410-26280i2TJ..TR11197910-198210

main17410-27010i12T..TR11197610-197808

main17410-27020i13TU..TR15197808-198210

main17410-31220i12RJ..RR10197808-197911

main17410-31300i12RJ..RR20197808-197911

main17410-31310i12RJ..RR11197911-198210

main17410-31320i12RJ..RR21197911-198210

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90170-10114×2i12RJ..RR1#,2#197808-197912

main90170-10199×3i2TJ..TR10197811-197910

main90179-10010×3i13TU,4KJ..KR11,TR15197811-197910

main90179-10118×2i12RJ..RR11,21197912-198210

17410BGASKET, EXHAUST PIPE

main17451-41020i2TJ..TR10197610-197910

main90917-06001×2i13TU..TR15197808-197910

main90917-06004i12RJ..RR11,21197911-198210

main90917-06005i12T..TR11197610-197808

main90917-06006×2i4KJ..KR11197802-197910

main90917-06012i4KJ..KR12197910-198210

main90917-06025i12RJ..RR10,20197808-197911

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-24023i3KJ..KR10197610-197802

main17571-24100i4KJ..KR11197802-197910

main17571-24141i4KJ..KR12197910-198210

main17571-26100i2TJ..TR10197610-197910

main17571-26170i2TJ..TR11197910-198210

main17571-27010i12T..TR11197610-197808

main17571-27020i13TU..TR15..4H197808-198210

main17571-27040i13TU..TR15..3FC198101-198210

main17571-27050i13TU..TR15..5F198101-198210

main17571-31110i12RJ..RR10,20197808-197911

main17571-31150i12RJ..RR11,21197911-198210

17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)

main90117-08205i12RJ..RR10,20197808-197911

main90118-10081i3KJ..KR10197610-197802

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06001i4KJ..KR12197910-198210

main90917-06004i12#,2TJ..RR1#,2#,TR10,11197610-198210

main90917-06006i3KJ,4KJ..KR1#197610-197910

17430PIPE ASSY, EXHAUST, TAIL

main17405-24111i4KJ..KR12197910-198210

main17405-26040i3KJ,4KJ..KR1#197610-197910

main17405-26060i2TJ..TR10197610-197910

main17430-26581i2TJ..TR11197910-198210

main17430-27010i12T..TR11197610-197808

main17430-27020i13TU..TR15197808-197910

main17430-27022i13TU..TR15197910-198002

main17430-27023i13TU..TR15198002-198101

main17430-27024i13TU..TR15198101-198210

main17430-31220i12RJ..RR10,20197808-197911

main17430-31250i12RJ..RR11,21..T1,T3197911-198210

main17430-31260i12RJ..RR11,21..T2197911-198210

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17591-36010i12RJ..RR10,20197808-198210

main17591-45020i3KJ,4KJ,2TJ..KR1#,TR10197610-197910

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-34172×2i12T,3KJ,2TJ..KR10,TR1#197610-197709

main90301-34207×2i12#,13TU,3KJ,4KJ,2TJ..KR1#,RR1#,2#,TR1#197709-198210

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-27010i12T..TR11197610-197808

main17508-27021i13TU..TR15197808-197910

main17561-23030i3KJ,4KJ,2TJ..KR1#,TR10197610-197910

main17563-26240i13TU,4KJ,2TJ..KR12,TR1#197910-198101

LWR

main17563-27010i13TU..TR15198101-198210

LWR

main17565-31030i12RJ..RR11,21..T1,T3197911-198210

main17577-31030i12RJ..RR11,21..T2197911-198210

17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)

main90461-23078i3KJ,4KJ,2TJ..KR1#,TR10197610-197910

17441FLANGE, EXHAUST PIPE

main17442-22010i3KJ,4KJ..KR1#197610-197910

1759245010STOPPER, EXHAUST PIPE CLAMP

main17592-45010

1759936010HOLDER, EXHAUST PIPE SUPPORT STOPPER

main17599-36010

9161140818

main91611-40818

9161140825

main91611-40825

9162160822

main91621-60822

9331915010

main93319-15010

9411040800

main94110-40800

9418040800

main94180-40800

20 parts on this diagram · 10 diagrams in section
