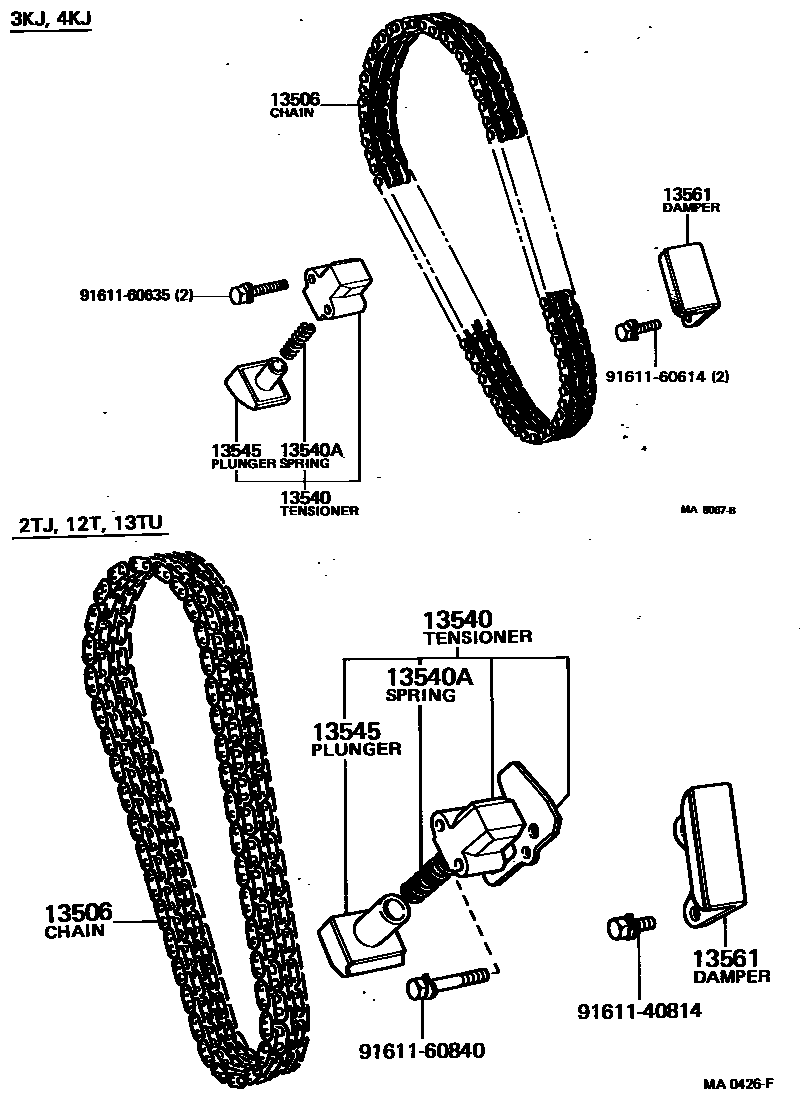

TIMING CHAIN

13506CHAIN SUB-ASSY

main13506-13020i4KJ..KR12198108-198210

main13506-22010i3KJ,4KJ..KR1#197610-198108

main13506-25010i12T,13TU,2TJ..TR1#197610-198210

13540TENSIONER ASSY, CHAIN, NO.1

main13540-13010i4KJ..KR12198108-198210

main13540-22012i3KJ,4KJ..KR1#197610-198108

main13540-25010i12T,13TU,2TJ..TR1#197610-198210

13540ASPRING, COMPRESSION(FOR CHAIN TENSIONER)

main90501-09593i4KJ..KR12198108-198210

main90501-10595i12T,13TU,2TJ..TR1#; 3KJ,4KJ..KR1#197610-198108

13545PLUNGER, CHAIN TENSIONER

main13545-13010i4KJ..KR12198108-198210

main13545-22010i3KJ,4KJ..KR1#197610-198108

main13545-25010i12T,13TU,2TJ..TR1#197610-198210

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-13020i4KJ..KR12198108-198210

main13561-22010i3KJ,4KJ..KR1#197610-198108

main13561-25010i12T,13TU,2TJ..TR1#197610-198210

9161140814

main91611-40814

9161160614

main91611-60614

9161160635

main91611-60635

9161160840

main91611-60840

9 parts on this diagram · 1 diagram in section
