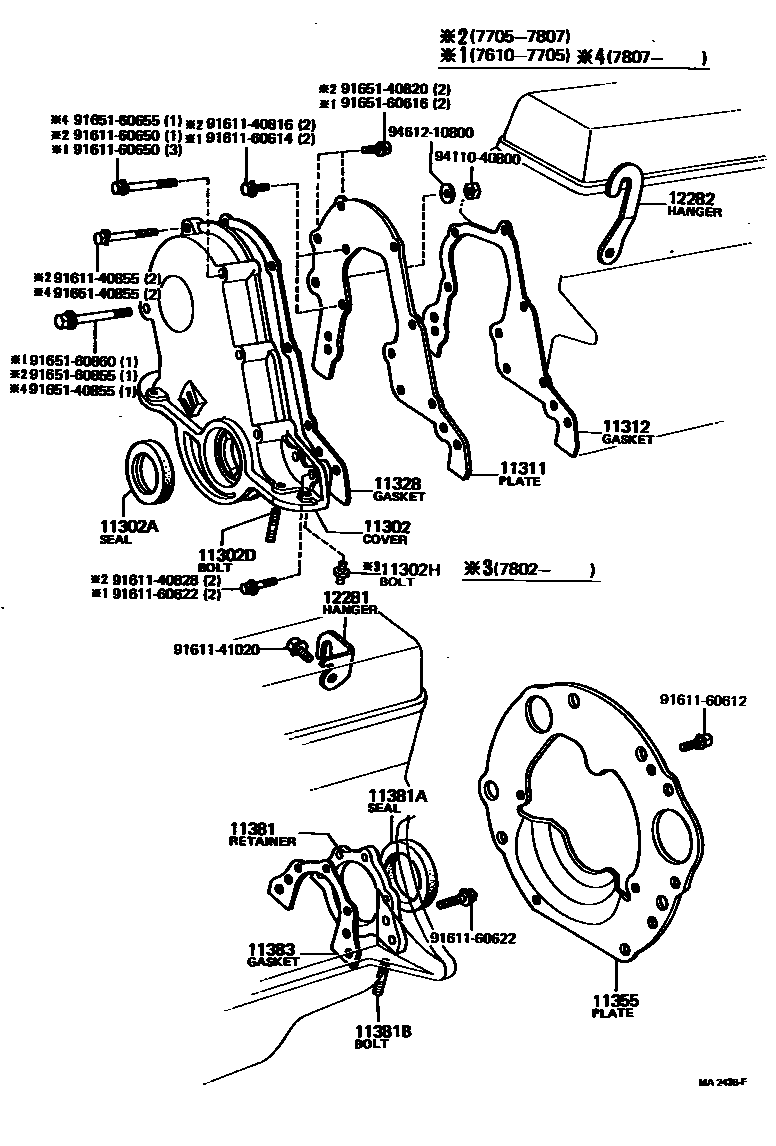

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-13010i3KJ,4KJ..KR1#197705-197901

main11321-13030i4KJ..KR1#197901-198108

main11321-13040i4KJ..KR12198108-198210

main11321-24031i3KJ..KR10197610-197705

main11321-26010i12T,2TJ..TR1#197610-197708

main11321-28010i12T,13TU,2TJ..TR1#197708-198210

main11321-31040i12RJ..RR1#,2#197808-198210

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38002i12T,2TJ..TR1#; 3KJ..KR10197702-197710

HTC3 38.5 58 11

main90311-38013i12RJ..RR1#,2#; 12T,13TU,2TJ..TR1#197710-198210

HTC 38.5 58 11

main90311-38022i4KJ..KR12198205-198210

HTC 38.5 58 8.5

main90311-38111i12T,2TJ..TR1#197610-197702

HTC3 38.5 58 11

11302DBOLT, STUD(FOR TIMING GEAR COVER)

main90116-06012×2i4KJ..KR1#197807-198210

L=23,S=9

main90116-08057i12T,13TU,2TJ..TR1#197610-198210

L=29,S=13&13

main92132-40616×3i3KJ..KR10197610-197802

L=26,S=12&12

main92132-60614×2i4KJ..KR11197802-197807

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-06006×2i4KJ..KR1#197802-198210

L=26.4,S=12&12

11311PLATE, FRONT END

main11311-13010i3KJ,4KJ..KR1#197705-198210

main11311-22011i3KJ..KR10197610-197705

main11311-31010i12RJ..RR1#,2#197808-198210

11312GASKET, FRONT END PLATE

main11312-13010i3KJ,4KJ..KR1#197705-198105

main11312-13011i4KJ..KR12198105-198210

main11312-22010i3KJ..KR10197610-197705

main11312-31010i12RJ..RR1#,2#197808-198210

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-13010i3KJ,4KJ..KR1#197705-198105

main11328-13011i4KJ..KR12198105-198210

main11328-22011i3KJ..KR10197610-197705

main11328-25010i12T,13TU,2TJ..TR1#197610-197904

main11328-25012i13TU,2TJ..TR1#197904-198210

main11328-31010i12RJ..RR1#,2#197808-198210

11355PLATE, REAR END

main11355-13010i3KJ,4KJ..KR1#197708-198102

main11355-13011i4KJ..KR12198102-198210

main11355-24030i3KJ..KR10197610-197708

main11355-25011i12T,2TJ..TR10,11197610-197910

main11355-25012i13TU,2TJ..TR1#..MTM198008-198210

main11355-25023i13TU..TR15..3FC198101-198210

main11355-26020i13TU..TR15197808-197910

11381RETAINER, ENGINE REAR OIL SEAL

main11381-13010i3KJ,4KJ..KR1#197705-198210

main11381-24010i3KJ..KR10197610-197705

main11381-25010i12T,13TU,2TJ..TR1#197610-198210

11381ASEAL, ENGINE REAR OIL

main90311-70001i3KJ,4KJ..KR1#197705-198204

HTC 70 92 12

main90311-70004i4KJ..KR12198204-198210

HTC 70 92 8.5

main90311-70120i3KJ..KR10197610-197705

main90311-75113i12T,13TU,2TJ..TR1#197610-198210

HTC 75 100 13

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06035i3KJ,4KJ..KR1#197610-198210

L=23,S=12&9

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-13010i3KJ,4KJ..KR1#197705-198210

main11383-22010i3KJ..KR10197610-197705

main11383-25010i12T,13TU,2TJ..TR1#197610-198210

12281HANGER, ENGINE, NO.1

main12281-13010i3KJ..KR10197705-197708

main12281-13011i3KJ,4KJ..KR1#197708-198206

main12281-13030i4KJ..KR12198206-198210

main12281-24011i3KJ..KR10197610-197705

main12281-26010i12T,13TU,2TJ..TR1#197610-198210

main12281-31024i12RJ..RR11,21197911-198210

main12281-42010i12RJ..RR10,20197808-197911

12282HANGER, ENGINE, NO.2

main12281-26010i12T,13TU,2TJ..TR1#197610-198210

main12282-22012i3KJ,4KJ..KR1#197610-198210

main12282-31020i12RJ..RR1#,2#197808-198210

9161140816

main91611-40816

9161140828

main91611-40828

9161140855

main91611-40855

9161141020

main91611-41020

9161160612

main91611-60612

9161160614

main91611-60614

9161160622

main91611-60622

9161160650

main91611-60650

9165140820

main91651-40820

9165140855

main91651-40855

9165160616

main91651-60616

9165160655

main91651-60655

9165160855

main91651-60855

9165160860

main91651-60860

9411040800

main94110-40800

9461210800

main94612-10800

30 parts on this diagram · 3 diagrams in section
