SHORT BLOCK ASSEMBLY

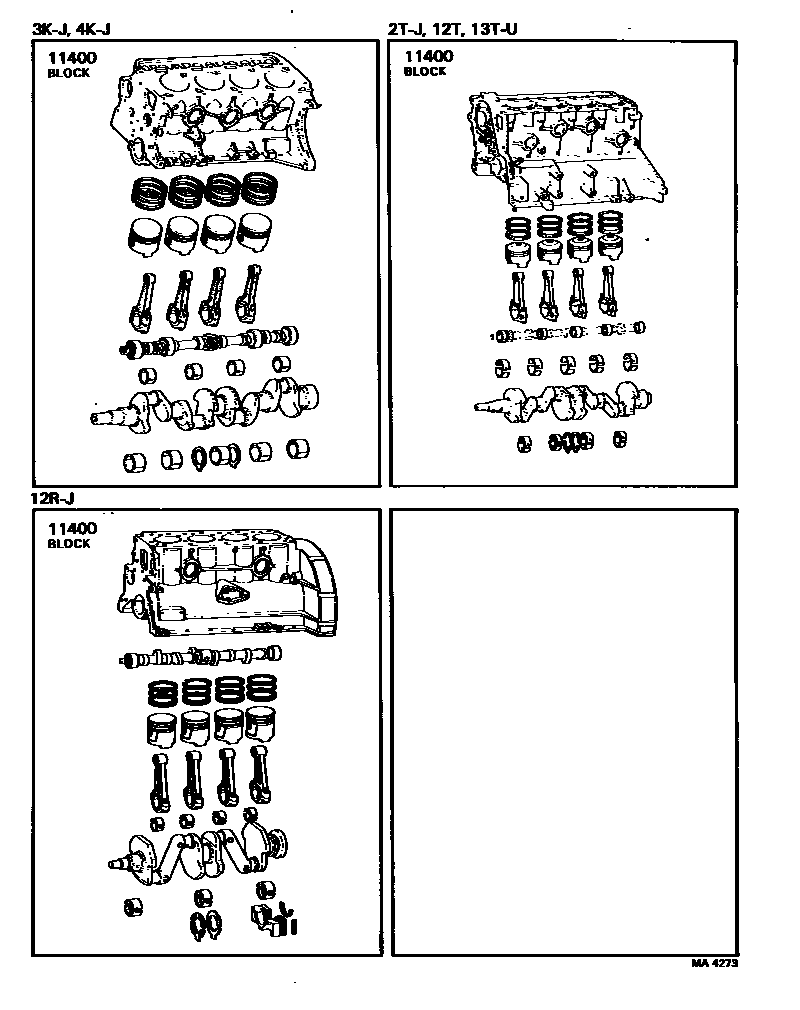

Parts diagram

11400BLOCK ASSY, SHORT

main11400-13010i197802-198210

main11400-18010i197808-197910

main11400-18011i197910-198207

main11400-18012i198207-198210

main11400-24020i197610-197705

main11400-24021i197705-197802

main11400-26040i197610-197708

main11400-26041i197708-197804

main11400-26052i197910-198207

main11400-26053i198207-198210

main11400-26061i197804-197910

main11400-27031i197610-197708

main11400-27032i197708-197808

main11400-31030i197808-198210

1 parts on this diagram · 1 diagram in section
