MIRROR

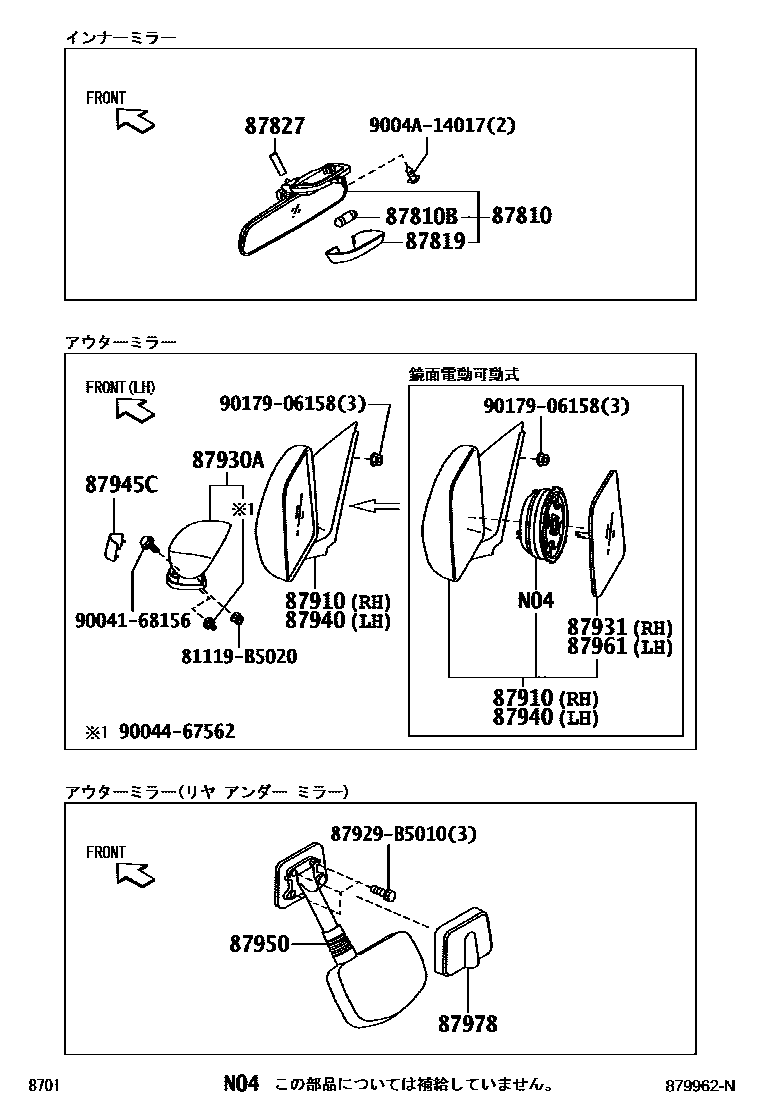

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-B5040-E0i202007

-

main87810-BZ150i200801-202007

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90049-51157i202007-202503

main9004B-81003i200801-202007

87819LENS, INNER RR VIEW MIRROR ROOM LAMP

main87834-B5010i202007-202503

main87834-BZ020i200801-202007

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-BZ030i200801-202007

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-BZ211i202007

main87910-BZ220i200801-201312

main87910-BZ221i201401-201906

main87910-BZ222i202007

main87910-BZ310i200801-201402

main87910-BZ331i202007-202503

main87910-BZ870i201403-201907

87930AMIRROR ASSY, OUTER UNDER VIEW

main87930-BZ010i202007-202503

87931OUTER MIRROR, RH

main87931-BZ021i202007-202503

main87931-BZ080i200801-201312

main87931-BZ081i202007

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-BZ211i202007

main87940-BZ220i200801-201312

main87940-BZ221i201401-201906

main87940-BZ222i202007

main87940-BZ270i200801-201402

main87940-BZ291i202007-202503

main87940-BZ840i201403-201907

87945CCOVER, OUTER MIRROR, LOWER LH

main87973-BZ010i202007-202503

87950MIRROR ASSY, OUTER UNDER REAR VIEW

main87950-BZ010i200911-201003

main87950-BZ020i201003-201102

main87950-BZ021i202007

87961MIRROR OUTER, LH

main87961-BZ021i202007-202503

main87961-BZ080i200801-201312

main87961-BZ081i202007

87978COVER, OUTER UNDER REAR VIEW MIRROR, REAR

main87973-BZ020i202007-202503

81119B5020SCREW, HEADLAMP

main81119-B5020

87929B5010RETAINER, OUTER REAR VIEW MIRROR, LH

main87929-B5010

9004168156

main90041-68156

9004467562

main90044-67562

9004A14017

main9004A-14017

9017906158

main90179-06158

18 parts on this diagram · 2 diagrams in section
