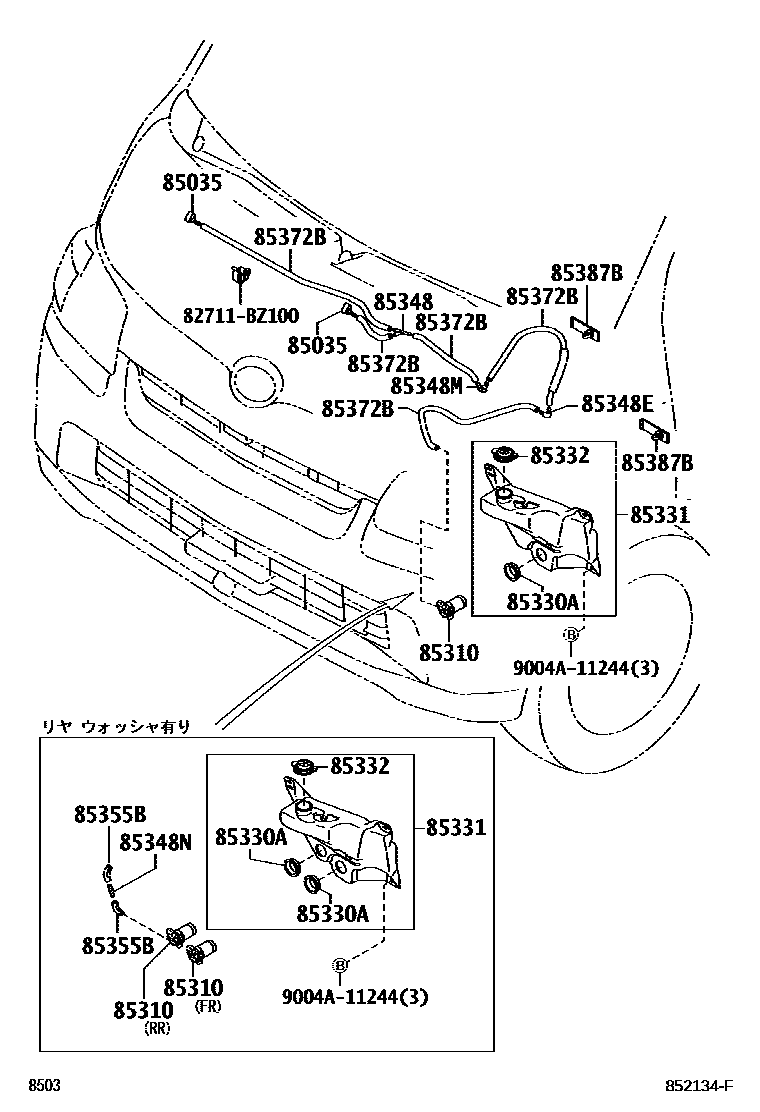

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-BZ080×2iS403,413..PIC;S403,413..VAN..4FC202007

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-BZ010supersedes 85330-BZ060iS403..5F..GL;S413..VAN..5F; S403..VAN..5F..DX202007-202503

main85330-BZ020iS402..GL;S412..VAN; S402..VAN..DX; S412..PIC;S402..DX,DXED200801-201311

main85330-BZ060iS402..GL;S412..VAN; S402..VAN..DX; S412..PIC;S402..DX,DXED201311-202007

85330ABUSH, WINDSHIELD WASHER JAR

main85373-97202iS403,413..PIC;S403..VAN..4FC..DX; S403..4FC..GL;S413..VAN..4FC; S403..VAN..4FC..DX202007

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-BZ080iS412..PIC;S402..DX,DXED200801-202007

main85315-BZ090supersedes 85315-BZ080iS403..4FC..GL;S413..VAN..4FC; S403..VAN..4FC..DX202007

85332CAP, WINDSHIELD WASHER JAR

main85332-87204iS403,413..VAN..5F202007-202503

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-87201iS403,413..VAN..5F202007-202503

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85349-87602iS403,413..VAN..5F202007-202503

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85279-BZ010iS403,413..VAN..5F202007-202503

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-87201iS403..5F..GL;S413..VAN..5F; S403..VAN..5F..DX202007-202503

85355BJOINT, ELBOW NO.2

main85355-87503×2iS403..5F..GL;S413..VAN..5F; S403..VAN..5F..DX202007-202503

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main9004B-44007×5iS403,413..VAN..5F202007-202503

85387BCLAMP, WASHER, NO.3

main82711-52090×2iS403,413..VAN..5F202007-202503

82711BZ100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-BZ100

9004A11244

main9004A-11244

14 parts on this diagram · 1 diagram in section
