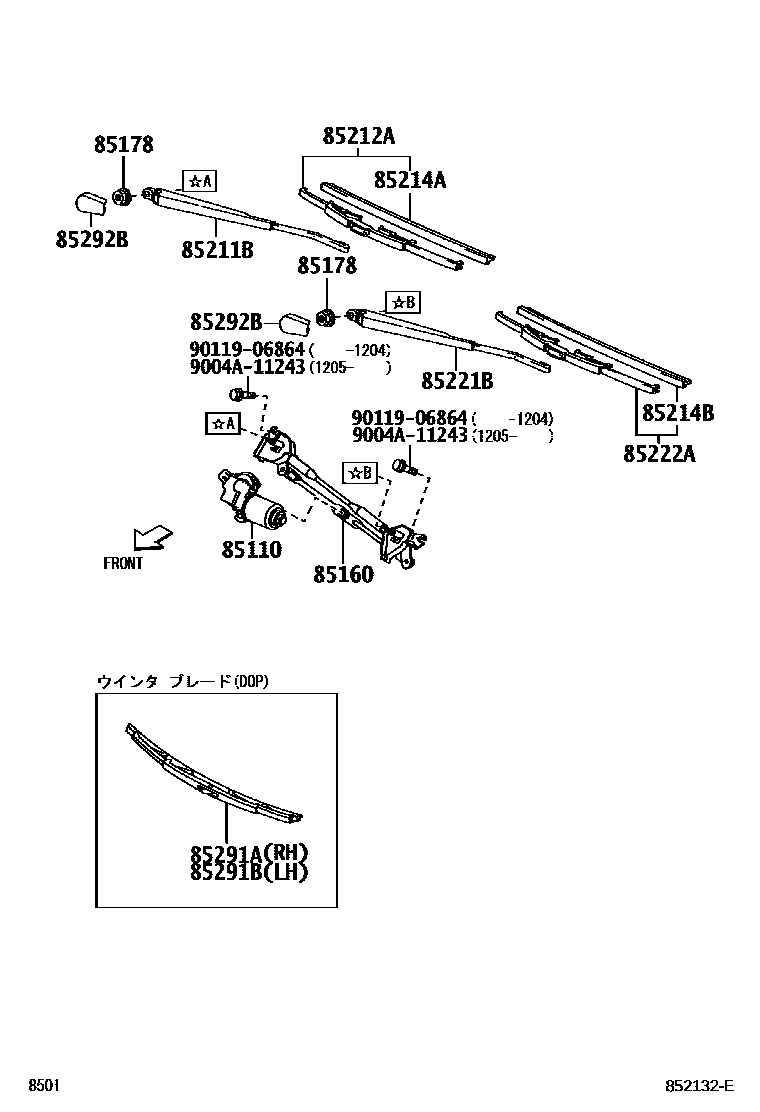

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-BZ091iS403..PIC;S403..VAN..4FC202007

main85110-BZ100supersedes 85110-BZ091iS412201006-201403

main85110-BZ101supersedes 85110-BZ091iS403..PIC..CBU;S403..VAN..4FC; S413..PIC;S413..VAN..4FC202007

85160LINK ASSY, WINDSHIELD WIPER

main85150-BZ090iS403..PIC;S403..VAN..4FC202007

main85150-BZ120supersedes 85150-BZ090iS403..PIC..CBU;S403..VAN..4FC; S413..PIC;S413..VAN..4FC202007

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205×2iS403,413202007-202209

main90041-79379×2iS403,413..PIC;S403,413..VAN..4FC202209

85211BARM, FRONT WIPER, RH

main85211-BZ110iS403,413..PIC;S403,413..VAN..4FC202007

85212ABLADE, FR WIPER, RH

main85212-BZ090iS403,413..VAN..5F202007-202503

85214ARUBBER, WIPER, RH

main85214-BZ140iS403,413..VAN..5F202007-202503

85214BRUBBER, WIPER, LH

main85214-BZ140iS403,413..VAN..5F202007-202503

85221BARM, FRONT WIPER, LH

main85221-BZ100iS402,412200801-202007

85222ABLADE, FR WIPER, LH

main85222-BZ090iS403,413..VAN..5F202007-202503

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-33050iS403,413..VAN..5F202007-202503

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33050iS403,413..VAN..5F202007-202503

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020×2iS402,412200801-201607

main85292-BZ110×2iS403,413..VAN..5F202007-202503

9004A11243

main9004A-11243

9011906864

main90119-06864

14 parts on this diagram · 1 diagram in section
