REAR VENTILATOR & ROOF VENTILATOR

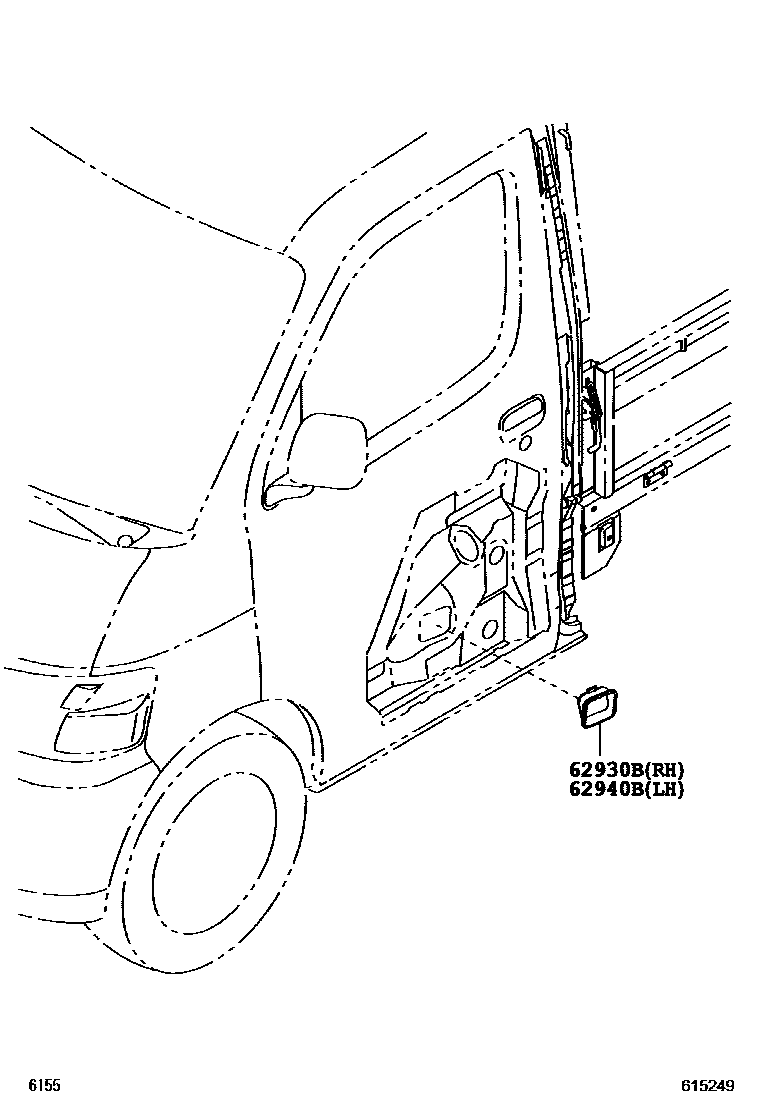

Parts diagram

62930BDUCT ASSY, QUARTER VENT, RH

main62930-BZ030i200801-202007

main62930-BZ040i202201

62940BDUCT ASSY, QUARTER VENT, LH

main62930-BZ030i202007-202112

main62930-BZ040i202201

2 parts on this diagram · 2 diagrams in section
